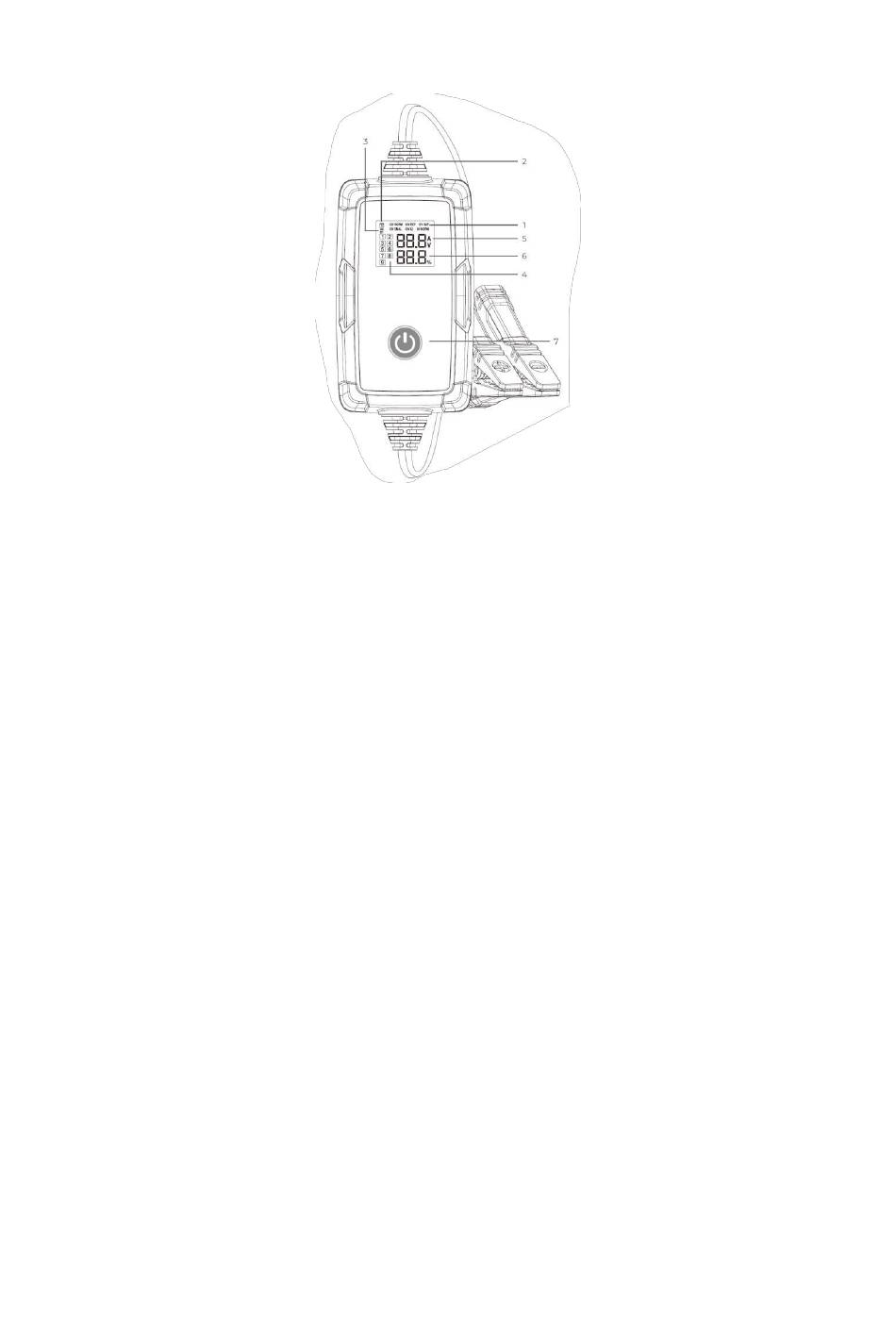

Product Overview
1. 6 Battery Charging Modes: Under the standalone mode, TB6000Pro provides
with you 6 different modes 12V/6A Norm, 12V/1A Repair, 12V/6A Supply, 12V/3A
Small, 12V/6A Lithium-ion battery, 6V/3A Norm. Once the charger is connected to
the phone via BT, you can customize the charging process and parameters.
2. Charging Status Indicator: Once the adapter is plugged into the socket and
you've confirmed the charging mode, the indicator will light up and remain still,
otherwise it remains off.
Please unplug the adapter before conducting the battery tests and make sure the
clamps are properly connected to the battery terminals.
3. Bluetooth Connection Status Indicator: If the TB6000Pro is under standalone
mode and not paired to any phones, the Bluetooth indicator will keep flashing.
Once it is paired, the indicator remains still.
4. Charging Steps Indicator: It shows you exactly which step you are in among the
9 charging steps.
5. Real-time Charging Voltage and Current: It presents you with the real-time
charging current and voltage. The parameter refreshes every 2 seconds. When the
following errors occur, it will display the corresponding error code:
o Er1: Short circuit or reverse polarity.
o Er2: Overheat.
o Er3: Charging timeout.
o Er4: Battery is damaged, please switch to 12V Supply mode to attempt to
recover the battery.
o Er5: Wrong mode, please select 12V charging mode.
6. Battery Charging Progress.
7. Mode Switch Button: Under the standalone mode, you can press the button to
switch the charging modes. The pre-selected mode will keep flashing. Press twice
in a row to start charging.
