e Top view

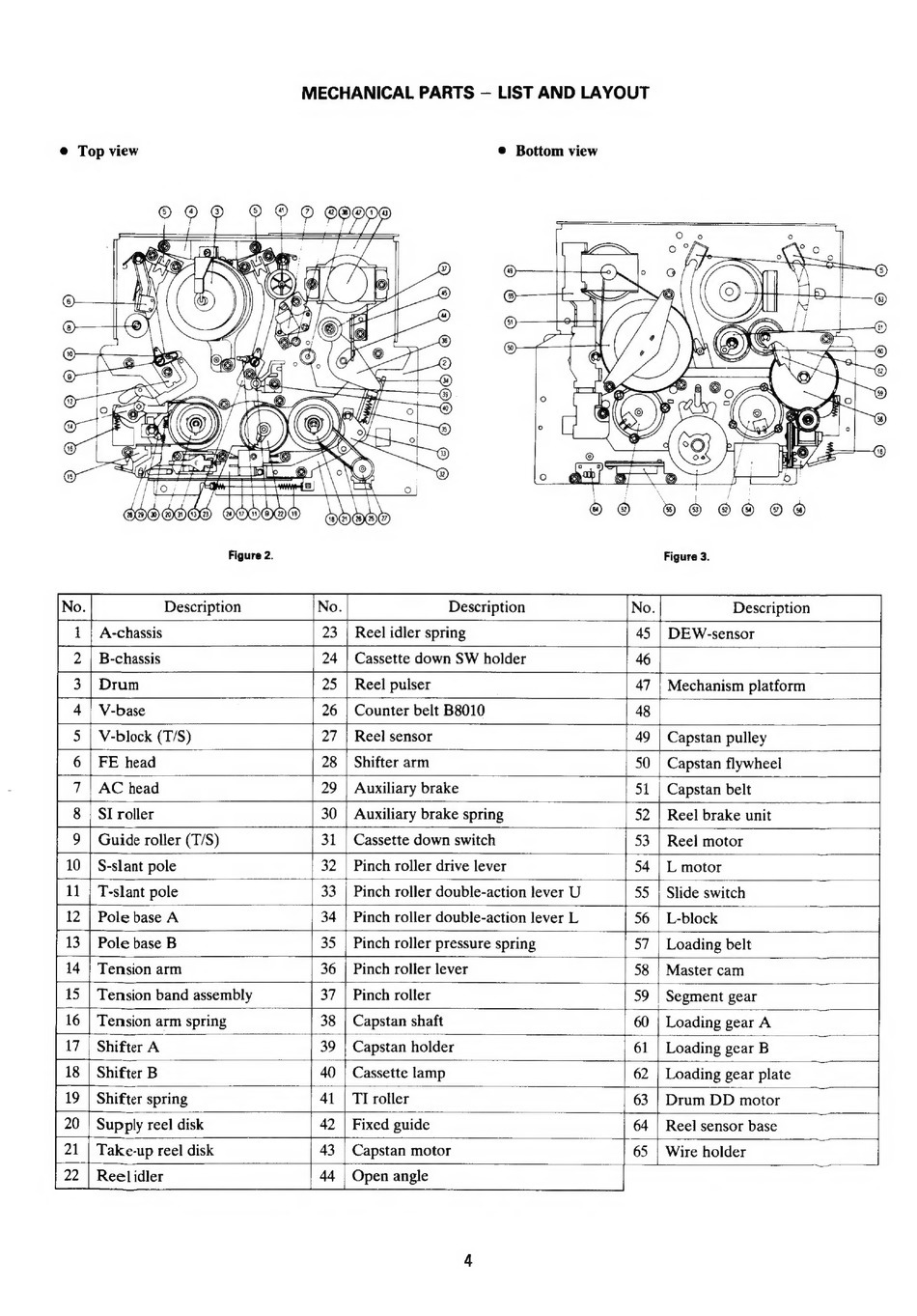

MECHANICAL PARTS — LIST AND LAYOUT
© Bottom view
OPP
YD O OGODB
+
—
=
=
=
4
>
@
©)
ju)
®
_
©
@
mes
Ne aaa
HO) @@Ns
@
es
7 ee
pe
a" MGS
eee [eh
— @ r \ \ :
9
are
46666645 065606
dadeor
Figure 2.
Figure 3.
No.
Description
No.
Description
No.
Description
1 | A-chassis
23 | Reel idler spring
45 | DEW-sensor
2 | B-chassis
24 | Cassette down SW holder
46
3 | Drum
25 | Reel pulser
47 | Mechanism platform
4 | V-base
| 26 | Counter belt B8010
48
5 | V-block (T/S)
27 | Reel sensor
49 | Capstan pulley
6 | FE head
28 | Shifter arm
50 | Capstan flywheel
7 | AC head
29 | Auxiliary brake
51 | Capstan belt
8 | SI roller
30 | Auxiliary brake spring
52 | Reel brake unit
9 | Guide roller (T/S)
31 | Cassette down switch
53 | Reel motor
10 | S-slant pole
32 | Pinch roller drive lever
54 | L motor
11 | T-slant pole
33 | Pinch roller double-action lever U
55 | Slide switch
12 [ Pole base A
34 | Pinch roller double-action lever L
| 56 | L-block
13 | Pole base B
35 | Pinch roller pressure spring
57 | Loading belt
14 | Tension arm
36 | Pinch roller lever
58 | Master cam
15 | Tension band assembly
| 37 | Pinch roller
59 | Segment gear
16 | Tension arm spring
38 | Capstan shaft
60 | Loading gear A
17 | Shifter A
39 | Capstan holder
61 | Loading gear B
18 | Shifter B
40 | Cassette lamp
62 | Loading gear plate
19 | Shifter spring
' 41 | TI roller
63 | Drum DD motor
20 | Supply reel disk
42 | Fixed guide
64 | Reel sensor base
21 | Take-up reel disk
43
Capstan motor
T 65 | Wire holder
22 | Reelidler
44 | Open angle
