REMOVAL OF MAIN PARTS
Remove four screws from
The top panel.
(2)
Remove the cover of the
channel memory adjusting
box.
Remove two screws from the
circuit board and lift the board.
Remove three screws from
the front panel.
Remove three screws from
the bottom panel.

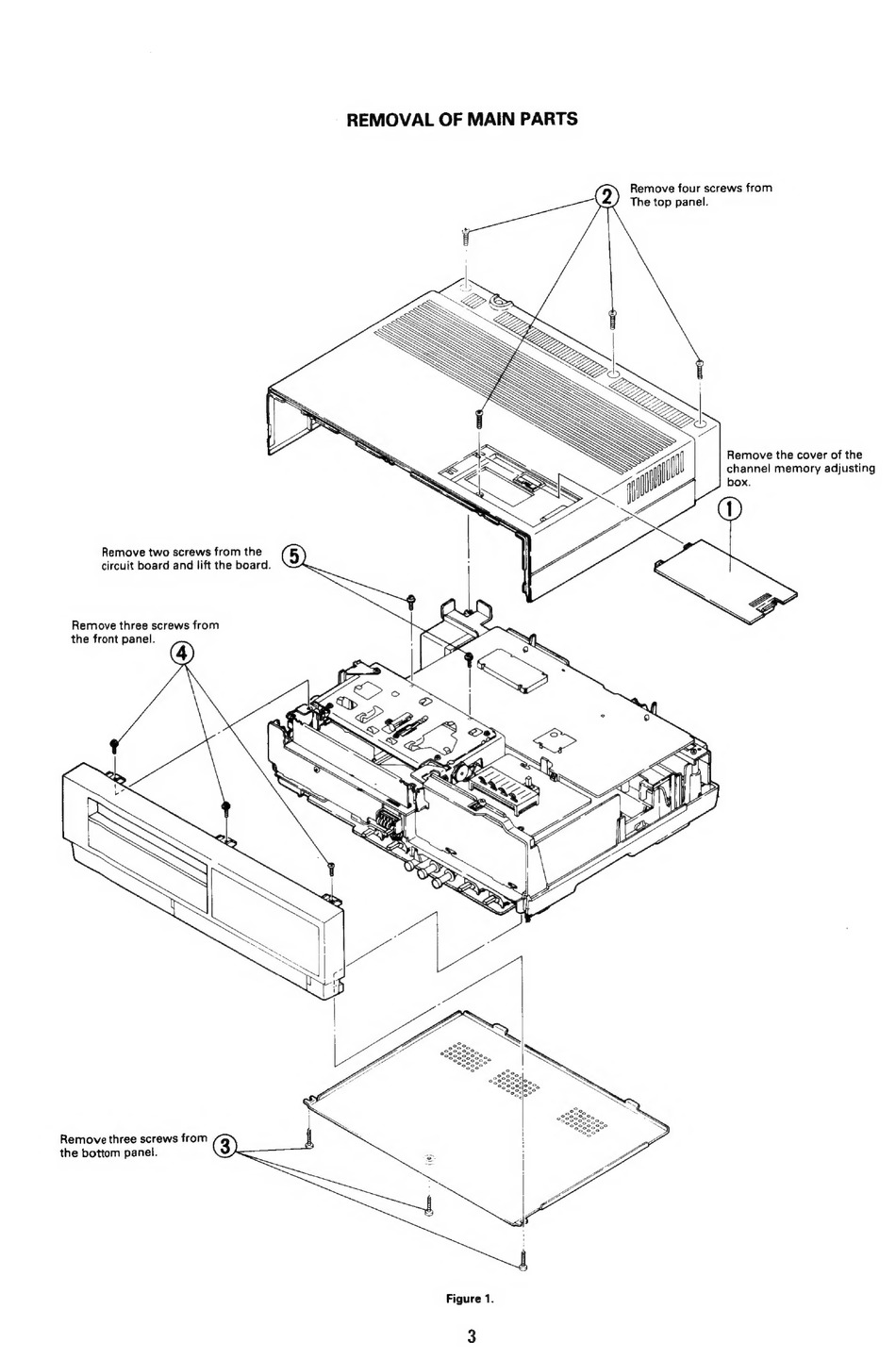

Figure 1.
