stabo SH 7000 Bedienungsanleitung Seite 7

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Channel
selector.

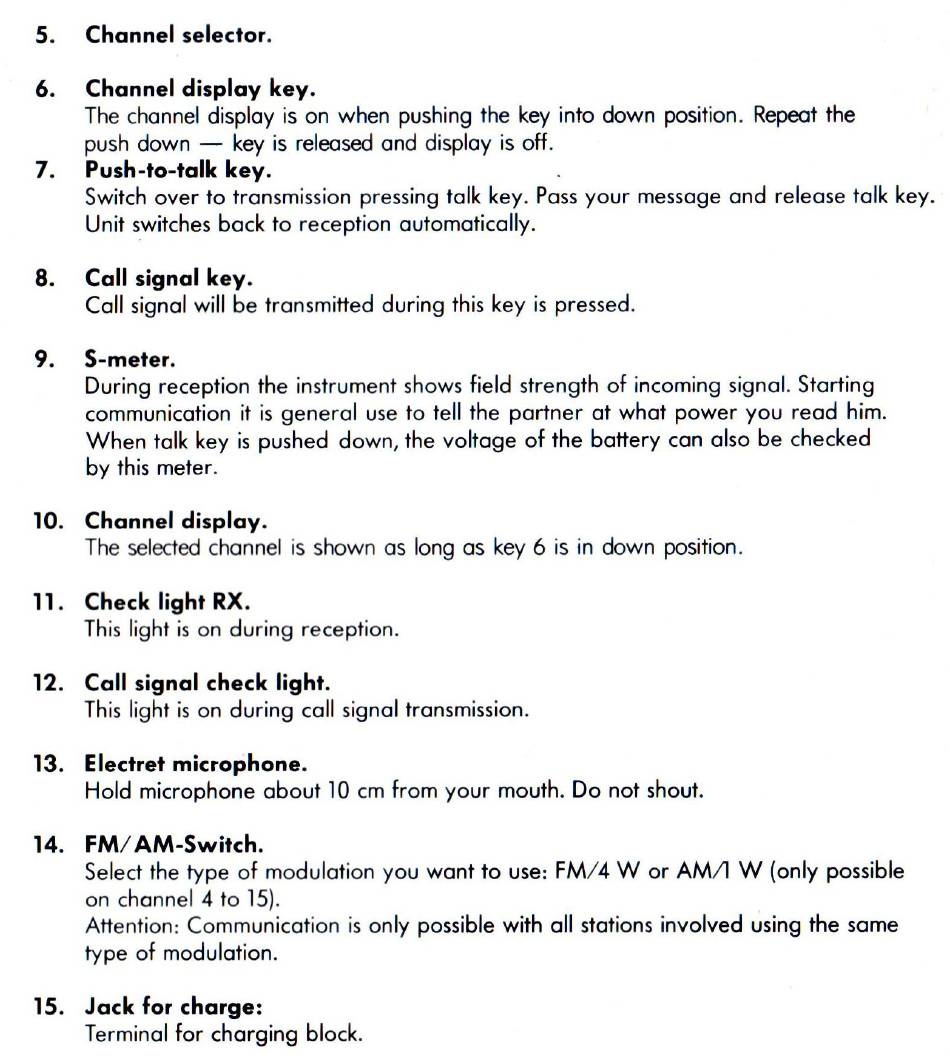

5.
Channel display key.
6.
The channeldisplay is on when pushing the key into down position. Repeatthe
push down — key is releasedand display is off.
7.
Push-to-talk
Switch over to transmission pressing talk key. Passyour messageand release talk key.
Unit switches back to reception automatically.
Call signal key.
8.
Call signalwill be transmittedduring this key is pressed.
9.
S-meter.
Duringreceptionthe instrumentshowsfield strengthof incomingsignal.Starting
communication it is general use to tell the partner at what power you read him.
When talk key is pusheddown, the voltage of the battery can also be checked
by this meter.
10.
Channel display.
The selectedchannel is shown as long as key 6 is in down position.
Check light RX.
This light is on during reception.
Call signal check light.
12.
This light is on during call signal transmission.
Electret microphone.
13.
Hold microphone about 10 cm from your mouth. Do not shout.
14.
FM/
AM-Switch.
Selectthe type of modulation you want to use: FM/4 W or AM/I W (only possible
on channel 4 to 15).
Attention: Communication is only possible with all stations involved using the same
type of modulation.
Jack for charge:
15.
Terminal for charging block.
key.
