Condensate pump – AIR1-KP
electricians. Operating, simple maintenance and cleaning work on the unit (e.g. filter re-
placement, maintenance of the condensate drain) must only be carried out by instructed
end user
2.1 Technical data
AIR1-KP XC 500-1400
Flow rate max.
Suction head max.
Discharge head max.
Power supply
Voltage
Operating temperature
Water temperature max.
Protection category
AIR1-KP XC 2200-3200
Flow rate max.
Suction head max.
Discharge head max.
Power supply
Operating temperature
Voltage
Water temperature max.
Protection category

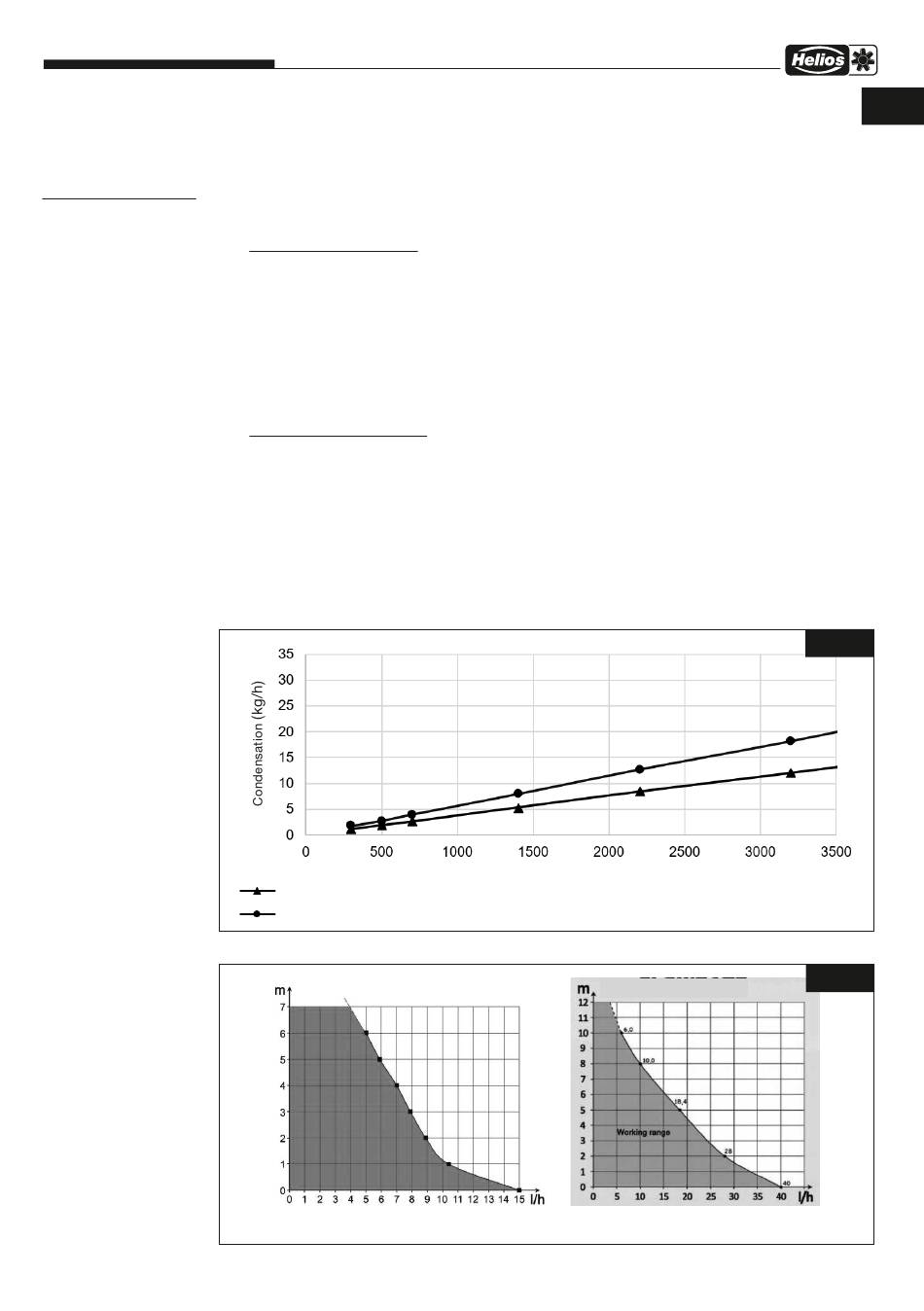

Determination of the condensate quantity
A: Normal condensation (80 % efficiency, 25 °C/50 RH spatial conditions inside, 0 °C spatial conditions outside)
B: High condensation (85 % efficiency, 25 °C/60 RH spatial conditions inside, -5 °C spatial conditions outside)
Determination of the discharge head
Flow rate
for AIR1 XC 500, 700, 1000, 1400
15 l/h
2 m
10 m
19 W
220-240 V 50/60 Hz
5-45 °C
35 °C
IP64
40 l/h
2 m
10 m
16 W
5-45 °C
220-240 V 50/60 Hz
35 °C
IP20
Air flow (m³/h)
Flow rate
for AIR1 XC 2200, 3200
2
EN
Fig.1
Fig.2
