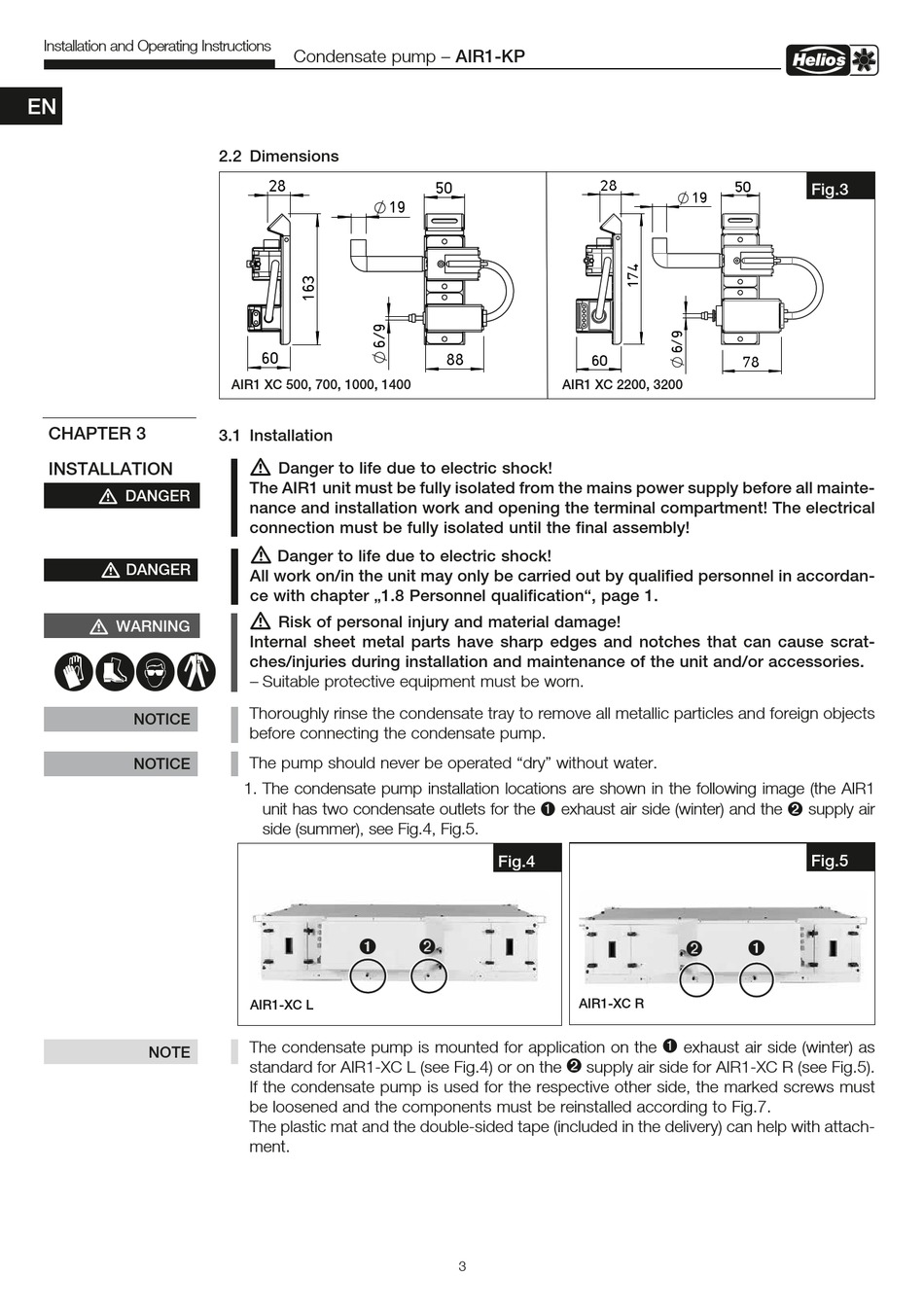

Helios AIR1-KP Montage- Und Betriebsvorschrift Seite 10

Installation and Operating Instructions
EN
CHAPTER 3
INSTALLATION
m
DANGER
m
DANGER
m
WARNING
nmlr
NOTICE
NOTICE
NOTE
Condensate pump – AIR1-KP
2.2 Dimensions
28
19
60
AIR1 XC 500, 700, 1000, 1400
3.1 Installation
m
Danger to life due to electric shock!
The AIR1 unit must be fully isolated from the mains power supply before all mainte-
nance and installation work and opening the terminal compartment! The electrical
connection must be fully isolated until the final assembly!
m
Danger to life due to electric shock!
All work on/in the unit may only be carried out by qualified personnel in accordan-
ce with chapter „1.8 Personnel qualification", page 1.
m
Risk of personal injury and material damage!
Internal sheet metal parts have sharp edges and notches that can cause scrat-
ches/injuries during installation and maintenance of the unit and/or accessories.
– Suitable protective equipment must be worn.
Thoroughly rinse the condensate tray to remove all metallic particles and foreign objects
before connecting the condensate pump.
The pump should never be operated "dry" without water.
1. The condensate pump installation locations are shown in the following image (the AIR1
unit has two condensate outlets for the
side (summer), see Fig.4, Fig.5.
ò
AIR1-XC L
The condensate pump is mounted for application on the
standard for AIR1-XC L (see Fig.4) or on the
If the condensate pump is used for the respective other side, the marked screws must
be loosened and the components must be reinstalled according to Fig.7.
The plastic mat and the double-sided tape (included in the delivery) can help with attach-
ment.
50
88
60
AIR1 XC 2200, 3200
exhaust air side (winter) and the
ò
Fig.4
ù
AIR1-XC R
ù
supply air side for AIR1-XC R (see Fig.5).
3
28
50
19
78
ò
ù
ò exhaust air side (winter) as
Fig.3
supply air
ù
Fig.5
