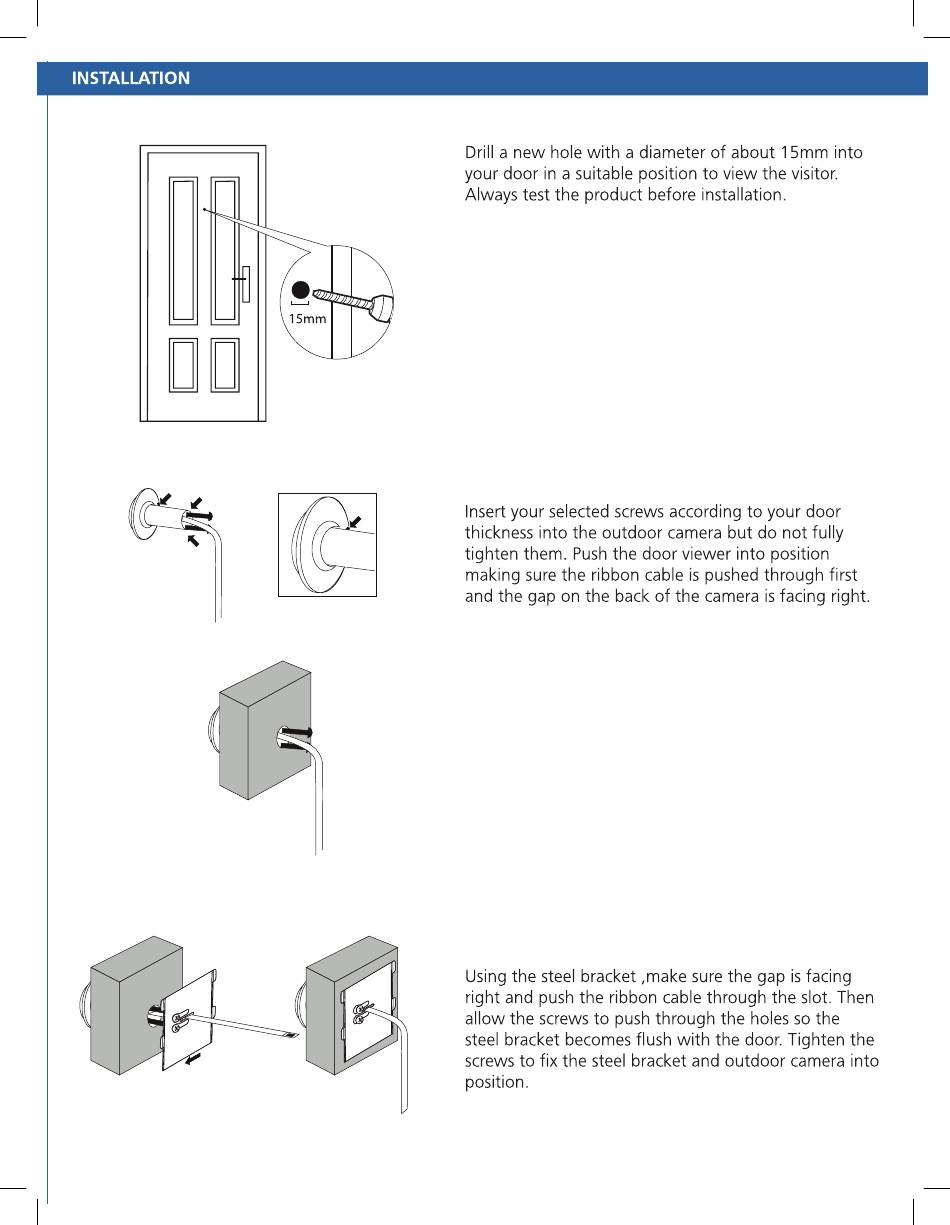

INSTALLATION
Drill a new
your door in a suitable position to view the visitor.
Always test the product before installation.
15mm
Insert your selected screws according to your door
thickness into the outdoor camera but do not fully
tighten them. Push the door viewer into position
making sure the ribbon cable is pushed through first
and the gap on the back of the camera is facing right.
Using the steel bracket ,make sure the gap is facing
right and push the ribbon cable through the slot. Then
allow the screws to push through the holes so the
steel bracket becomes flush with the door. Tighten the
screws to fix the steel bracket
position.
hole with a diameter of about
and outdoor
15mm into
camera into
