ST-307H
(E)
FOR
A COMPLETE
DESCRIPTION
OF THE
OPERATION
OF THIS UNIT,
PLEASE
REFER TO THE OPERATION
MANUAL.

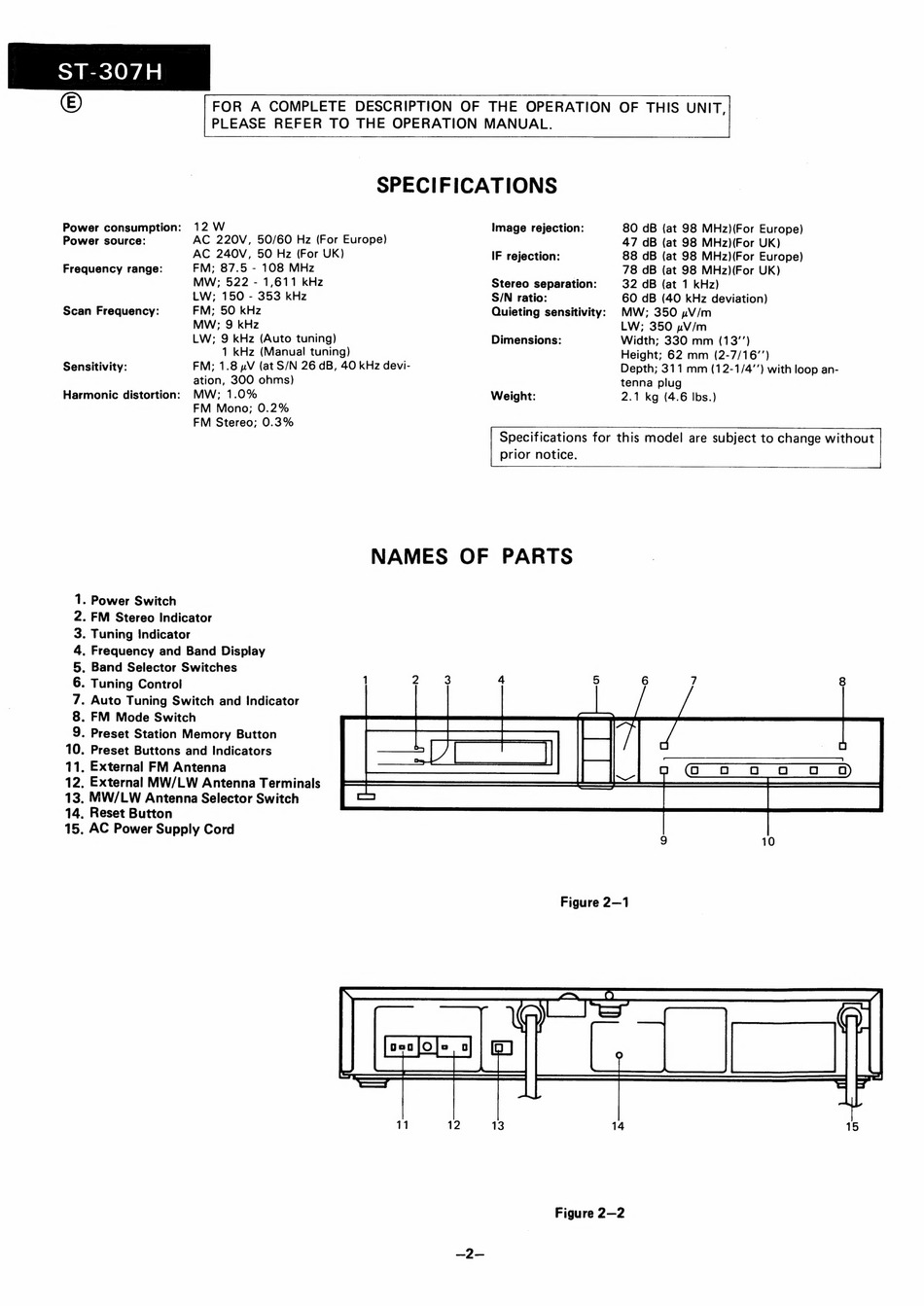

SPECIFICATIONS
Power consumption:
12 W
image rejection:
80 dB (at 98 MHz)(For Europe)
Power source:
AC 220V,
50/60 Hz (For Europe)
47 dB (at 98 MHz)(For UK)
AC 240V, 50 Hz (For UK)
IF rejection:
88 dB (at 98 MHz)(For Europe)
Frequency range:
FM; 87.5 - 108 MHz
78 dB (at 98 MHz) (For UK)
LW; 150 - 353 kHz
S/N ratio:
60 dB (40 kHz deviation)
Scan Frequency:
FM; 50 kHz
Quieting sensitivity:
MW; 350 pV/m
MW; 9 kHz
LW; 350 »nV/m
LW; 9 kHz (Auto tuning)
Dimensions:
Width; 330 mm
(13'')
Sensitivity:
FM; 1.8 pV (at S/N 26 dB, 40 kHz devi-
Depth; 311 mm (12-1/4'') with loop an-
ation, 300 ohms)
tenna plug
Harmonic distortion:
MW;
1.0%
Weight:
2.1 kg (4.6 Ibs.)
FM Mono; 0.2%
FM Stereo; 0.3%
Specifications for this model are subject to change without
prior notice.
NAMES
OF PARTS
- Power Switch
. FM Stereo Indicator
. Tuning Indicator
. Frequency and Band Display
. Band Selector Switches
- Tuning Control
. Auto Tuning Switch and Indicator
. FM Mode Switch
- Preset Station Memory Button
10. Preset Buttons and Indicators
11, External FM Antenna
12, External MW/LW Antenna Terminals
13. MW/LW Antenna Selector Switch
14, Reset Button
15. AC Power Supply Cord
SAN
OOAWND
—
Figure 2—1
Figure 2—2
