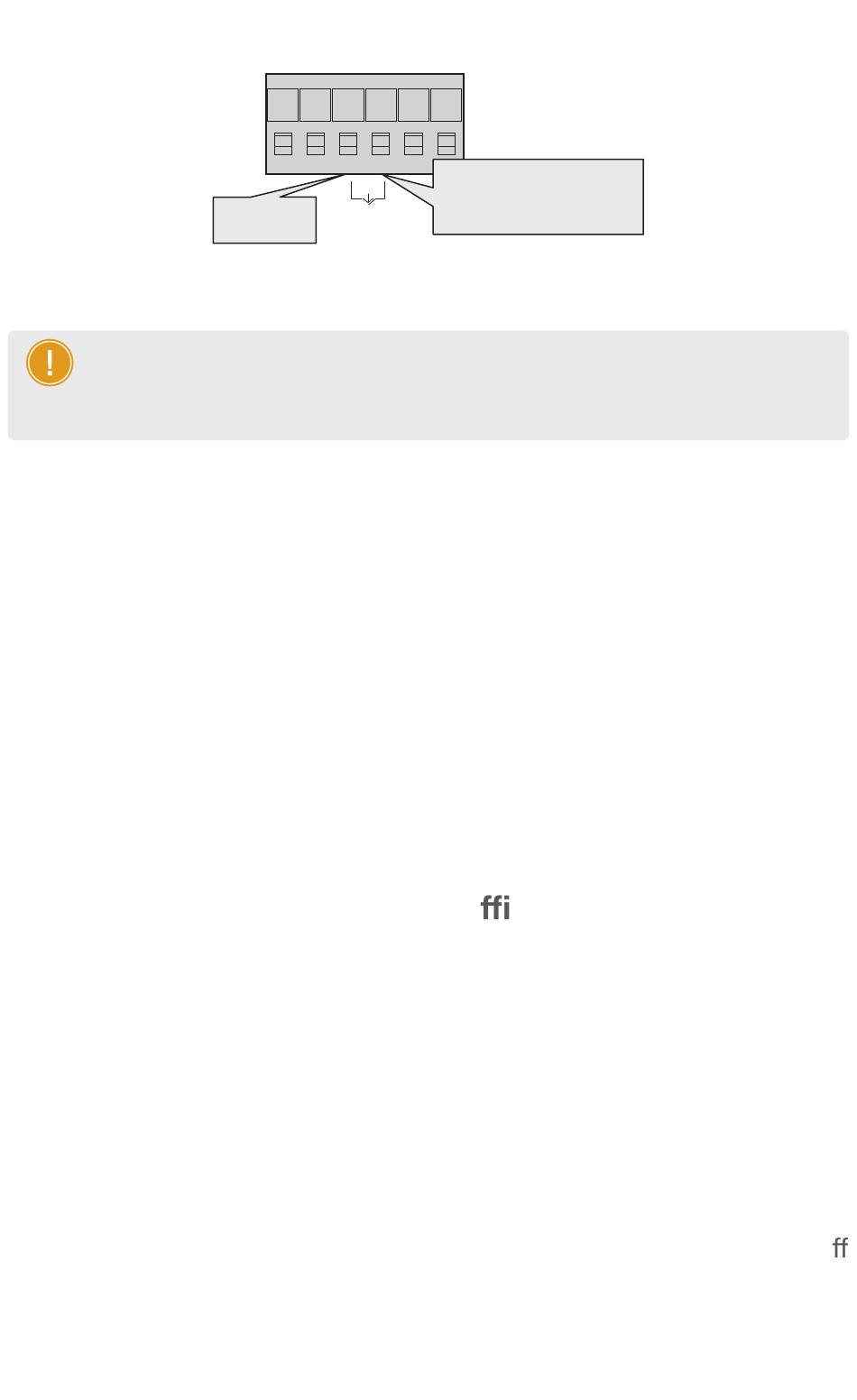

Wiring the Fault Alarm Contacts
Insert the wires into the fault alarm contacts.
NOTE:
1. The wire gauge for the terminal block should be in the range
of 12~24 AWG.
2. Alarm relay circuit accepts up to 24V, max. 1A currents.
Troubleshooting
The per Port LED Is Not Lit
Check the cable connection of the media converter.
Performance Is Bad
Check the speed duplex mode of the partner device. The media
converter usually runs in auto-negotiation mode. If the partner is
set to half duplex, the performance will be poor.
Per Port LED Is Lit, but the Tra c Is Irregular
Check that the attached device is not set to dedicate full duplex.
Some devices use a physical or software switch to change duplex
modes. Auto-negotiation may not recognize this type of full-duplex
setting.
The Converter Doesn't Connect to the Network
Check per port LED on the media converter. Make sure the cable
is installed properly. Make sure the cable is the right type. Turn o
the power. After a while, turn on the power again.
Fault Alarm
Fault
Contacts
The Fault Alarm Contacts are
energized (CLOSE) for normal
operation and will OPEN when
failure occurs
