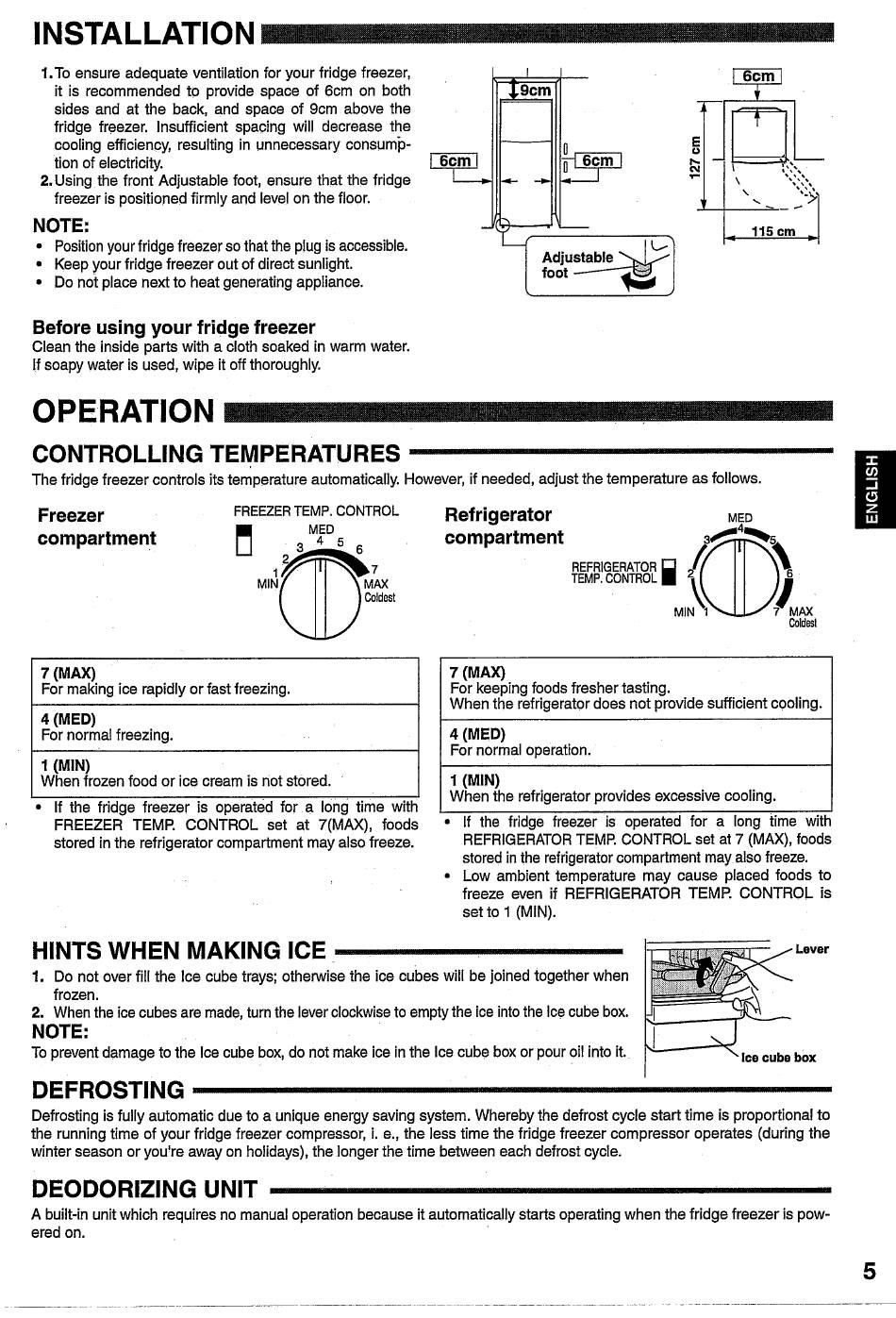

Sharp SJ-41M Bedienungsanleitung Seite 5

INSTALLATION
1. To ensure adequate ventilation for your fridge freezer,
it is recommended to provide space of 6cm on both
sides and at the back, and space of 9cm above the
fridge freezer. Insufficient spacing will decrease the
cooling efficiency, resulting in unnecessary consump-
tion of electricity.
2. Using the front Adjustable foot, ensure that the fridge
freezer is positioned firmly and level on the floor,
NOTE:
• Positionyour fridge freezerso that the plugis accessible.
Keep your fridge freezer out of direct sunlight.
• Do not place next to heat generating appliance.
Before using your fridge freezer
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly.
OPERATION
CONTROLLING
The fridge freezer controls its temperature automatically. However, if needed, adjust the temperature as follows.
Freezer
compartment
7 (MAX)
For making ice rapidly or fast freezing.
4 (MED)
For normal freezing.
1 (MIN)
When frozen food or ice cream
• If the fridge freezer is operated for a long time with
FREEZER TEMP. CONTROL set at 7(MAX), foods
stored in the refrigerator compartment may also freeze.
HINTS WHEN MAKING
1. Do not over fill the Ice cube trays; otherwise the ice cubes will be joined together when
frozen.
2. When the ice cubes are made, turn the lever clockwise to empty the ice into the Ice cube box.
NOTE:
To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.
DEFROSTING
Defrosting is fully automatic due to a unique energy saving system. Whereby the defrost cycle start time is proportional to
the running time of your fridge freezer compressor, i. e., the less time the fridge freezer compressor operates (during the
winter season or you're away on holidays), the longer the time between each defrost cycle.
DEODORIZING
A built-in unit which requires no manual operation because it automatically starts operating when the fridge freezer is pow-
ered on.
TEMPERATURES
FREEZER TEMP. CONTROL
MED
3
6
2
7
1
MIN MAX
Coldest
is not stored.
ICE
UNIT
9cm
6cm 6cm
Adjustable
foot
Refrigerator
compartment
REFRIGERATOR
TEMP. CONTROL
7 (MAX)
For keeping foods fresher tasting.
When the refrigerator does not provide sufficient cooling.
4 (MED)
For normal operation.
1 (MIN)
When the refrigerator provides excessive cooling.
• If the fridge freezer is operated for a long time with
REFRIGERATOR TEMP CONTROLset at 7 (MAX), foods
stored in the refrigeratorcompartment mayalso freeze.
• Low ambient temperature may cause placed foods to
freeze even if REFRIGERATOR
set to 1 (MIN).
6cm
115 cm
MED
MIN 7 MAX
Coldest
TEMP. CONTROL is
Lever
Ice cube box
5
