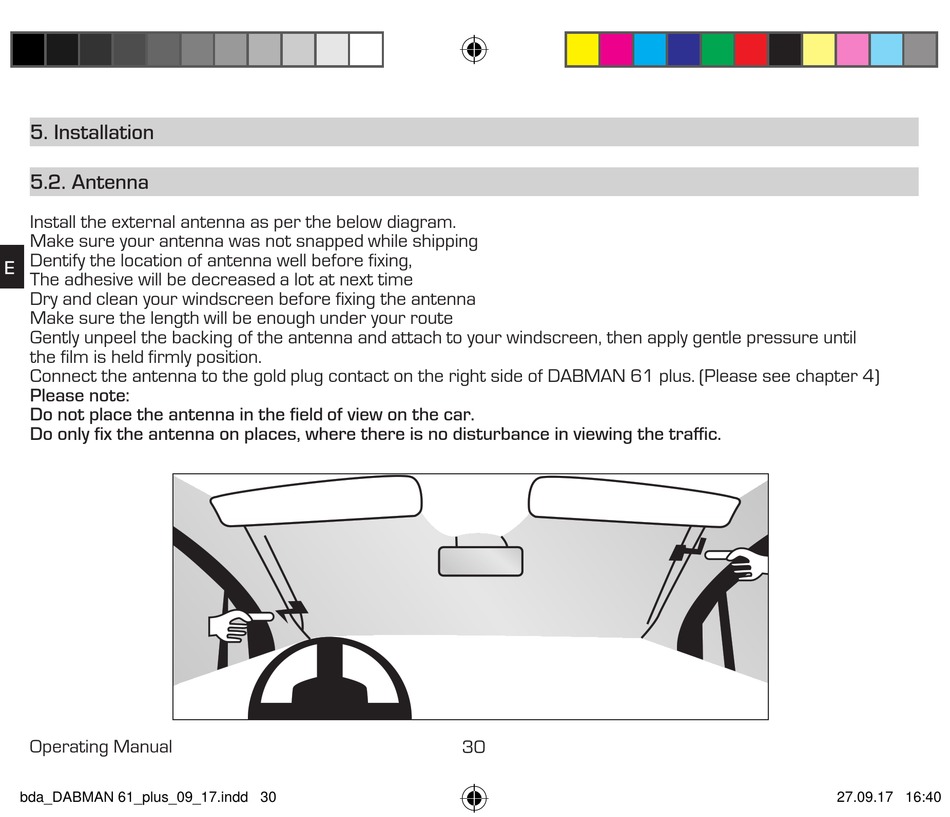

5. Installation
5.2. Antenna
Install the external antenna as per the below diagram.
Make sure your antenna was not snapped while shipping
Dentify the location of antenna well before fixing,
E
The adhesive will be decreased a lot at next time
Dry and clean your windscreen before fixing the antenna
Make sure the length will be enough under your route
Gently unpeel the backing of the antenna and attach to your windscreen, then apply gentle pressure until
the film is held firmly position.
Connect the antenna to the gold plug contact on the right side of DABMAN 61 plus. (Please see chapter 4)
Please note:
▼Cautious: Make sure the unit charging contacts connected with the docking contacts in right way! Or it
Do not place the antenna in the field of view on the car.
can't power on!
Do only fix the antenna on places, where there is no disturbance in viewing the traffic.
