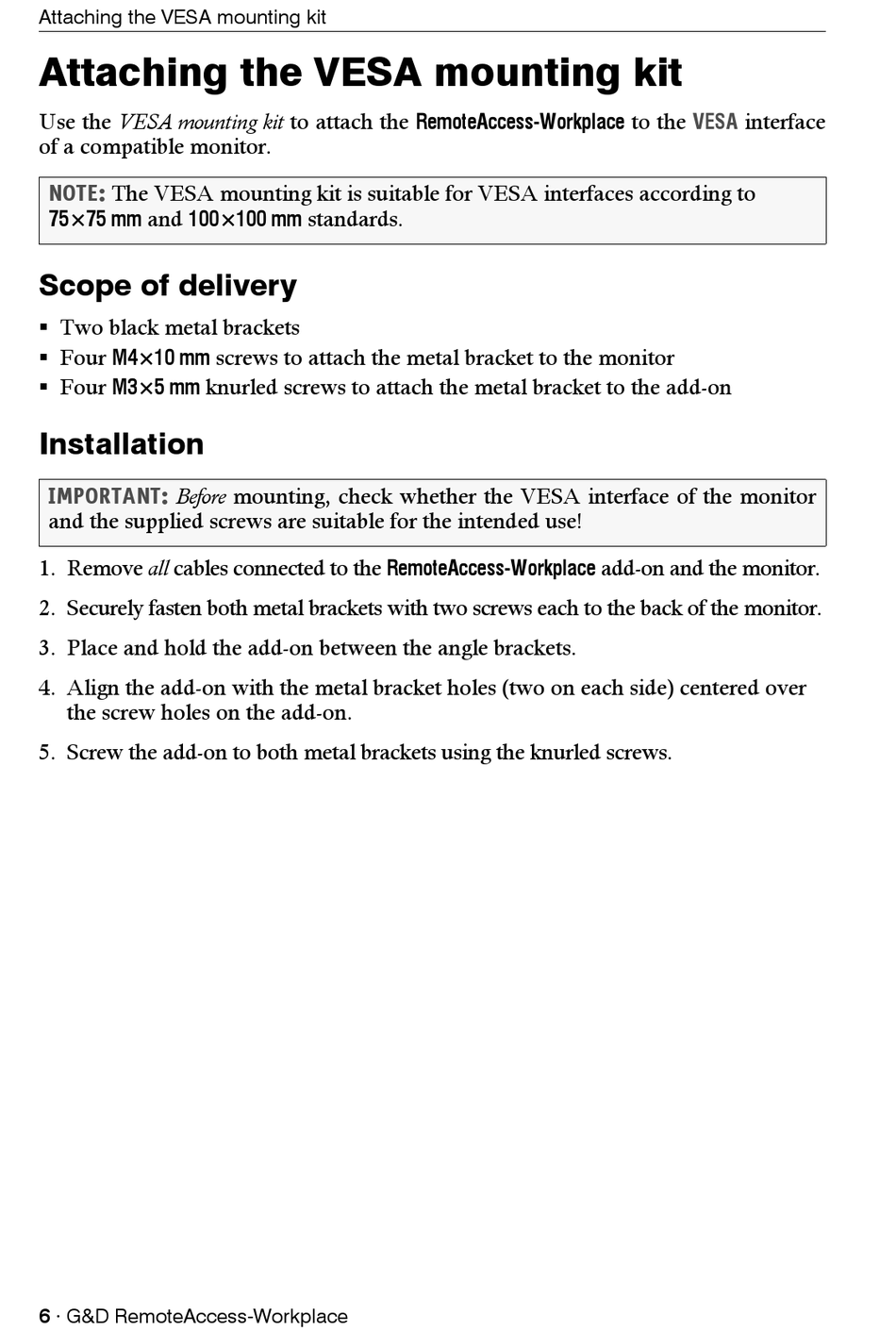

Attaching the VESA mounting kit

Attaching the VESA mounting kit
Use the VESA mounting kit to attach the
of a compatible monitor.
NOTE: The VESA mounting kit is suitable for VESA interfaces according to
75×75 mm and 100×100 mm

Scope of delivery

 Two black metal brackets
 Four M4×10 mm
 Four M3×5 mm knurled screws to attach the metal bracket to the add-on

Installation

IMPORTANT: Before mounting, check whether the VESA interface of the monitor
and the supplied screws are suitable for the intended use!
1. Remove all cables connected to the
2. Securely fasten both metal brackets with two screws each to the back of the monitor.
3. Place and hold the add-on between the angle brackets.
4. Align the add-on with the metal bracket holes (two on each side) centered over
the screw holes on the add-on.
5. Screw the add-on to both metal brackets using the knurled screws.
6 · G&D RemoteAccess-Workplace
standards.
screws to attach the metal bracket to the monitor
RemoteAccess-Workplace
RemoteAccess-Workplace
to the interface
VESA
add-on and the monitor.
