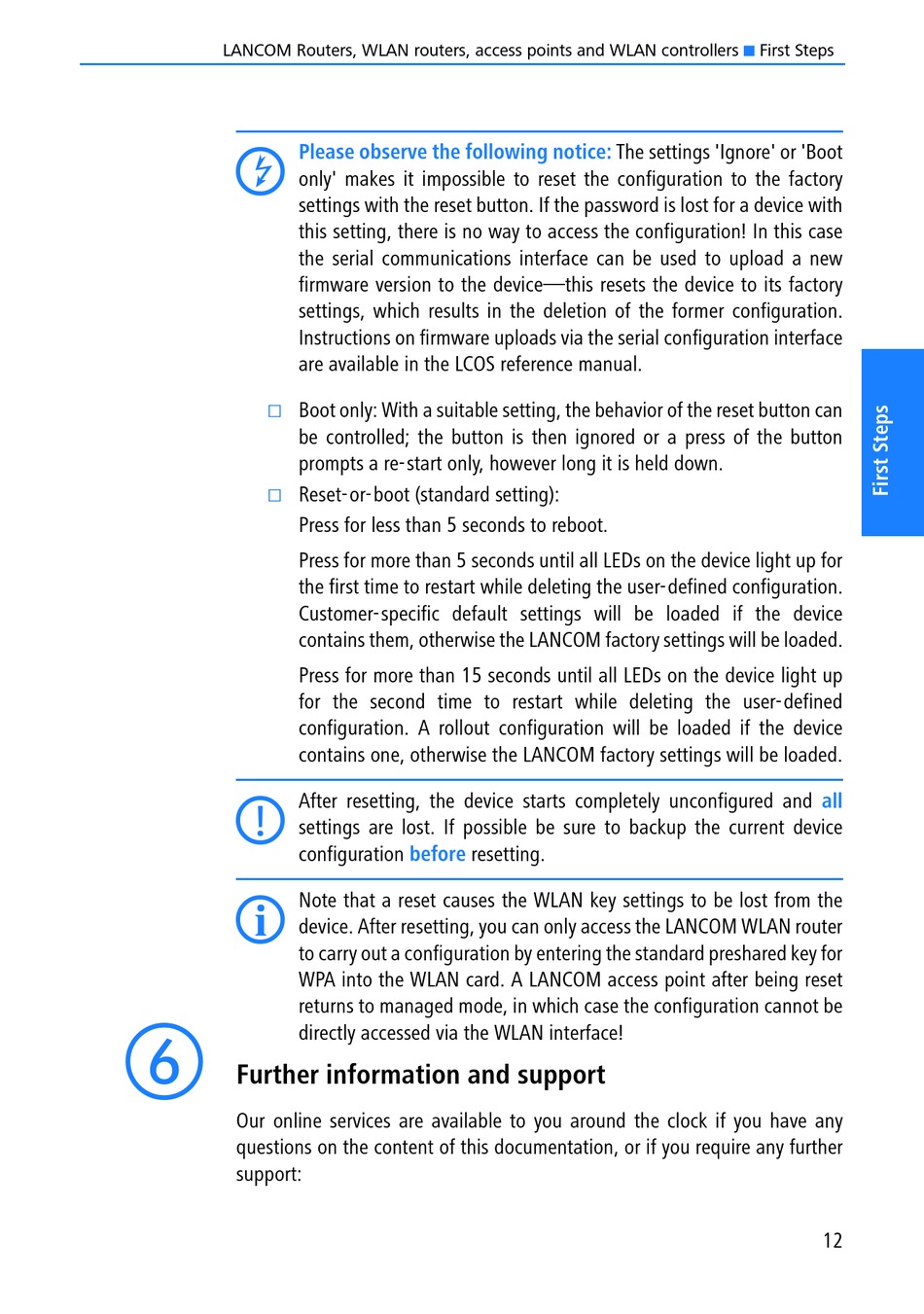

LANCOM 800+ Installationsanleitung Seite 29

LANCOM Routers, WLAN routers, access points and WLAN controllers
Please observe the following notice:
D
only' makes it impossible to reset the configuration to the factory
settings with the reset button. If the password is lost for a device with
this setting, there is no way to access the configuration! In this case
the serial communications interface can be used to upload a new
firmware version to the device—this resets the device to its factory
settings, which results in the deletion of the former configuration.
Instructions on firmware uploads via the serial configuration interface
are available in the LCOS reference manual.
Boot only: With a suitable setting, the behavior of the reset button can
be controlled; the button is then ignored or a press of the button
prompts a re-start only, however long it is held down.
Reset-or-boot (standard setting):
Press for less than 5 seconds to reboot.
Press for more than 5 seconds until all LEDs on the device light up for
the first time to restart while deleting the user-defined configuration.
Customer-specific default settings will be loaded if the device
contains them, otherwise the LANCOM factory settings will be loaded.
Press for more than 15 seconds until all LEDs on the device light up
for the second time to restart while deleting the user-defined
configuration. A rollout configuration will be loaded if the device
contains one, otherwise the LANCOM factory settings will be loaded.
After resetting, the device starts completely unconfigured and
C
settings are lost. If possible be sure to backup the current device
configuration
Note that a reset causes the WLAN key settings to be lost from the
I
device. After resetting, you can only access the LANCOM WLAN router
to carry out a configuration by entering the standard preshared key for
WPA into the WLAN card. A LANCOM access point after being reset
returns to managed mode, in which case the configuration cannot be
directly accessed via the WLAN interface!
Further information and support
Our online services are available to you around the clock if you have any
questions on the content of this documentation, or if you require any further
support:
before resetting.
First Steps
The settings 'Ignore' or 'Boot
all
12
