LANCOM Routers, WLAN routers, access points and WLAN controllers
Setup Wizard under
WEBconfig
I

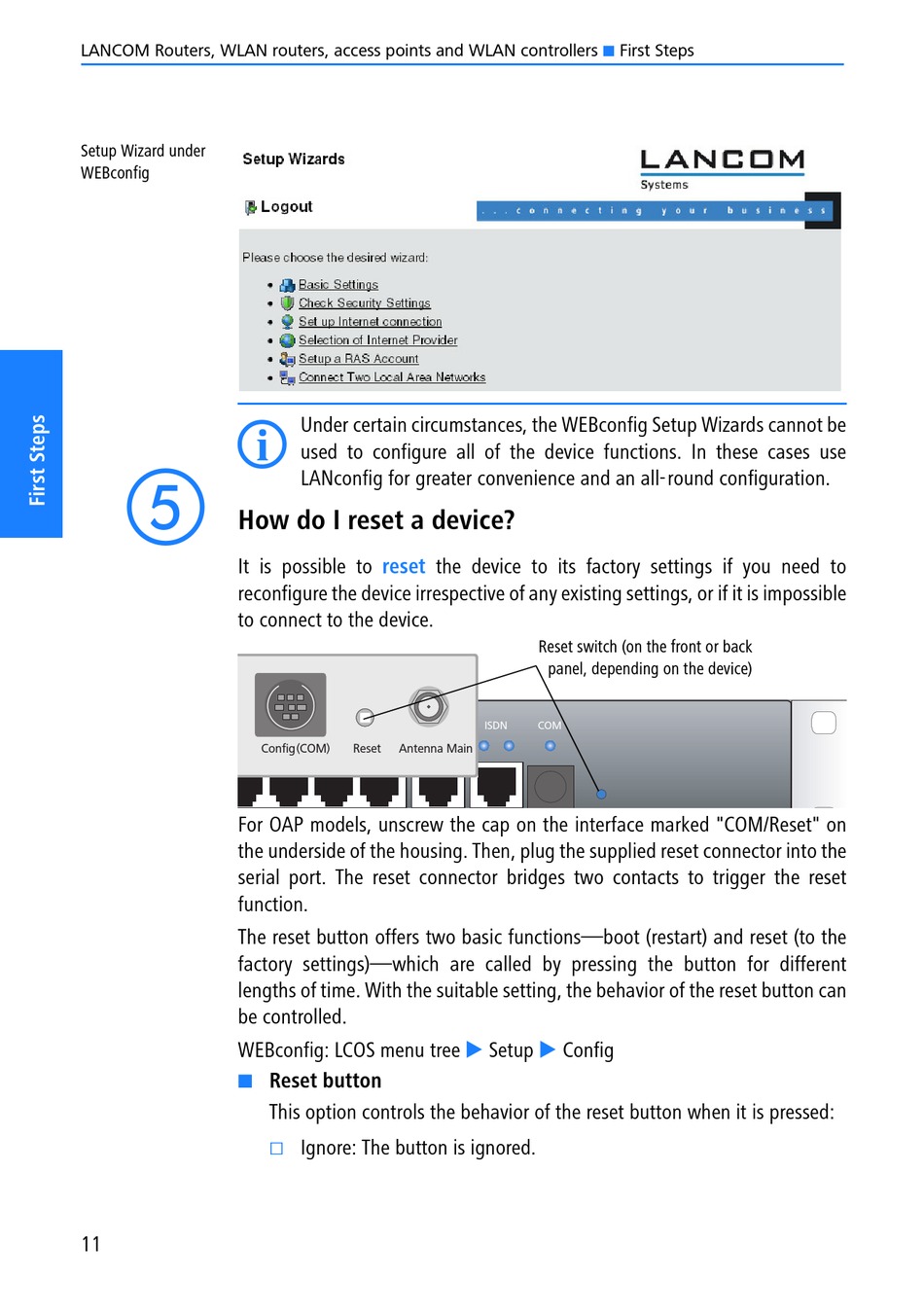

How do I reset a device?
It is possible to
reconfigure the device irrespective of any existing settings, or if it is impossible
to connect to the device.
ETH4
For OAP models, unscrew the cap on the interface marked "COM/Reset" on
the underside of the housing. Then, plug the supplied reset connector into the
serial port. The reset connector bridges two contacts to trigger the reset
function.
The reset button offers two basic functions—boot (restart) and reset (to the
factory settings)—which are called by pressing the button for different
lengths of time. With the suitable setting, the behavior of the reset button can
be controlled.
WEBconfig: LCOS menu tree
11
Under certain circumstances, the WEBconfig Setup Wizards cannot be
used to configure all of the device functions. In these cases use
LANconfig for greater convenience and an all-round configuration.
reset the device to its factory settings if you need to
WAN
ETH3 ETH2 ETH1
Config(COM) Reset Antenna Main
Reset button
This option controls the behavior of the reset button when it is pressed:
Ignore: The button is ignored.
First Steps
Reset switch (on the front or back
panel, depending on the device)
ISDN COM
Setup Config
