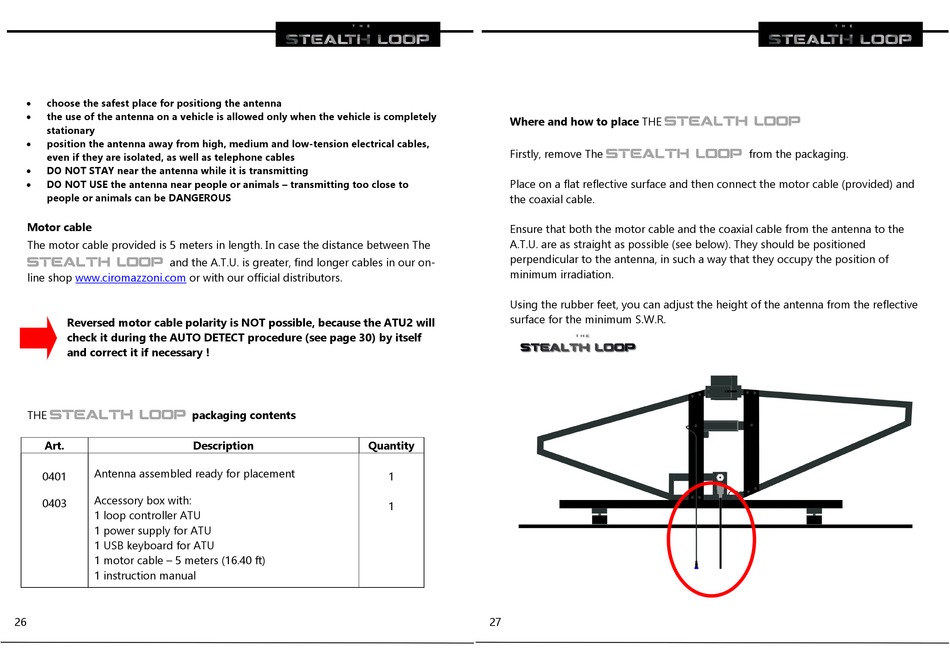

 choose the safest place for positiong the antenna
the use of the antenna on a vehicle is allowed only when the vehicle is completely

stationary
position the antenna away from high, medium and low-tension electrical cables,

even if they are isolated, as well as telephone cables
DO NOT STAY near the antenna while it is transmitting

DO NOT USE the antenna near people or animals – transmitting too close to

people or animals can be DANGEROUS
Motor cable
The motor cable provided is 5 meters in length. In case the distance between The
STEALTH LOOP
and the A.T.U. is greater, find longer cables in our on-
line shop www.ciromazzoni.com or with our official distributors.
Reversed motor cable polarity is NOT possible, because the ATU2 will
check it during the AUTO DETECT procedure (see page 30) by itself
and correct it if necessary !
STEALTH LOOP
THE packaging contents
Art. Description
Antenna assembled ready for placement
0401
Accessory box with:
0403
1 loop controller ATU
1 power supply for ATU
1 USB keyboard for ATU
1 motor cable – 5 meters (16.40 ft)
1 instruction manual
26
Where and how to place THE
Firstly, remove The
Place on a flat reflective surface and then connect the motor cable (provided) and
the coaxial cable.
Ensure that both the motor cable and the coaxial cable from the antenna to the
A.T.U. are as straight as possible (see below). They should be positioned
perpendicular to the antenna, in such a way that they occupy the position of
minimum irradiation.
Using the rubber feet, you can adjust the height of the antenna from the reflective
surface for the minimum S.W.R.
Quantity
1
1
27
STEALTH LOOP
STEALTH LOOP
from the packaging.
