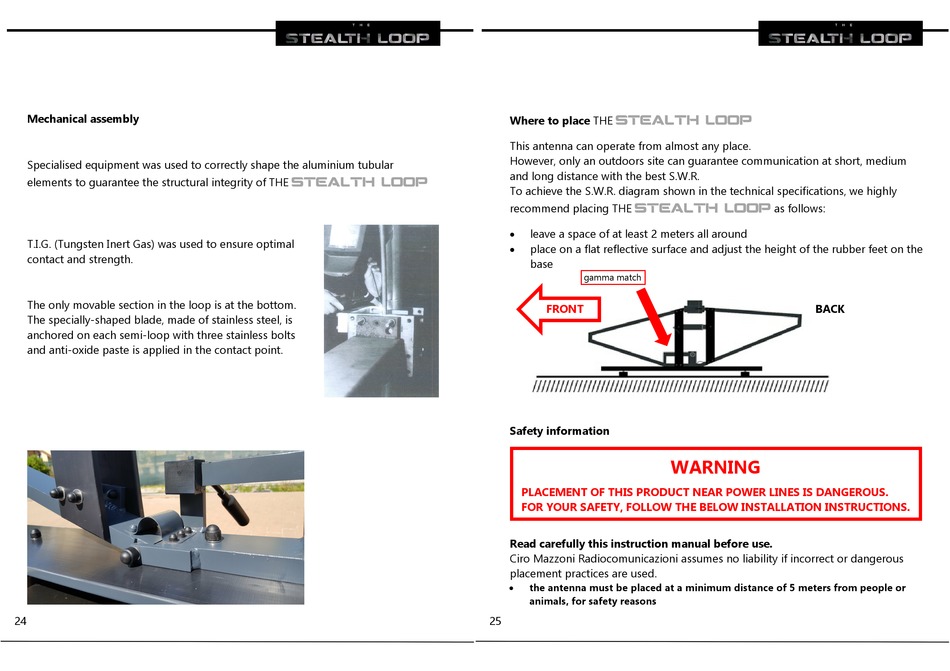

Mechanical assembly
Specialised equipment was used to correctly shape the aluminium tubular
elements to guarantee the structural integrity of THE
T.I.G. (Tungsten Inert Gas) was used to ensure optimal
contact and strength.
The only movable section in the loop is at the bottom.
The specially-shaped blade, made of stainless steel, is
anchored on each semi-loop with three stainless bolts
and anti-oxide paste is applied in the contact point.
24
STEALTH LOOP
STEALTH LOOP
Where to place THE
This antenna can operate from almost any place.
However, only an outdoors site can guarantee communication at short, medium
and long distance with the best S.W.R.
To achieve the S.W.R. diagram shown in the technical specifications, we highly
STEALTH LOOP
recommend placing THE
leave a space of at least 2 meters all around

place on a flat reflective surface and adjust the height of the rubber feet on the

base
gamma match
FRONT
Safety information
PLACEMENT OF THIS PRODUCT NEAR POWER LINES IS DANGEROUS.
FOR YOUR SAFETY, FOLLOW THE BELOW INSTALLATION INSTRUCTIONS.
Read carefully this instruction manual before use.
Ciro Mazzoni Radiocomunicazioni assumes no liability if incorrect or dangerous
placement practices are used.
 the antenna must be placed at a minimum distance of 5 meters from people or
animals, for safety reasons
25
as follows:
BACK
WARNING
