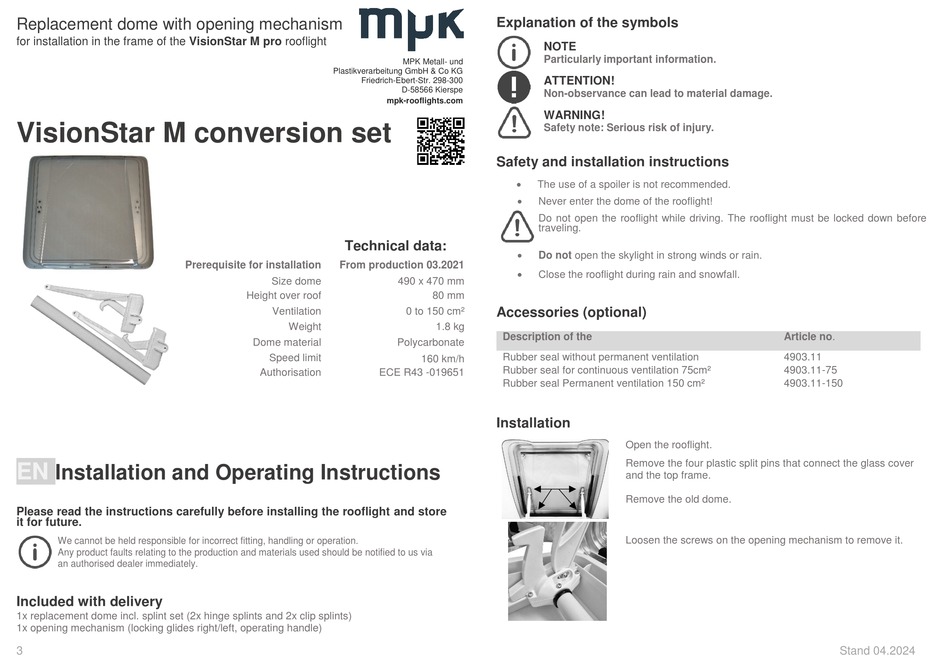

mpk VisionStar M pro Einbau- Und Bedienungsanleitung Seite 3

Replacement dome with opening mechanism
for installation in the frame of the VisionStar M pro rooflight
VisionStar M conversion set
Prerequisite for installation
EN
Installation and Operating Instructions
Please read the instructions carefully before installing the rooflight and store
it for future.
We cannot be held responsible for incorrect fitting, handling or operation.
Any product faults relating to the production and materials used should be notified to us via
an authorised dealer immediately.
Included with delivery
1x replacement dome incl. splint set (2x hinge splints and 2x clip splints)
1x opening mechanism (locking glides right/left, operating handle)
3
MPK Metall- und
Plastikverarbeitung GmbH & Co KG
Friedrich-Ebert-Str. 298-300
D-58566 Kierspe
mpk-rooflights.com
Technical data:
From production 03.2021
Size dome 490 x 470 mm
Height over roof
Ventilation 0 to 150 cm²
Weight
Dome material Polycarbonate
Speed limit
160 km/h
Authorisation ECE R43 -019651
Explanation of the symbols
NOTE
Particularly important information.
ATTENTION!
Non-observance can lead to material damage.
WARNING!
Safety note: Serious risk of injury.
Safety and installation instructions

The use of a spoiler is not recommended.

Never enter the dome of the rooflight!
Do not open the rooflight while driving. The rooflight must be locked down before
traveling.

Do not open the skylight in strong winds or rain.

Close the rooflight during rain and snowfall.
80 mm
Accessories (optional)
1.8 kg
Description of the
Rubber seal without permanent ventilation
Rubber seal for continuous ventilation 75cm²
Rubber seal Permanent ventilation 150 cm²
Installation
Article no.
4903.11
4903.11-75
4903.11-150
Open the rooflight.
Remove the four plastic split pins that connect the glass cover
and the top frame.
Remove the old dome.
Loosen the screws on the opening mechanism to remove it.
Stand 04.2024
