After the operation is completed, turn the switch to the center position to stop the operation.
3) Digital display mode (Timing mode) settings
A. Inching mode:

Press the "Touch/Cont." button to switch to inching mode; the indicator will light up.

Press the knob to enter parameter settings, then rotate the knob to adjust the speed as needed.

Place the sample tube for mixing at the center of the standard head, keeping the tube vertical.

Gently press the sample tube, causing the standard head to begin oscillating. The speed will increase
to the preset level, and the timing will start.

After mixing, remove the sample tube from the standard head, stop the operation and clear the
timing setting.
B. Continuous operation mode:

Replace the standard head with the universal fixture and securely tighten the screws.

Evenly insert the centrifuge tubes with mixed samples into the test tube fixture, ensuring the sample
volumes in each tube are approximately equal. Place the test tube fixture into the universal fixture
and secure it.

Rotate the speed control knob counterclockwise to set the minimum speed.

Press the "Touch/Cont." button to switch to continuous operation mode. The continuous operation
indicator light will turn on, and the speed will be adjustable.

Rotate the speed control knob to set the desired speed.

Press the speed control knob to enter timing mode and rotate it to set the required timing time.

Press the "Stop/Run" button to start the operation. The speed will increase to the set level, and the
countdown will begin. If the timing is set to 0, the product will run continuously.

After completing the operation, the product will stop automatically. If the timing is set to 0, press the
"Stop/Run" button to stop the operation manually.

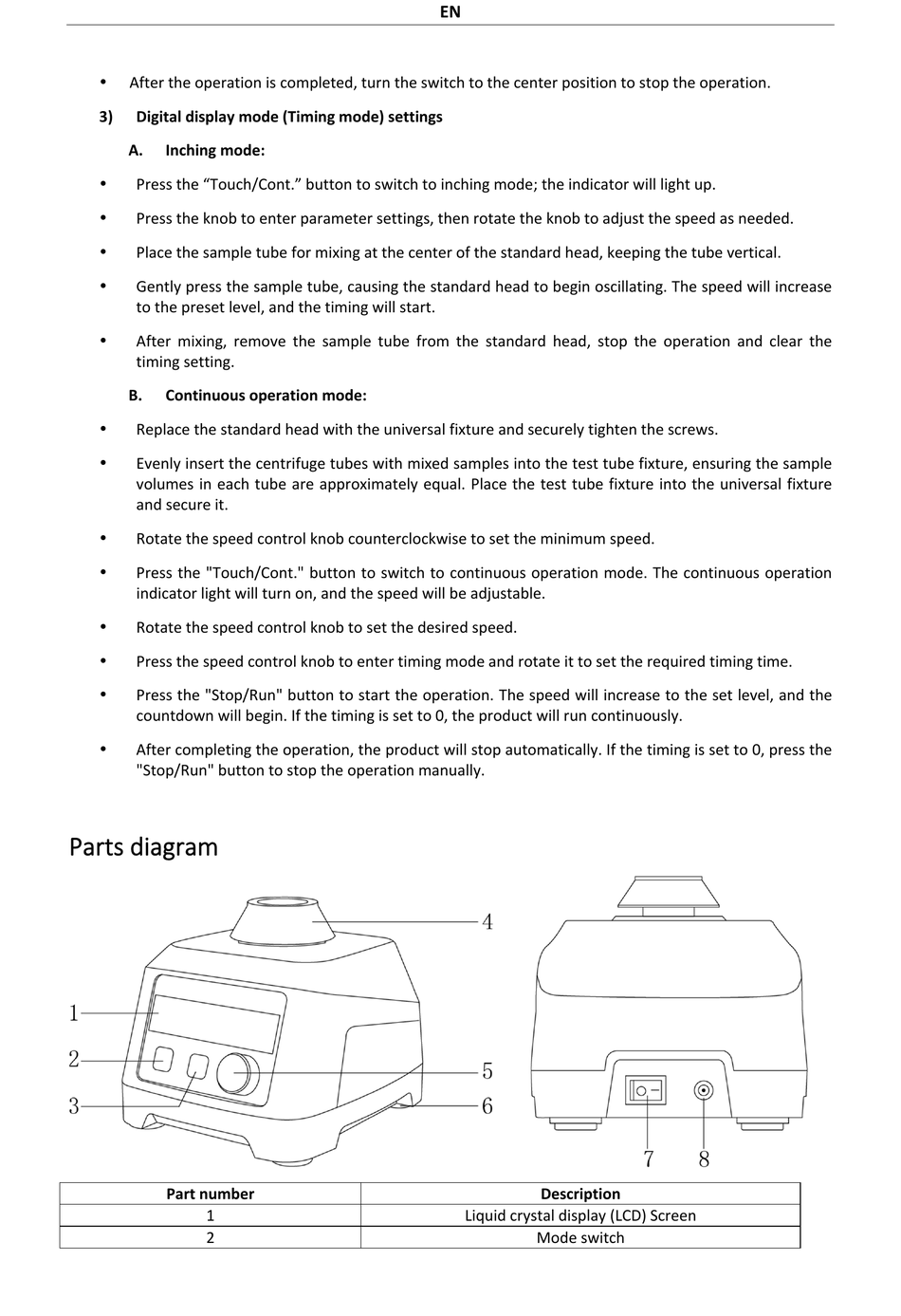

Parts diagram
Part number
1
2
EN
Description
Liquid crystal display (LCD) Screen
Mode switch
