EDIFIER V80 Bedienungsanleitung

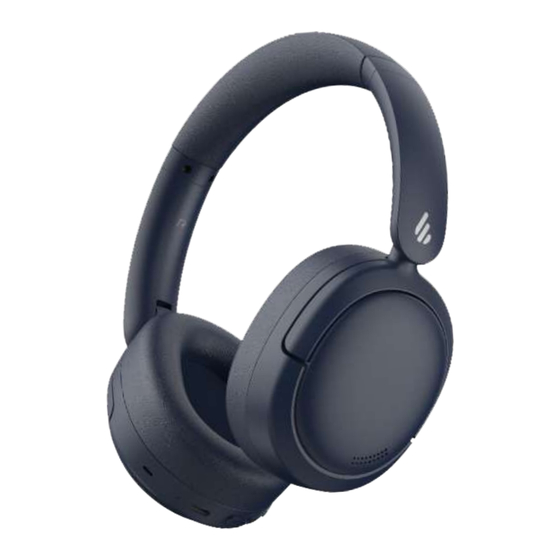

Wireless Over-Ear Headphones with Active Noise Cancellation
EN 1. Power ON/OFF
Press and hold the power button to power on/off.
2. First pairing
1. Once powered on, the headphones will automatically enter
Bluetooth pairing mode.
2. Select "EDIFIER V80" in your device settings to connect.
3. Pairing for new device
1. In ON state, press and hold the "
enter Bluetooth pairing mode.
2. Select "EDIFIER V80" in your device settings to connect.
Note: For subsequent use, the headphones will automatically connect to the device used last time.
4. Multipoint connection
①
②
③
Bluetooth
EDIFIER V80
1. Pair device A with the headphones successfully.
2. Press and hold the "
pairing mode, and then select"EDIFIER V80" in device B settings to
connect.
3. Select "EDIFIER V80" again in device A settings to connect, and the
multipoint connection is done.
Note: For subsequent use, the headphones will automatically reconnect to the two devices used
last time.
5. Charging
Connect the headphones to a power source via the USB-C cable for
charging.
Note:
1. Make sure the USB-C port is completely dry before charging.
2. When charging with a USB-C cable, the product is used as wired headphones and
Bluetooth functions are unavailable.
6. Controls
● Call
● Music
● Mode
Note:
1. "x 1" Press , "x 2" Double press , "—" Press and hold;
2. Default sound control: High Noise Cancellation / Ambient Sound / Noise Cancellation Off.
3. Download EDIFIER ConneX App for more customizable control settings.
7. Reset
1. In ON state, press the "
2. The headphones will automatically enter Bluetooth pairing mode if
successful.
8. Wired listening
Connect to the headphones via the USB-C cable. Wired listening will
automatically disable Bluetooth mode.
Model: EDF200149
Manual
3s
A
" button for 3 seconds to re-enter Bluetooth
x1
x1
x2
x3
x1
x1
x1
x2
x1
" button 5 times to finish reset.
V80
ON -
OFF -
" button for about 3 seconds to
1s
1s
Bluetooth
EDIFIER V80
Bluetooth
EDIFIER V80
Bluetooth
EDIFIER V80
A
B
Input: 5V
x5
x6
1A
