EDIFIER HECATE GX05 Schnellstartanleitung

ULTRA-LOW LATENCY WIRELESS GAMING EARBUDS

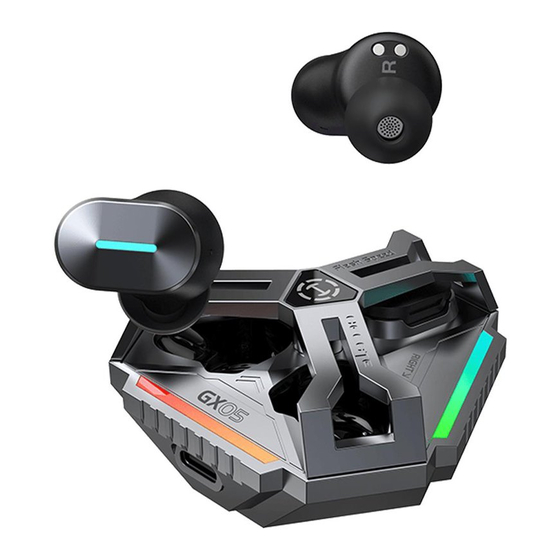

EN Product description and accessories
Touch Panel
L R
Earbuds
Pouch
Note:
• Images are for illustrative purposes only and may differ from the actual product.
• For the need of technical improvement and system upgrade, information and specifications contained
herein may be slightly different from actual product. If any difference is found, the actual product
prevails.
• The earbuds and USB-C Dongle are factory-bound as a pair, please keep them carefully. If lost, please
return the earbuds to us for upgrade binding.
02 Power ON/OFF
Power on: Take earbuds out of the case, or press and hold the touch panel for 3s.
Power off: Place earbuds in the case, or press and hold the touch panel for 5s.
03 Connection mode
Bluetooth
1st pairing
1. The earbuds will enter Bluetooth pairing mode when taken out of the case.
2. Select "HECATE GX05" in your device setting to connect.
3. The indicators on the earbuds will blink in breathing pattern when successful.
Manual pairing
1. Open the rotary buckle and keep earbuds inside the case.
2. Press and hold the button at the bottom of the case for 3s, and the earbuds will enter
Bluetooth pairing mode.
2.4GHz Bluetooth
设置
蓝牙
1. Insert the 2.4GHz USB-C Dongle into a device.
我的设备
2. The indicator on the USB-C Dongle will blink in breathing pattern when successful.
HECATE GX05
04 Charging
Charging case
Low battery
0%~33%
33%~67%
67%~100%
Charge the
charging case
Earbuds
1. Place the earbuds in the case for charging.
2. Ice blue indicator breathing = charging
Indicator off = fully charged
05 Controls
Earbuds
Accept/end a call
Light ef fects on/of f
Charging case
06 Light ef fects
Operation
Open the
rotary buckle
RGB light
ef fects
Close the
rotary buckle
Charge the
charging case
Note: After opening the rotary buckle, the indicator will first display the power-on light ef fect, then the
charging case's battery level, and finally the RGB light effects.
Model: EDF700048
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong
www.edifier.com
© 2023 Edifier International Limited. All rights reserved.
Printed in China
www.hecategaming.com
Designed by DONGGUAN EDIFIER ESPORTS TECHNOLOGY CO., LTD.
NOTICE:
For the need of technical improvement and system upgrade, information contained
herein may be subject to change from time to time without prior notice.
Products of EDIFIER will be customized for different applications.
Pictures and illustrations shown on this manual may be slightly different from actual
product. If any difference is found, the actual product prevails.
Quick Start Guide
Rotary buckle
Charging port
Ear tips
Brand card
L R
蓝牙
Indicator at the bottom blinks red rapidly.
Indicator at the bottom blinks ice blue;
Indicators on both sides are off.
Indicators at the bottom and on the left blink
ice blue; Right indicator is off.
Three indicators blink ice blue simultaneously.
Ice blue indicators breathing = charging
Indicators off = fully charged
Play/pause
Previous track
Reject a call
Ice blue indicators turn clockwise for a circle, then counterclockwise for a circle.
Colorful indicators breathing
Monochrome indicator steady lit: ice blue, green, red, blue, purple
(one color per switching)
Monochrome indicator breathing: ice blue, green, red, blue, purple (one color
per switching)
Ice blue indicators turn counterclockwise for a circle.
Ice blue indicators breathing = charging
Indicators off = fully charged
For more information, please visit our website:
Indicator
S
L
USB-C Dongle
Brand sticker
Power on manually：
Power off manually：
1
L
Play/pause
Next track
Accept/end a call
Reject a call
Light effects on/of f
Switch game/music mode
Light ef fects on/of f
Switch light ef fects
Indicator
Charging case
Dust plug x 2
Quick start guide
L R
Setting Bluetooth
Bluetooth
My Device
HECATE GX05
R
Indicator
3s
5s
Indicator
Indicator
