Built-In Oven
Cabinet mount
If installing the oven in a built-in cabinet, the cabinet must have its plastic surfaces and adhesive parts resistant
up to 90 °C. Samsung is not responsible for damage to furniture from the oven's heat emission. The oven must be
properly ventilated. For ventilation, leave a gap of about 50 mm between the lower shelf of the cabinet and the
supporting wall. If you install the oven under a cooktop, follow the cooktop's installation instructions.

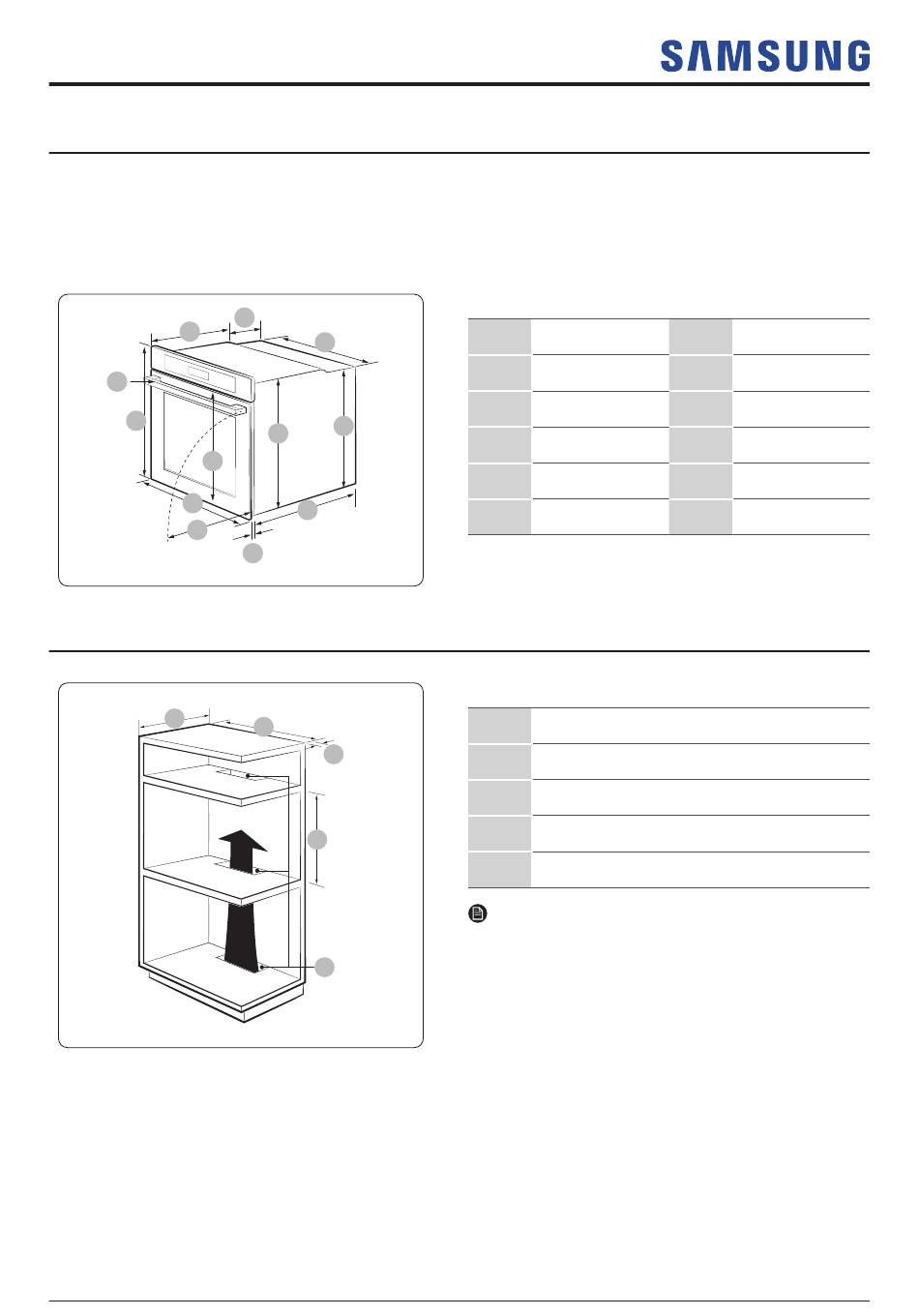

Required Dimensions for Installation
C
D
E
G
F
H
Built-in cabinet
A
B
A
L
K
J
I
B
C
D
E
(Unit : mm)
560
A
166
B
383
C
45
D
596
E
595
F
(Unit : mm)
A
B
C
Min. 590 - Max. 600
D
Min. 460 x Min. 50
E
NOTE
The built-in cabinet must have vents (E) to ventilate
heat and circulate the air.
503
G
481
H
21
I
549
J
579
K
559
L
Min. 550
Min. 560
Min. 50
