Technical data
Working pressure
Flow-rate at 300 kPa
Pressure loss
Noice class
Hot water
General
This Installation and Maintenance Guide introduces the operation, installation, maintenance and use of the
Oras Oramix pressostatic faucet. Please read the instructions carefully prior to installation and save them
for reference where servicing may be needed. If any fault or malfunction occurs in the faucet, seek the
best possible advice at an expert HVAC store.
Operation
(figure 1)
Oras Oramix is turned on and off from the flow control handle on its middle side. The temperature adjustment
handle on the right is equipped with a stop button. The limit can be passed by simultaneously pressing the
stop button and turning the temperature adjustment handle. Temperature is factory preset to 38°C.
Places of Use
Oras Oramix is designed for use in the bathroom as a shower faucet and for tub filling.
Cleaning the faucet

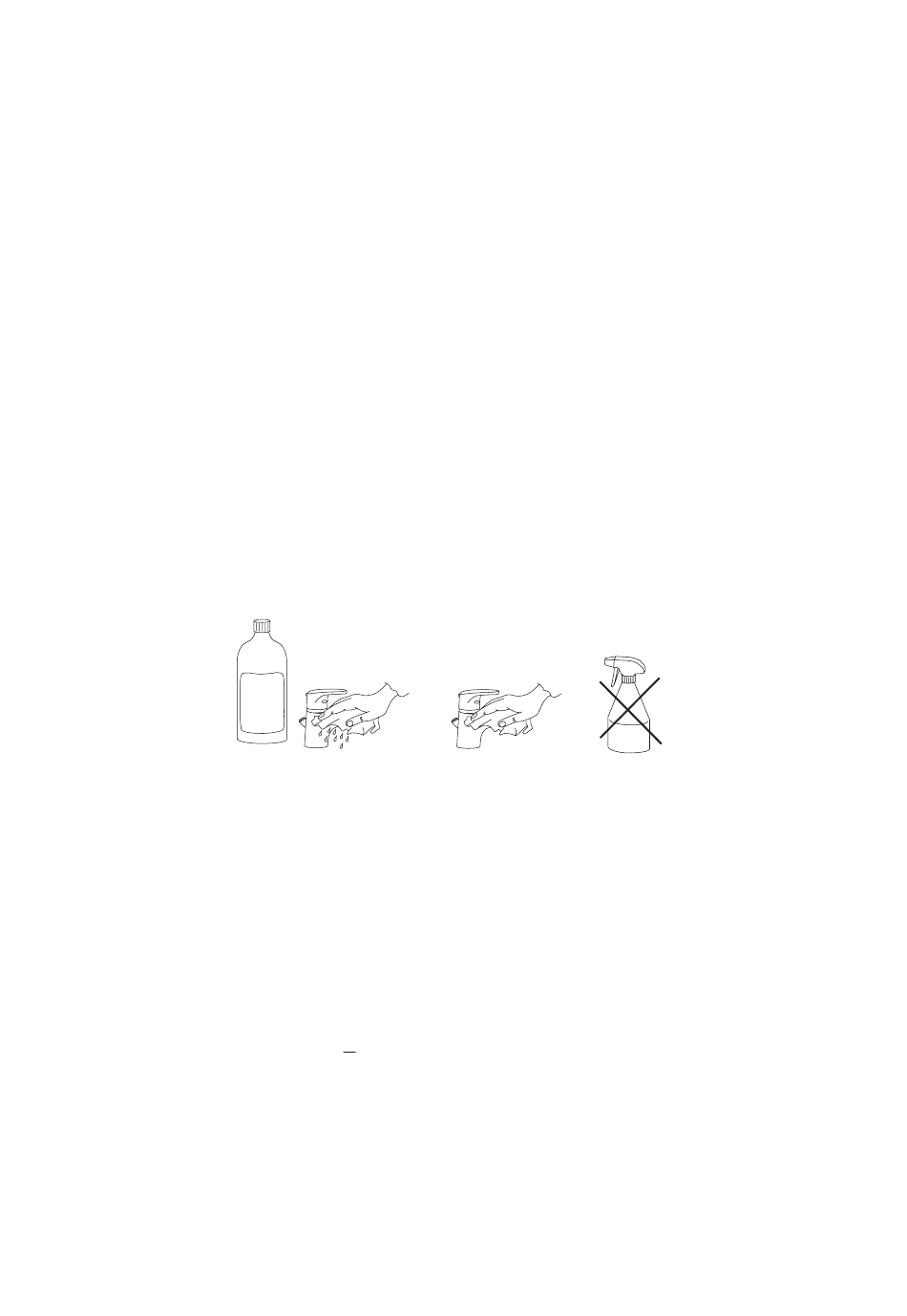

Clean the external faucet surfaces with a neutral (pH 6-9) liquid cleaner. Abrasive or corrosive agents must
not be used and neither must the faucet be cleaned with a high-pressure washer.
Risk of freezing
It is essential to ensure that the water in the faucet does not freeze.
Operating conditions
The faucet and shower set are not suitable for use in high temperatures e.g. in a sauna
(max. + 65°C).
Risk of freezing
It is essential to ensure that the water in the faucet does not freeze.
Installation
(figure 2)
Oras Oramix's faucet interval is 150 + 20 mm and nut thread G 3/4. Hot water is connected to the left and
cold water to the right. Litter filters are placed into the inlet unions.
Incoming water must not be cross-connected! If the incoming water is reversed can the faucet be
installed with the fitting package.
Temperature adjustment
– Pull off the temperature adjustment handle.
– Turn on the water.
– Adjust water temperature as required by turning the temperature adjustment handle.
– Press the knob back in place so that the stop button is above and to the right of the limiter
shoulder (figure 4).
150 – 1000 kPa
0.23 l/s
220 kPa at flow of 0.2 l/s
II (ISO3822)
max. 80°C
P H 6 - 9
n e u t r a l
(figure 3 )
