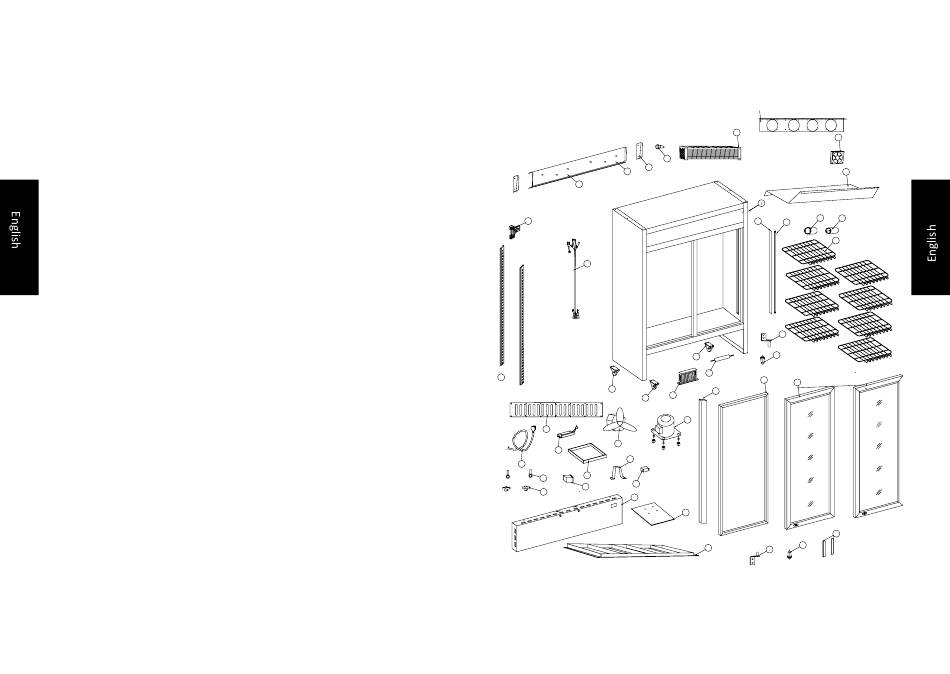

4.3 GCDC800
1. Body
2. Canopy
3. Canopy right cover
4. Light switch
5. Light cover
6. Light tube
7. Starter holder
8. Starter
9. Shelf
10. Up hinge
11. Hinge axes
12. Handle
13. Down hinge
14. Gasket
15. Glass door
16. Evaporator cover
17. Evaporator fan motor
18. Fan motor fixing plate
19. Evaporator
20. Bottom plate
52
21. Compressor fixing plate
22. Digital display
23. Condenser fan motor support
24. Compressor compartment front
cover
25. Thermostat
26. Condenser fan motor
27. Drip tray
28. Compressor
29. Condenser
30. Castor
31. Filter
32. Lock
33. Door wheel
34. Power connection
35. Ballast
36. Compressor compartment back
cover
37. Pilaster
38. K-Clip
39. Connecting wire assemblies
40. Inside tube cover
4
3
2
2
38
39
37
30
29
30
36
26
35
23
34
27
32
25
22
33
24
18
19
17
16
7 8
5
6
9
10
11
30
31
14
15
40
28
21
12
11
20
13
53
