dirna Bergstrom TRP Dynamic Montageanweisung Seite 36

DYNAMIC
EN

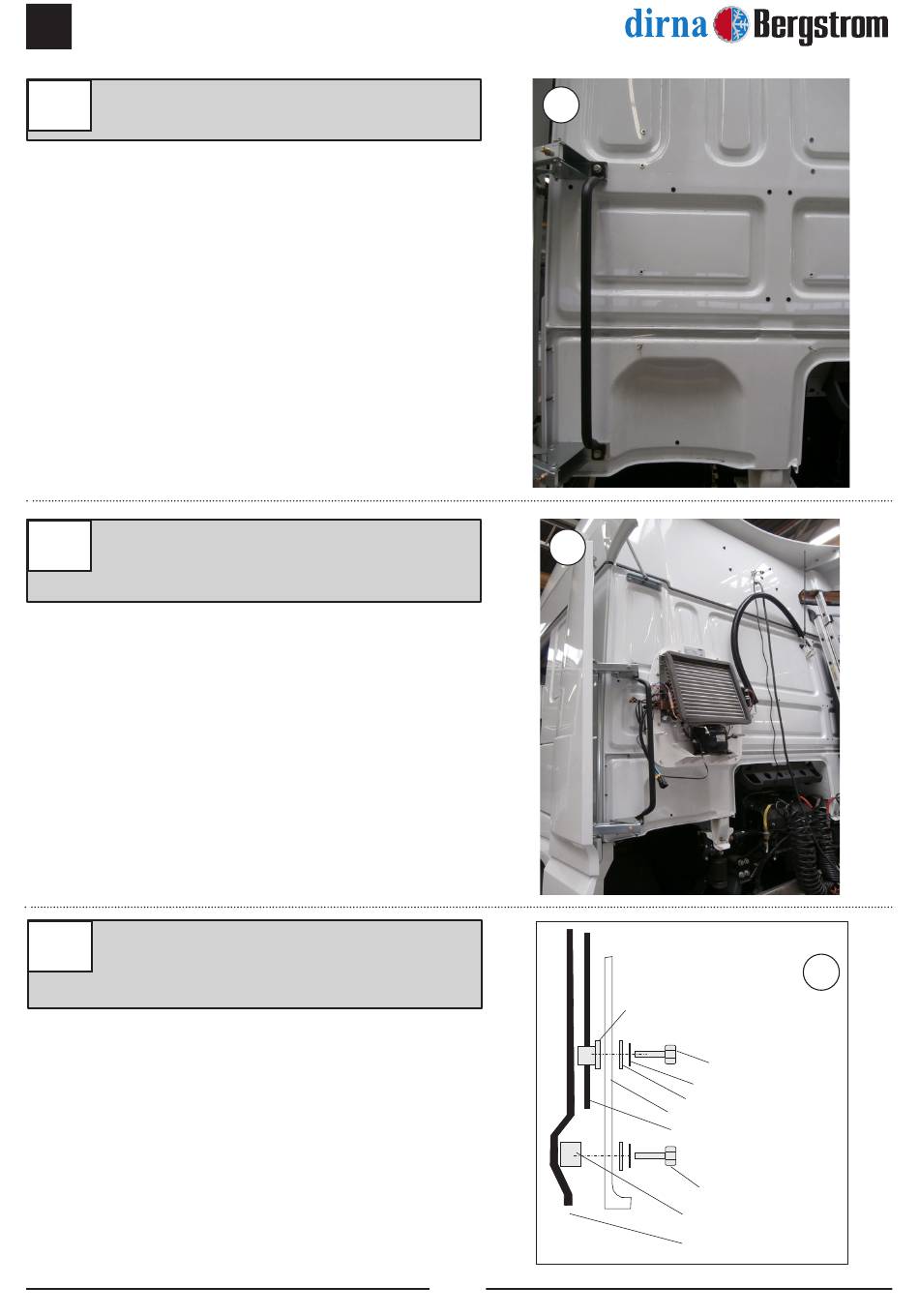

Bore the other holes at Ø9 and position M6
5
rivet nuts.
Secure the unit with (6) or (8) 6/100X30
6
screws, grower washer and flat washer
supported flat (See detail A step 7).
(*)- Whenever not supported on a flat surface,
7
position the supplied separators.
SEE DETAIL A
5
6
36
DETAIL A
M6 rivet nut
6/100x30
Ø6 Grower washer
Ø6 Flat wide-flanged washer
Support
Rear cabin section
Screw (*)
(*)
Separator
(*)
Rear cabin section
®
7
