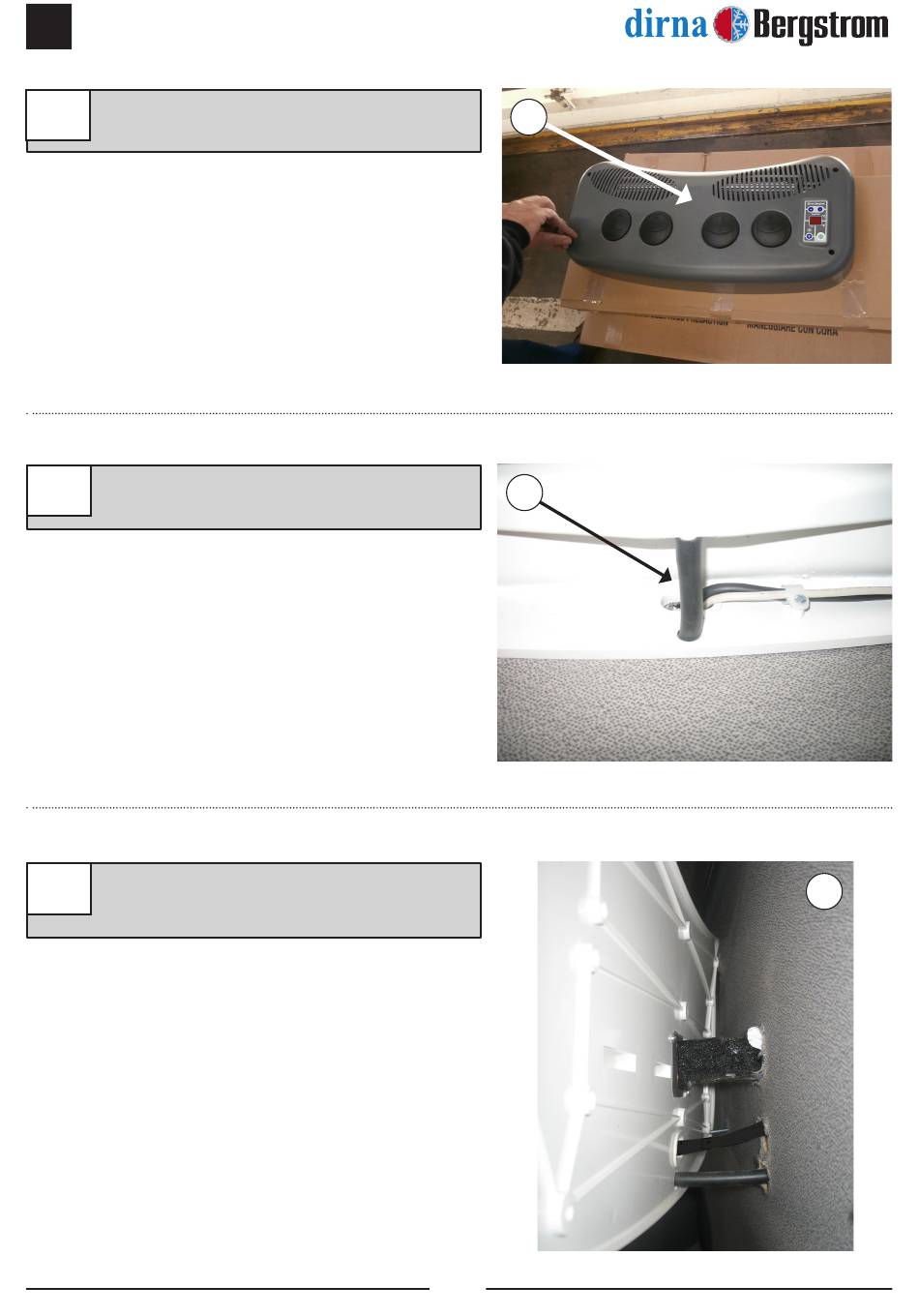

Take down the evaporation unit's air distribution
9
9
interior panel.
Pass the wastewater pipe through the bore of
10
10
the evaporator base and connect to the tray.
Pass the cabling to the outside through the
11
11
Ø35 upholstery borehole and the Ø48 metal
borehole, using the evaporator couplings.
