Assembly Instructions
..........................................................................................................................................................

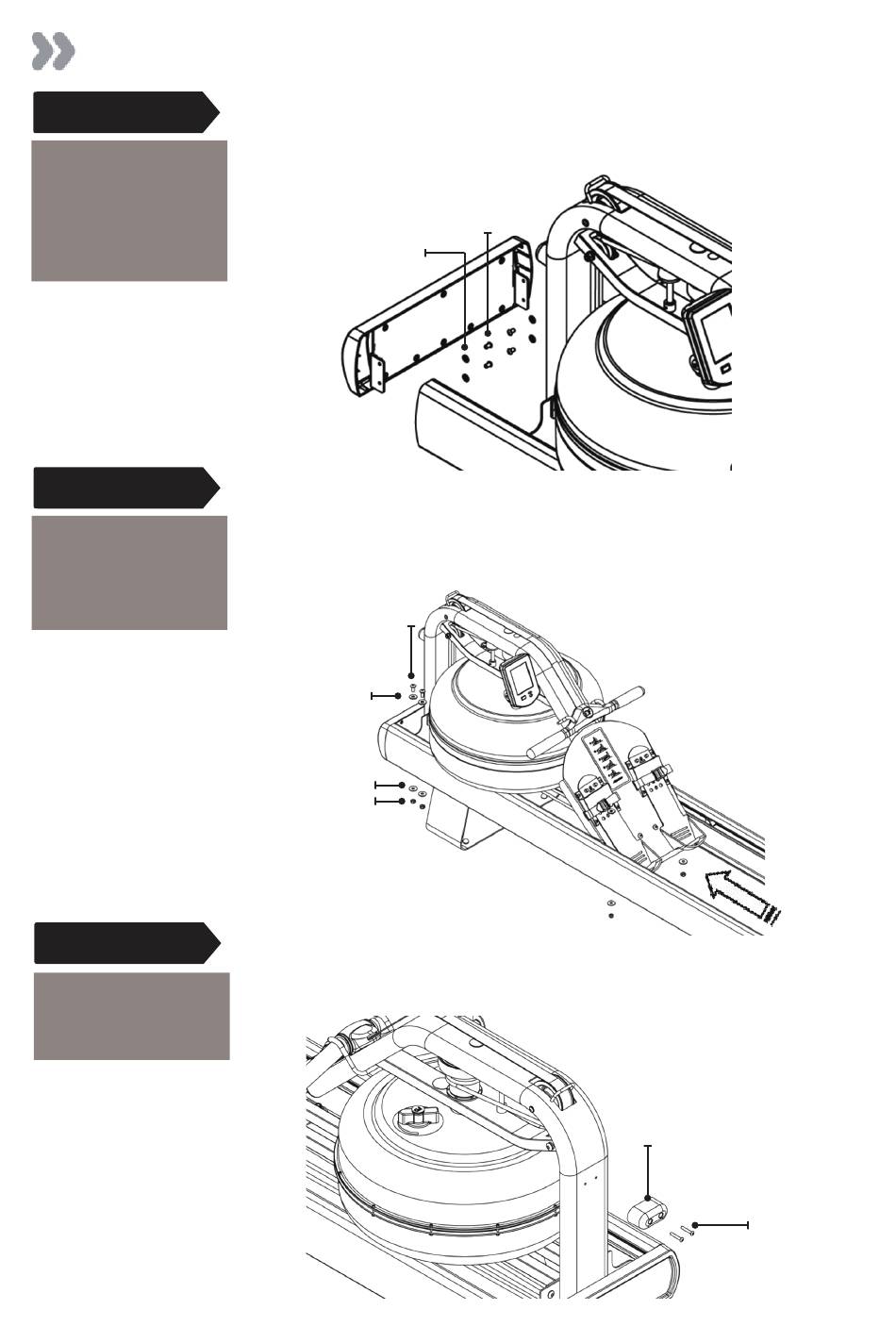

STEP 3
REQUIRED
Side Rail [2]
Front End Cap [8]
4x M6 Washer [13]
4x M6x10mm Bolts [16]
STEP 4
REQUIRED
8x M8 Nyloc Nut [12]
16x M8 Washer [14]
8x M8x 20mm Bolt [18]
STEP 5
REQUIRED
Rubber Foot [7]
2x M5x 30mm Bolts [15]
Installing the Front End Cap
Install the Front End Cap[8] to the Side Rails[2] using 4x M6 x10 Bolts[16]
and 4x M6 Washers[13].
M6 Washer
Positioning Main Frame
Move Main Frame forward to position, then secure using 8x M8x20mm
Bolt[18], 16 x M8 Washer[14] and 8x M8 Nyloc Nut[12].
M8x20mm Bolt
M8 Washer
M8 Washer
M8 Nyloc Nut
Installing the Rubber Foot
Install the Rubber Foot[7] to the Main Frame using 2x M5 x30 Bolts[15].
M6x10mm Bolt
8
Rubber Foot
M5x30mm Bolt
