,0000000
-

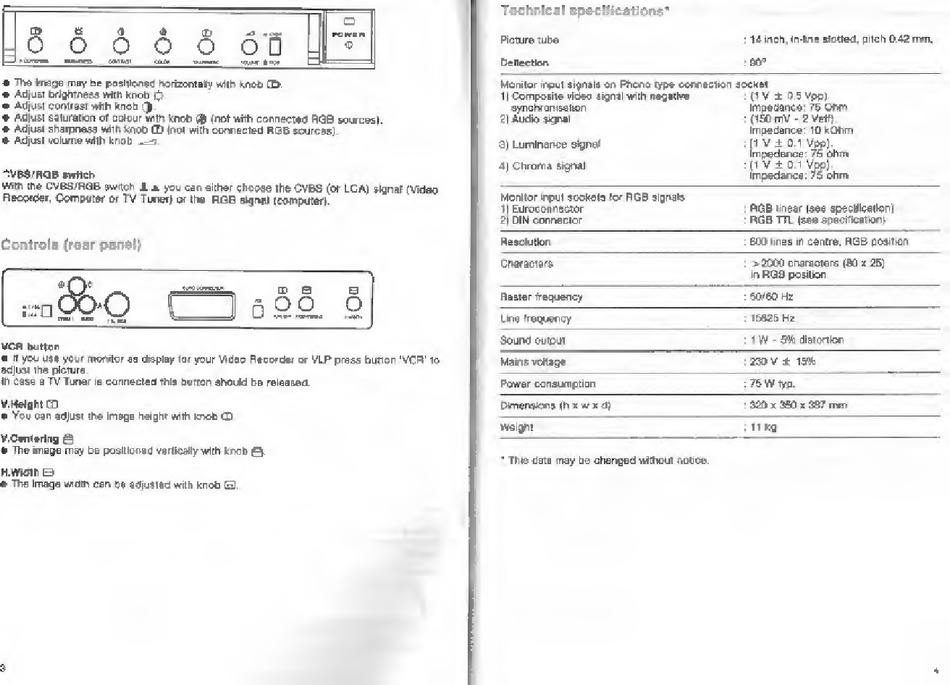

• The image may be positioned horizontally with knot) CD.
• Adjusi brightness with knob 0
• Adjusi cooliasi wiih knob ^
• Adjust saturation of cotour wiih km* ^ (not with connected RGB sources).
• Adi-s: iharonass ., :r kn ,:if
-.>; ivn connected RGB* WCM
• Adjust volume wllh knob —-*
".VBS/ROB switch
Recorder. Computer or TV Tuner) or the RGB signal (computer).
Controls (rear panel)
STD
o
o 2£L 2
VCR button
• If you um your morrtcf as display tor yout Video Recorder of VLP press butlon VCR' to
adjust the picture
In case a TV Tuner 13 connected this button should ba n
V. Height CD
• You can adjust the image height win knob CD
V.Ctfiterlng @
• The image may be positioned vertically with knob Q
h Width
-
• T^e image widm can be adjusted wdfi knob ©.
Technical specifications'
Picture tube
Deflection
: 14 inch, mine stoned, pitch 042 mm,
:90°
Monitor ir©ut signets on Phono type connects
1 1 Composite video signal with negative
synchronisation
2) Audio signal
3) Luminance signal
4) Chroma signal
socket
: (1 V t 0.5 Vpp)
impedance: 75 Ohm
: (ISO mV • 2 Vett)
Impedance: lOkOhm
; (1 V ± 0.1 Vpp).
Impedance: 75 ohm
: (1 V + 0.1 Vpp).
Impedance: 75 ohm
Monitor ircut sockets for RGB signals
IIEuroconnector
3| DIN connector
: RGB linear (see specification)
: RGB TTL (see speculation)
Resolution
: 600 lines in centre, RGB position
Chaiacie's
. > 2000 characters (80 x 25)
in RGB position
Raster frequency
: 50'60 Hz
ine frequency
: 15625 Hz
Sound outpul
; 1 W - 5% distortion
Mams voltage
:230 V * IS*
Power consumption
: 75 W typ.
Dimensions (h x w x d)
: 320 x 350 x 387 mm
Weight
' This data may be changed without notice
