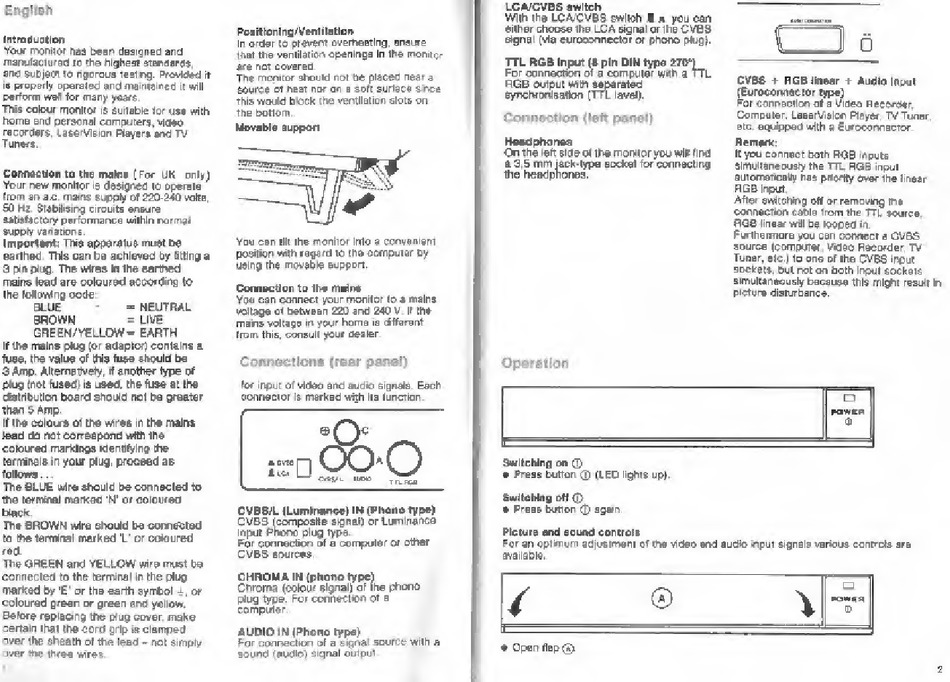

Commodore 1084 Bedienungsanleitung Seite 3

English
introduction
You* monitor has been designed and
manufactured ic the highest standards.
and Subjeon 10 rigorous testtrtg. Provided it
is property operated and maintained it will
perform wed (or many years.
This colour monitor is suitable tor use wiih
home and personal computers, video
recorders. laservlsion Player* and TV
Tuners.
Connection to the mams ( For UK only)
Your new monitor i3 designed to operate
from an a.c. mans supply of 220-240 volts,
50 Hi. Stabilising circuits ensure
satisfactory performance within normal
supply va nation s.
Important: This apparatus must be
earthed This can bo achieved by fitting a
3 pin plug. The wires in the eartned
mains leaO are coloured according to
the folowinn, code:
BLUE = NEUTRAL
BRO'A'N ■ LIVE
GREEN/YELLOW- EARTH
II the mains plug (or adaptor) contains a
fuse, the value of this fuse should be
3 Amp. Alternatively, rl another type of
plug (not (used) is used, trie fuse at the
distribution board srio jid not be greater
than 5 Amp
II the colours of the wires in the mains
lead do not correspond with the
coloured markings identifying the
terminals in your plug, proceed as
follows . , .
The BLUE wire should be connected to
the terminal marked N' or coloured
black
The BROWN wire should be connected
lo the terminal marked 'L* or coloured
red.
The GREEN and YELLOW wire must be
connected to the terminal in the plug
marked by E or ins earth symbol 4. or
coloured green or green end yellow.
Before replacing the plug cover, make
certain ihal the cord grip la clamped
over the sheath of the lead - not stmpv
aver tne tnree wires.
Positioning/ Ventilation
In order to prevent overheating, ensure
I fiat the ventilation openings in trie monitor
are not covered
The monitor should not be placed near a
source ot neat nor on 9 soft surface since
this would bWcfc (he ventilation slots on
the bottom
Movable support
You can Hit the monitor Inio a convenient
position with regard to (ho computer by
using the movable support.
Connection to the mains
You can connect your monitor to a mains
voltage ol between 220 and 240 V If the
maris voltage m your home is different
from this, consult your dealer
Connection! (rear pane))
for input of video and audio signals Each
connector is marked with Its function
Tl
CVBS;L (Luminance) IN (Phono type)
CVBS (composite signal) or Luminance
Input Pnono plug type.
For connection of a computet Or other
CVBS sources.
CHROMA IN (phono type)
Chroma (colour signal) of the phono
plug type For connect")" Of a
computer.
AUDIO IN (Phono type)
For connection of a signal source with a
sound (audio) signal output
LCA/CVBB switch
With me LCA.CVBS switch I . you can
either choose the LCA signal or the CVBS
signal (via eurcconnector or phono plug).
TTL RGB Input (8 pin DIN type 2701)
For conneclon ot a computet with a TTL
RGB output with separated
synchronisation (TTL lavei).
Connection (left panel)
Headphones
On the let side ol Ihe monitor you will find
a 3,5 mm lack-type socket for connecting
Ihe headphones.
Q
CVBS * RGB linear * Audio Input
(Euroconnector type)
For connection of s Video Recorder.
Computer. LaserVislon Player. TV Tuner.
etc. equipped with a Euroconnector
Remark:
H you connect both RGB inputs
simultaneously the TTL RGB input
automatically has priority over the linear
RGB Input.
After switching off or removing me
connoclton cable from the TTL source.
RGB linear will be looped In.
Furthermore you can connect a CVBS
source (.computer. Video Recorder, TV
Tuner, etc.) lo one of Ihe CVBS ir»ut
sockets, but not on both Input sockets
simultaneously because this might result in
piCTureOisturbance.
Operation
Switching on ©
• Press button <T) (LED lighls up).
Switching off ©
e Press button <T) a
Picture and sound controls
For an optimum adjustment of (he video and audio mpui s
venous controls a
> OpenflarH»>
