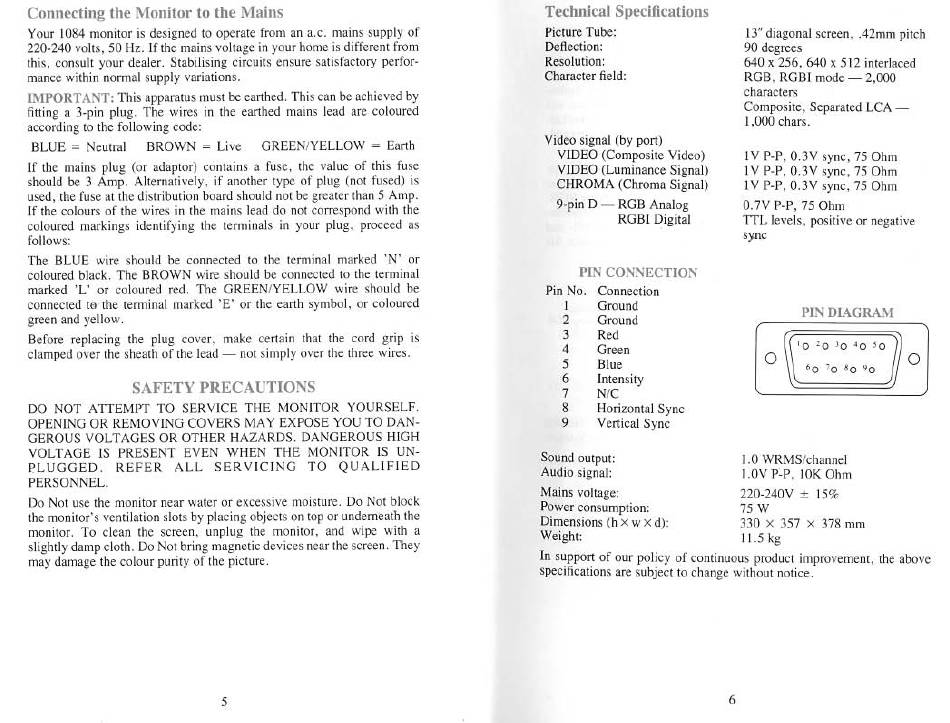

Commodore 1084S Bedienungsanleitung Seite 6

Connecting the Monitor to the Mains
Your 1084 monitor is designed to operate from an a.c. mains supply of
220-240 volts, 50 Hz- Ifthe mains voltage in your home is different from
this, consult your dealer.Stabilisingcircuits ensuresatisfactory perfor-
mance within normal supply variations.
IMPORTANT: This apparatusmust be earthed, This can be achieved by
fitting a 3-pin plug. The wires in the earthedmainslead arecoloured
according to the following code;
BLUE = Neutral BROWN = Live
If the mains plug (or adaptor)containsa fuser the value of this fuse
should be 3 Amp. Alternatively. if another type of plug (not fusedj is
used, the fuse at the distribution board should not be greater than 5 Amp.
If the colours of the wires in the mains lead do not correspond with the
colouredmarkings identifying the terminalsin your plug, proceedas
follows:
The BLUE wire should be connected
coloured black, The BROWN wire should be connected to the terminal
marked or coloured red, The
connected to the terminal rnarked 'E' or the earth symbol, or coloured
green and yellow.
Before replacing the plug cover, make certain that the cord grip is
clamped over the sheathof the lead — not simply over the three wires.
SAFETY PRECAUTIONS
DO NOT ATTEMIYV TO SERVICE
OPENING OR REMOVING COVERS
GEROUS VOLTAGES OR OTHER HAZARDS& DANGEROUS
VOLTAGE IS PRESENT EVEN
PLUGGED. REFER ALL
PERSONNEL
Do Not use the monitor near water or excessive moisture.
themonitor'sventilationslotsby placingobjectson top or underneath the
monitor. To clean the screen,unplug the monitor, and wipe with a
slightly dampcloth. Do Not bringmagnetic devicesnearthescreem They
may damagethe colour purity of the picture.
GREEN/YELLOW Earth
to the terminal marked 'N'
GREEN/YELLOW wire should
THE MONITOR YOURSELFE
MAY EXPOSE YOU TO DAN.
HIGH
WHEN THE MONITOR IS
SERVICING TO QUALIFIED
Do Not block
5
Technical Specifications
Deflection:
Resolution:
Character
Video signal (by port)
VIDEO (Composite Video)
VIDEO (Luminance Signal)
CHROMA (Chroma Signal)
Y-pin D — RGB Analog
or
be
Pin No.
1
2
3
4
5
6
7
8
9
LIN-
Soundoutput:
Audio signal:
Mainsvoltage:
Power consumption:
Dimensions (h X w x d):
Weight:
In support o f our policy of continuous productimprovement, the above
specifications a resubjectto changewithout notice.
Tube: 13"diagonalscreen,942mm pitch
90 degrees
640 x 256, 640 x 512 interlaced
field:
RGB, RGBI mode —2,000
characters
Composite, SeparatedLCA —
I
IV P.P, 0.3V sync, 75 Ohm
IV P-P, 0.3V sync, 75 Ohm
RGBI Digital 'TTL levels, positive or negative
sync
PIN CONNECTION
Connection
Ground
Ground
Red
Green
Blue
Intensity
Horizontal Sync
Vertical Sync
1.O WRMS/channe1
LOV P-P, 10K Ohm
220-240V
75 w
330
11.5 kg
6
chars,
P-P, o,3V sync, 75 Ohm
P-P, 75 Ohm
PIN DIAGRAM
'0 20 •a SO
o
o
so •o so 90
±
X 357 x 378 mm
