Always lay cables in such a way
that they do not become a risk to
people and domestic animals.
The device may only be operated
within residential buildings.
Using the device for any purpose
other than that described in this
operating manual does not fall
within the scope of intended use
and shall invalidate any warranty
or liability.
4 HHmematiccIIP – mart
livingn, simmlly cHmfHrtaale
With Homematic IP, you can install
your smart home solution in just a few
little steps.
The Homematic IP Access Point is the
central element of the Homematic IP
smart home system and communicates
with the Homematic IP radio protocol.
You can pair up to 120 Homematic IP
devices using the Access Point.
All devices of the Homematic IP system
can be configured comfortably and
individually with a smartphone via the
Homematic IP app. The available func-
tions provided by the Homematic IP
system in combination with other
components are described in the
Homematic IP User Guide.
All current technical documents and
updates are provided at
www.homematic-ip.com.
5 FunctiHn and device
Hverview
The Homematic IP Access Point is the
central unit of the Homematic IP sys-
tem.
It connects smartphones via the
Homematic IP cloud with all
Homematic IP devices and trans-
mits configuration data and con-
trol commands from the app to all
Homematic IP devices. You can simply
adjust your smart home control to your
personal needs at any time and place.
Device overview:

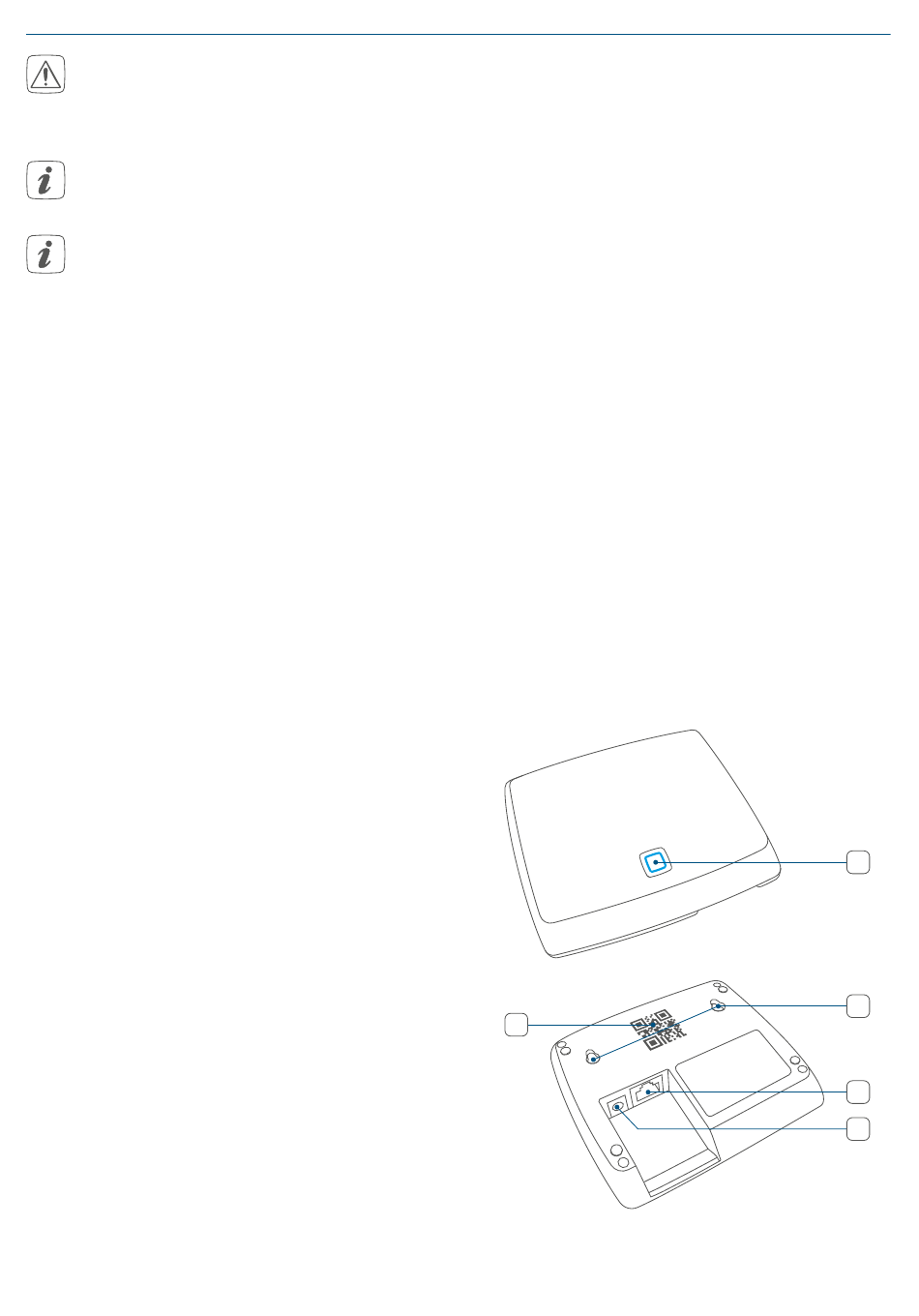

(A) System button and LED
(B) QR code and device number
(SGTIN)
(C) Screw holes
(D) Interface: Network cable
(E) Interface: Plug-in mains adapter
B
Figure 1
A
C
D
E
