> When working with the tool the operator must not have loose parts of wear as
e.g. a tie, long hair, jewelry etc. to avoid getting caught by the tool.
> Same safety instructions apply for persons standing close to the tool.
> Avoid unnecessary contact with the hydraulic fluid to prevent possible allergic
reaction of the skin.
> The tool is not designed for outdoor and explosive environment.
> After the service life, discard the tool according to the Disposal Act no. 185/01 Coll.
2. Description of the pneumatic blind rivet tool 2. Description of the pneumatic blind rivet tool

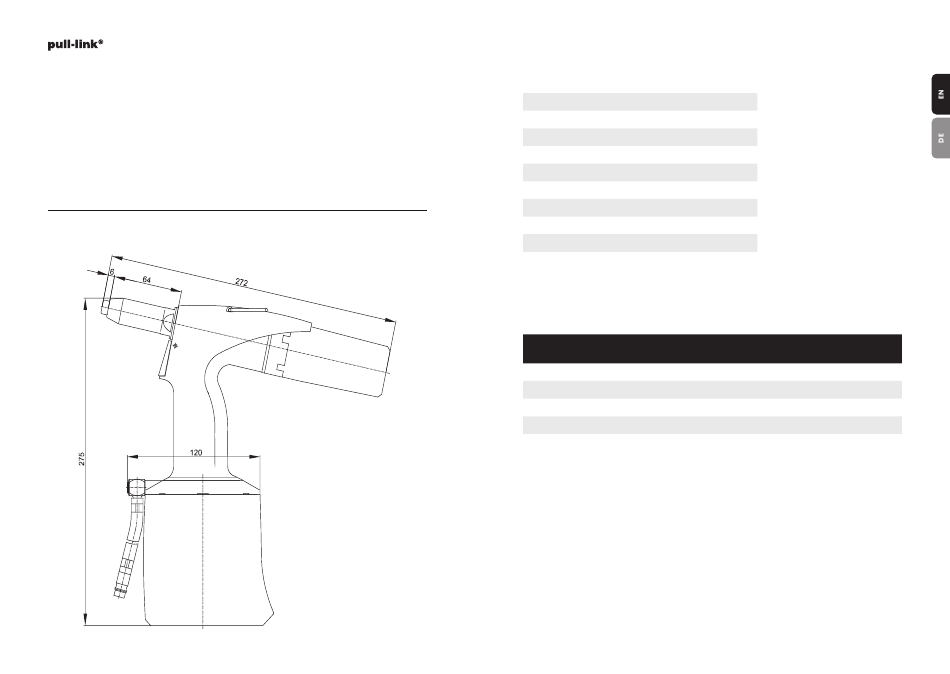

2.1 Basic dimensions
4
2.2 Technical data
Weight
Working pressure 0.5 - 0.7 MPa
Stroke force at 0.6 MPa
Air consumption 2.0 L / stroke
Stroke
Height
Length
Width [over the aircoupling]
Front nozzle Ø 22.5 mm
Front nozzle length
2.3 Range of usage
The pneumatic blind rivet tool is designed for riveting with blind rivets:
Type Al St
of rivet [aluminium] [steel]
Standard Ø 4.0 Ø 4.0
Standard Ø 4.8/5.0 Ø 4.8/5.0
Standard Ø 6.0 Ø 6.0
Standard Ø 6.4 Ø 6.4
* Recommended nosepieces with respect to rivet diameters [does not apply for all
types of rivets]
AS-2
1.65 kg
12.5 kN
21 mm
275 mm
272 mm
120 mm
64 mm
Rv Recommended
[stainless steel] nosepieces*
Ø 4.0 Nosepiece no. 4
Ø 4.8/5.0 Nosepiece no. 5
Ø 6.0 Nosepiece no. 6
Ø 6.4 Nosepiece no. 6.4
5
