ENGLISH
4

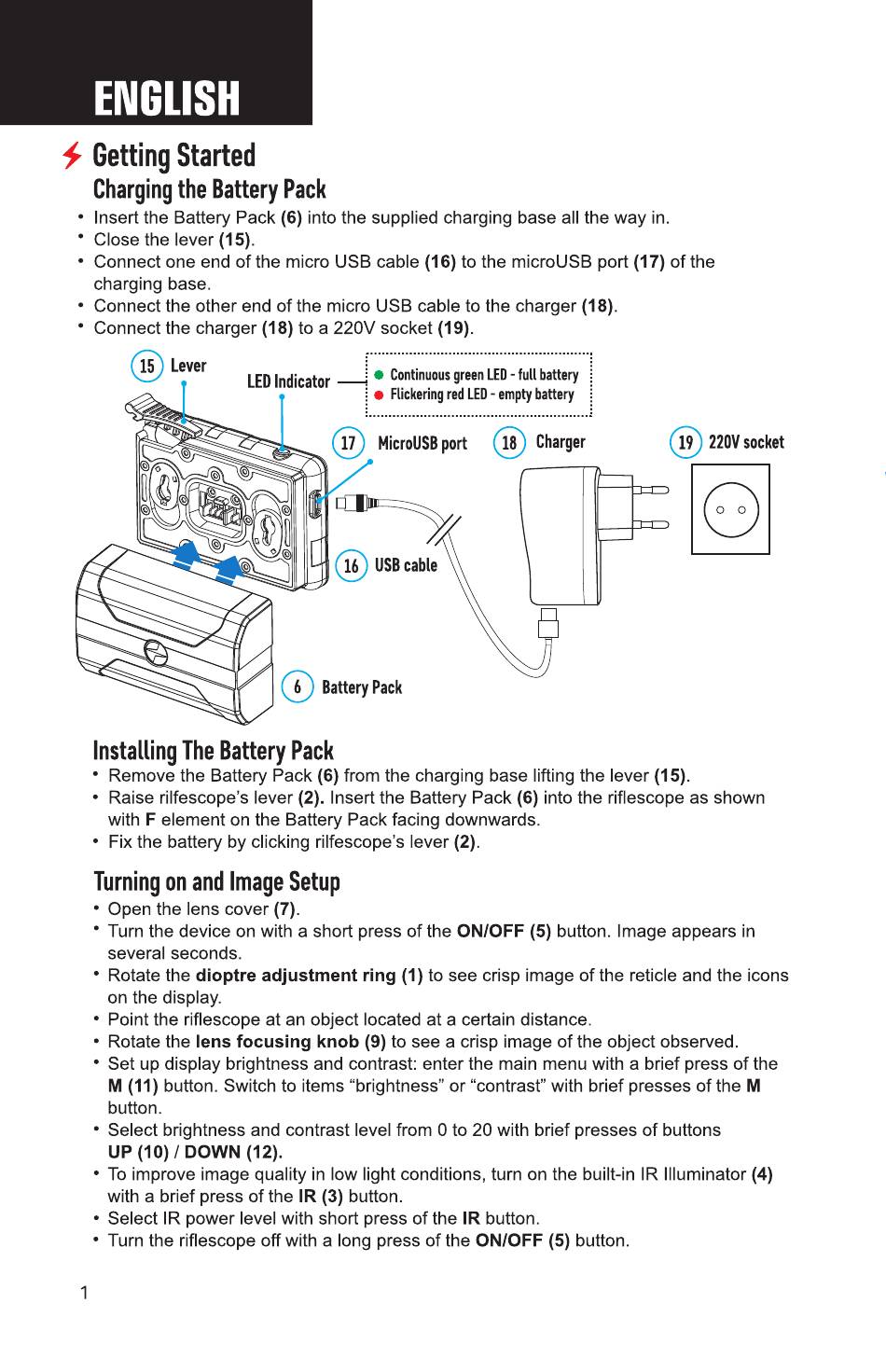

Gettin g Started
Chargin g theBattery Pack
• Insert the Battery Pack (6) into the supplied
• Close the lever (15).
• Connect one end of the micro USB cable (16) to the microlJSB port (17) of the
charging base
• Connect the other end of the micro USB cable to the charger (18)
• Connect the charger (18) to a 220V socket (19).
15 Lever
Installing TheBattery Pack
• Remove the Battery Pack (6) from the charging base lifting the lever (15)
• Raise rilfescope's lever (2). Insert the Battery Pack (6) into the riflescope as shown
with F element on the Battery Pack facing downwards
• Fix the battery by clicking rilfescope's lever (2)
Turning onandImage Setup
• Open the lens cover (7).
• Turn the device on with a short press Of the ON/OFF
several seconds.
• Rotate the dioptre adjustment
on the display
• Point the riflescope at an object located at a certain distance
• Rotate the lens focusing
• Set up display brightness and contrast: enter the main menu with a brief press of the
M (11) button. Switch to items "brightness" or "contrast" with brief presses of the M
button.
• Select brightness and contrast level from Oto 20 with brief presses of buttons
UP (10) / DOWN (12).
• To improve image quality in ow light conditions, turn on the built-in IR Illuminator (4)
with a brief press of the IR (3) button
• Select IR power level with short press of the IR button
• Turn the riflescope off with a long press of the ONIOFF (5) button.
• Continuous green LED - full battery
LED Indicator —
• Flickering r edLED - empty battery
MicroUSBport 18 Charger
17
USB cable
16
6 BatteryPack
ring (1) to see crisp image of the reticle and the icons
knob (9) to see a crisp image of the object observed
charging base all the way in
(5) button
19 socket
mage appears in
