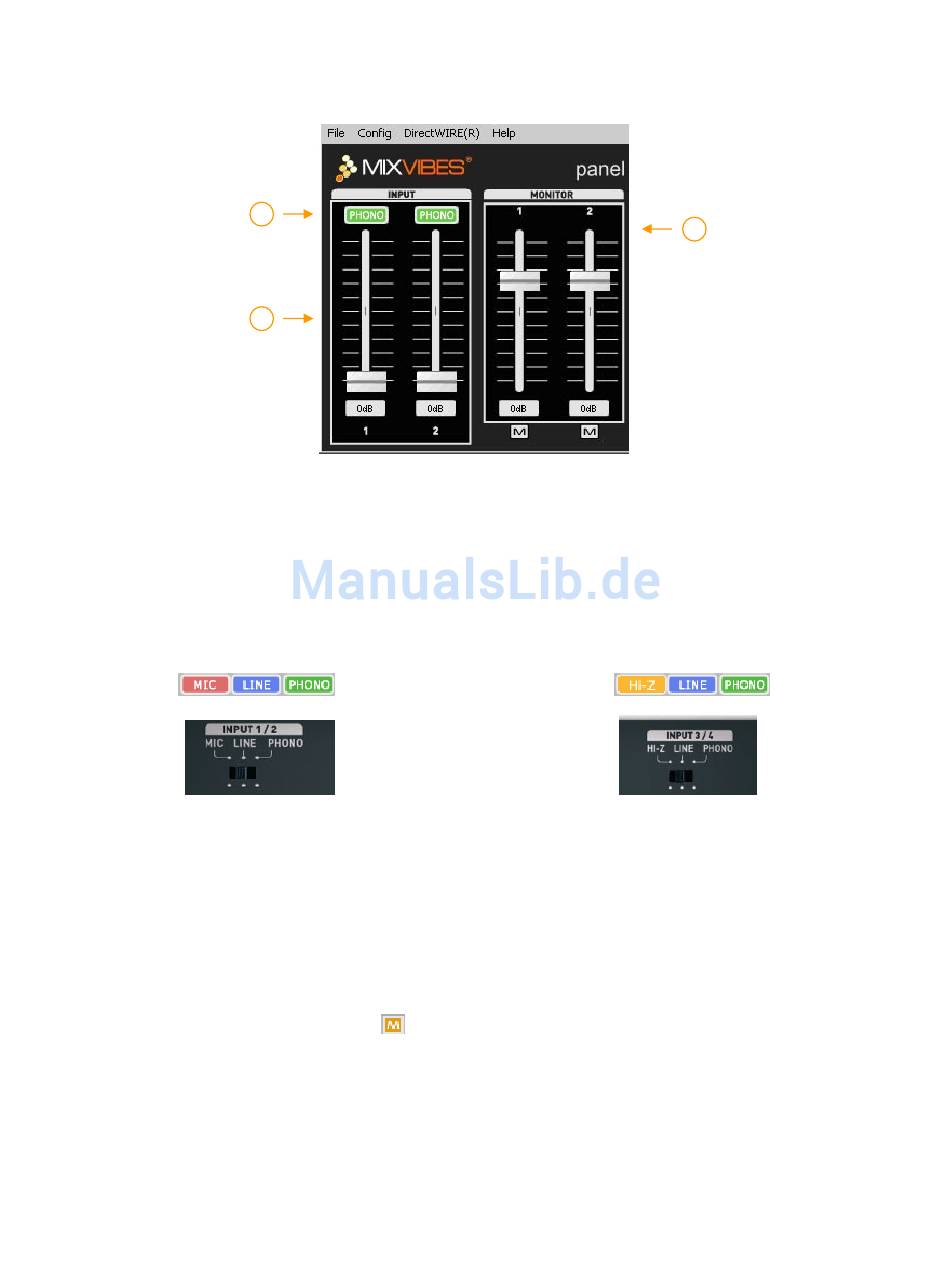

5.2. Input Section

2 2 2 2
3 3 3 3
1 1 1 1
(1) Input
This is where you can increase the input level of the analog input 1/2. The input level 3/4 is
fixed at 0dB. The number on the bottom indicates the relative level in dB
(2) Input source display
This is where you can check current input source selected by the input source selector on the
front panel of U46MKII.
Input CH 1/2 Input CH 3/4
(3) Monitor
This is where you can adjust the input monitoring level of U46MKII. Set the level using the
mouse, mouse wheel, or cursor keys. The number on the bottom indicates the relative level in
dB. You can also select mute button to mute each monitoring input source.
