SOMFY RS100 SOLAR io Kurze Gebrauchsanleitung Seite 2

This drive does not require any maintenance operation.
UP
STOP
These instructions apply to all RS100 SOLAR io drive, the different versions of which are available in the current catalogue.
FIELD OF APPLICATION
The RS100 SOLAR drives are designed to drive all types of roller shutters.
The RS100 SOLAR drives are designed to motorise all types of:
– Window roller shutters with stackable slats which curtain can be lifted at least by 4 cm when an upward force of 150 N is applied to the bottom lath positioned at 16 cm from the fully unrolled position.
– Window roller shutter controlled by a control point without locking, installed within sight of closing but away from moving parts and at a height of at least 1.50 m.
– Window roller shutter with an end closure zone located at a height in excess of 1.80 m from the ground or any permanent access level.
If the roller shutter is equipped with openwork slats, a 5 mm diameter rod must not pass through the openings.
LIABILITY
Please read these instructions carefully before
installing and using the drive. In addition to
following the instructions given in this guide, the
instructions detailed in the attached Safety
instructions document must also be observed.
The drive must be installed by a motorisation and
home automation professional, according to
instructions from Somfy and the regulations
applicable in the country in which it is
commissioned.
It is prohibited to use the drive outside the field of
application described above. Such use, and any
failure to comply with the instructions given in this
guide and in the attached Safety instructions
document, absolves Somfy of any liability and
invalidates the warranty.
The drive must be installed by a professionally qualified person (electrical specialist according to DIN VDE 1000-10) for drives and automations in the building services sector in accordance with the Somfy
instructions and the applicable regulations in the country of commissioning.
The RS100 SOLAR io drive must be installed with a 2.5W SOLAR PANEL (TAPE)or 5.8W SOLAR PANEL (TAPE) and with either 9.6V NIMH BATTERY STICK, 16.8V NIMH BATTERY STICK, , 9.6V NIMH NAKED
BATTERY or 16.8V NIMH NAKED BATTERY .
SAFETY INSTRUCTIONS FOR BATTERY
For information on safe battery installation and use, consult the corresponding battery instructions.
SPECIFIC INSTRUCTIONS FOR ASSEMBLY
RS100 SOLAR io : interior diameter of the tube has to be Ø 47 mm or greater.
Radio frequency
Frequency bands and Maximum power used
Power supply
Operating temperature
SOMFY ACTIVITES SA, 74300 CLUSES FRANCE as manufacturer hereby declares that the drive covered by these instructions and used as intended according to these instructions is in compliance with
the essential requirements of the applicable European Directives and in particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at www.somfy.com/ce. Philippe Geoffroy, Approval manager, acting on behalf of Activity director, Cluses, 03/2023.
We care about our environment. Do not dispose of the appliance with usual household waste. Give it to an approved collection point for recycling.
Somfy limited, Yeadon LS19 7ZA UK hereby declares that the drive covered by these instructions when marked for input voltage 230V~50Hz and used as
intended according to these instructions, is in compliance with UK legislation of Machinery safety regulations S.I.2008 N°1597 and the Radio Equipment
Regulations S.I. 2017 N°1206. The full text of the UKCA declaration of conformity is available at www.somfy.co.uk. Steven MONTGOMERY, Managing
Director Somfy Ltd UK & Ireland, Yeadon, 03/2023.
SOMFY ACTIVITES SA 50 avenue du Nouveau Monde, 74300 CLUSES FRANCE
Images are not contractually binding - 100% recycled paper - Copyright © 2023. All rights reserved. SOMFY ACTIVITES SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy, 303.970.230 - 03/2023
USE
DOWN
MY
INSTRUCTIONS TO BE RESPECTED
The installer must inform its customers of the
operating and maintenance conditions for the drive
and must provide them with the instructions for use
and maintenance, and the attached Safety
instructions document, after installing the drive.
Any After-Sales Service operation on the drive
must be performed by a motorisation and home
automation professional.
If in doubt when installing the drive, or to obtain
additional information, contact a Somfy adviser or
go to the website www.somfy.com.
868-870 MHz io-homecontrol® two-way Tri-band.
868.000 MHz - 868.600 MHz e.r.p. <25 mW
868.700 MHz - 869.200 MHz e.r.p. <25 mW
869.700 MHz - 870.000 MHz e.r.p. <25 mW
9.6 V DC for 3 Nm / 6 Nm / 10 Nm drives
16.8 V DC for 15 Nm / 20 Nm drives
-20 °C to 70 °C

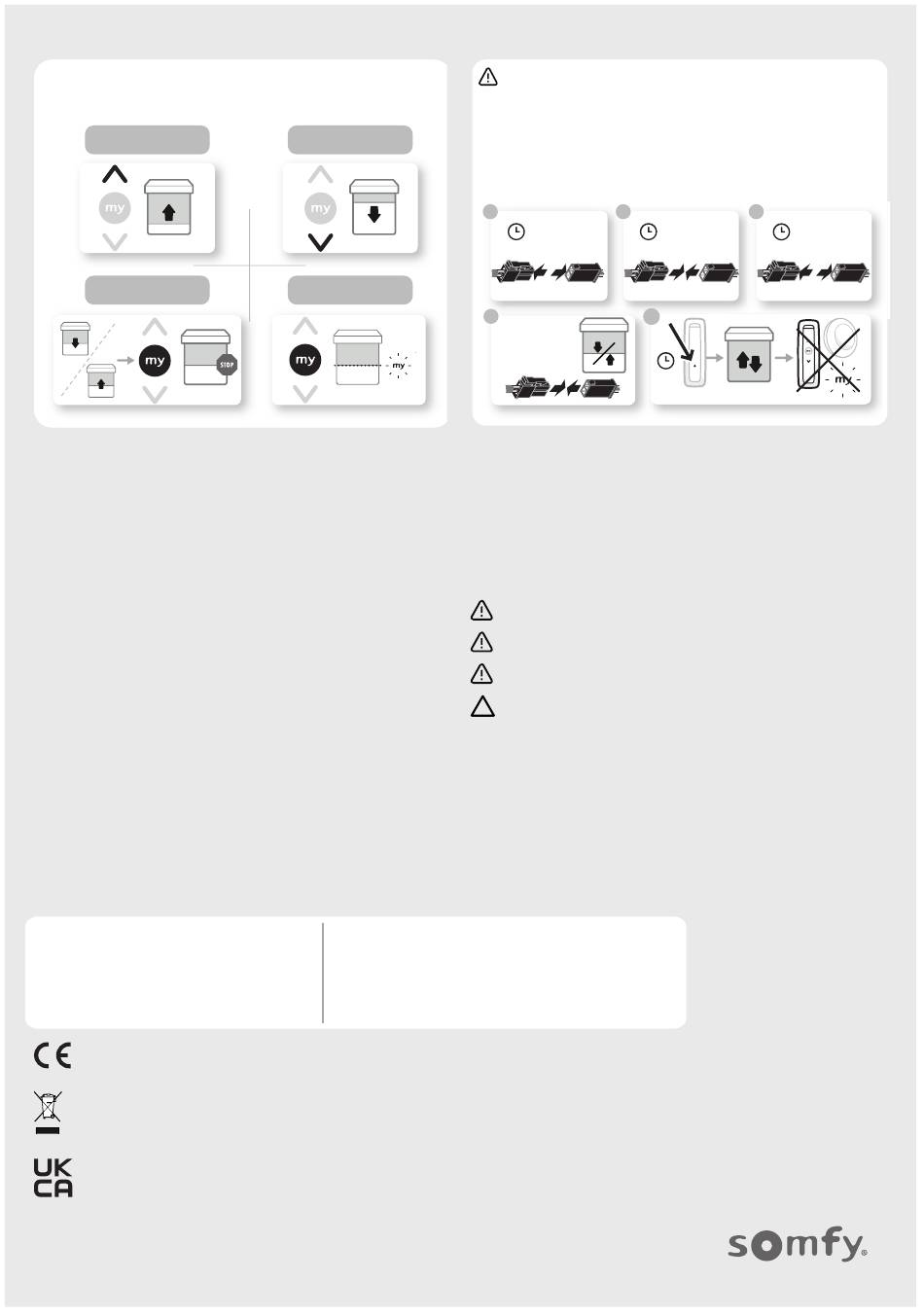

DRIVE RESETTING
Apply the double cutout only for the end-product to be reset.
This reset deletes all programmed control points, all sensors, all end
limit settings and resets the favourite (my) position for the drive.
Before performing the following steps, disconnect the solar panel
and reconnect it after the last step.
1 2
OFF
5 - 15 s
2 s
4
ON
SAFETY INSTRUCTIONS FOR WIRING
Cables which pass through a metal wall must be protected and isolated using a sheath or sleeve.
Attach cables to prevent any contact with moving parts.
Leave the drive power supply cable accessible: it must be possible to replace it easily.
Always make a loop in the power supply cable to prevent water entering the drive.
