PRODUCT DESCRIPTION
CONTENTS OF THE BOX
Remove the product and accessories from
the box and ensure that all items are
present. Next, inspect the product to ensure
that it has not suffered any breakage or
damage during transport. Do not discard the
packaging material until you have carefully
inspected the product and used it
satisfactorily.
ATTENTION: If any part is missing or
damaged, contact the Official Technical
Service. Do not use this product without
replacing the part. Using this product with
damaged or missing parts may cause
serious injury to the operator.
The box contains the following elements:
•
Wheels x2
•
Axis x2
•
Safety pin x2
•
High pressure hose x1
•
Manual spray gun x1
•
Spray lance x1
•
High pressure nozzle x3
•
Low pressure nozzle (black) x1
•
Carrying stand x1
•
Filling hose with funnel x1
•
Nozzle cleaning needle x1
•
Spark plug wrench x1
•
Quick connect adapter x1
•
Hose connection adapter x1
•
Mounting material x1
•
Screwdriver x1
•
Turbo nozzle x1
•
Instruction manual x1
A
B
C
D
E
F
G
H
I
J
M
N
K
L

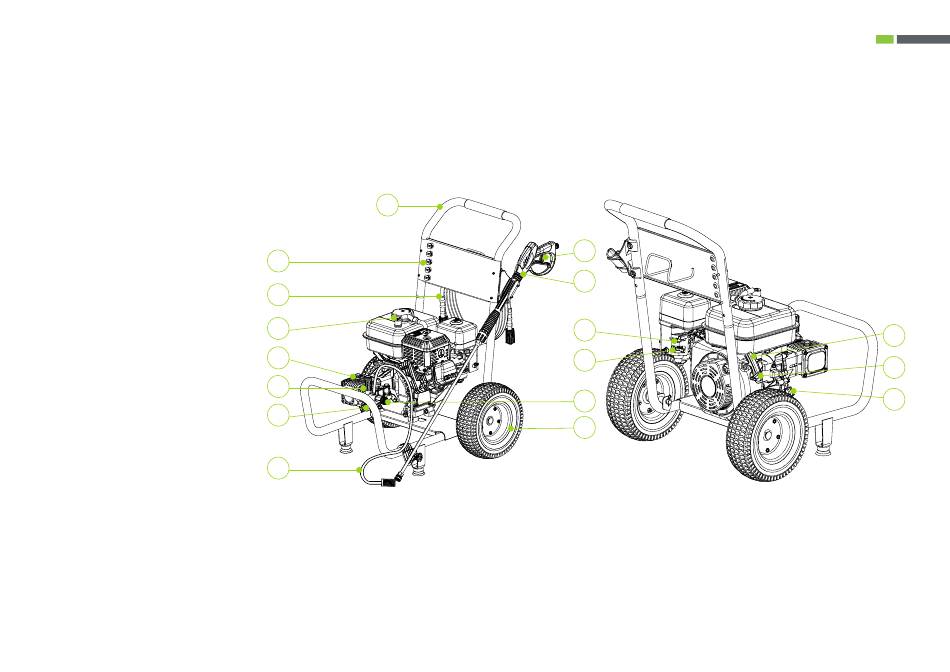

COMPONENTS
A - Top handle
B - Nozzles
C - High pressure hose
D - Fuel tank and cap
E - Transport cap
F - Unloader adjustment
G - Water inlet
H - Siphon tube with filter
I - Locking trigger
69
EN - JET380X
O
P
Q
J - Spray gun
K - High pressure hose outlet
L - Tyres
M - Choke
N - Fuel valve lever
O - Traction cable
P - On/Off switch
Q - Oil filler and dipstick
