TACOFLOW3 MAX / MAX PRO
MAX PRO Mod.
Change the circulator performance (head) accordingly, using the SET, DOWN and UP buttons.
LED
TacoAdapt™
TacoAdapt™ (*)
Purple (**)
Constant curve
(C1 - C2 - C3 - C4 - C5)
Orange (**)
Proportional curve
(P1 - P2 - P3 - P4 - P5)
Green (**)
MIN - MAX Variable
Power Curve
(0 to 100%)
Blue (**)
0-10 V or PWM
external input
Yellow (**)
Constant curve
(C1 - C2 - C3 - C4 - C5)
(*) Default Setting
(**) It turns white to indicate there is air in the system or red to indicate there is an error
12
| Quick Guide
Function
1) Press the SET button for 2 s, the LED indicating the
2) Press the UP or DOWN buttons to select the new
3) Press the SET button to confirm the desired operating
Proportional curve
(P1 - P2 - P3 - P4 - P5)

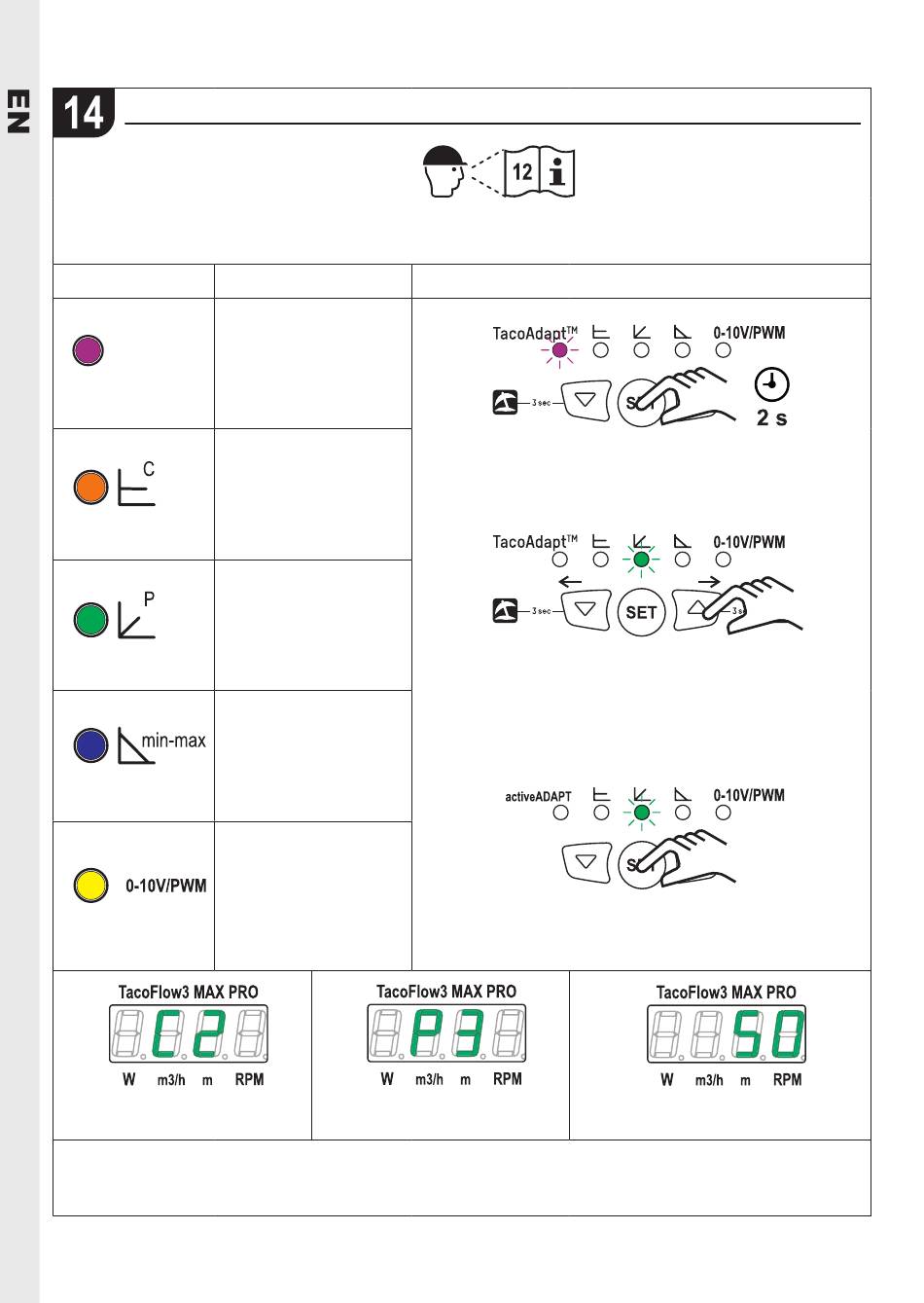

SETTING THE CIRCULATOR
Setting
operating status starts to flash quickly.
operating mode and the desired value for the con-
stant, proportional and variable power curves (see
display below).
mode and value.
MIN - MAX Variable Power
Curve (0 to 100%)
