USER'S MANUAL

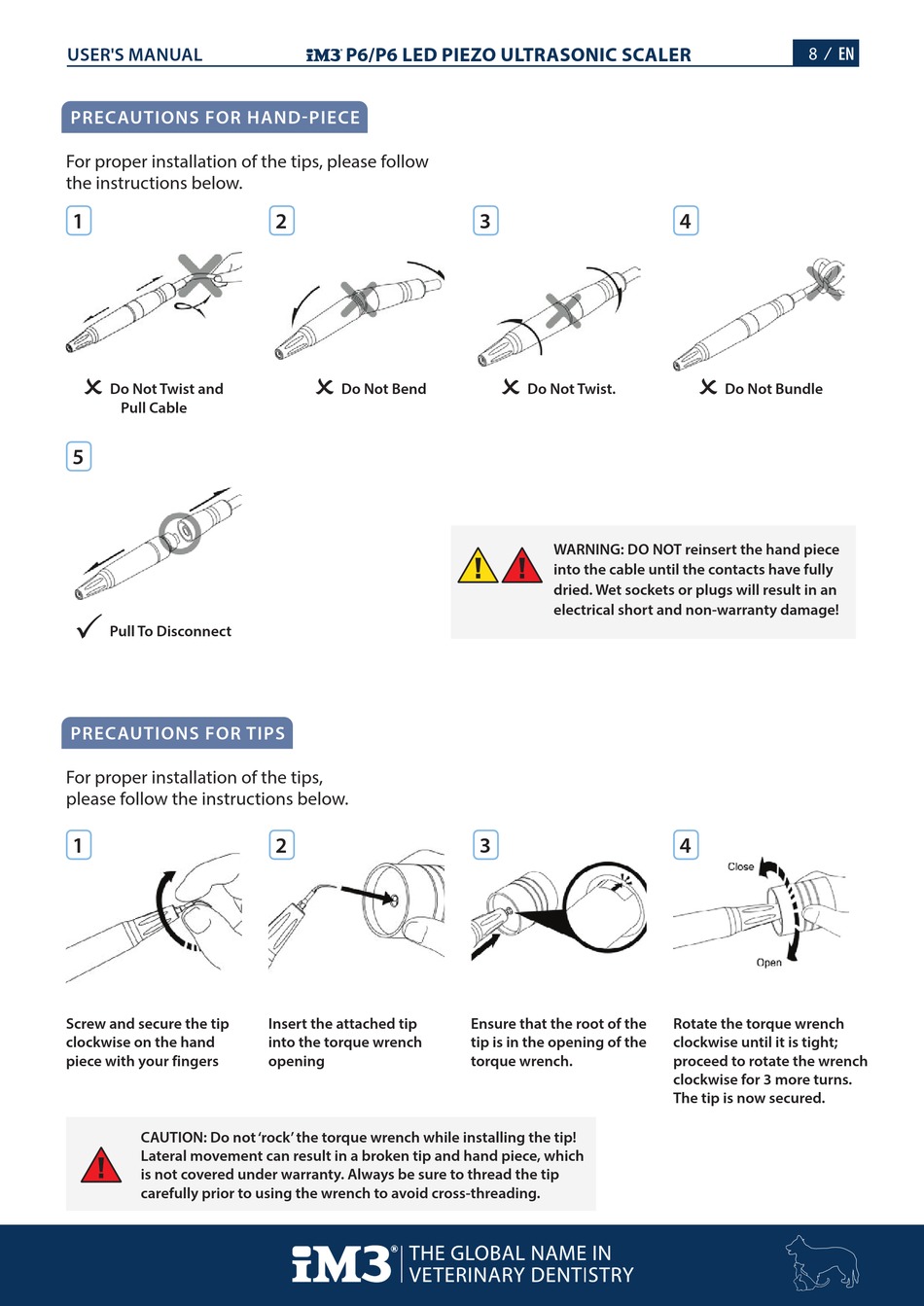

PRECAUTIONS FOR HAND-PIECE

For proper installation of the tips, please follow
the instructions below.
1
Do Not Twist and
Pull Cable
5
Pull To Disconnect

PRECAUTIONS FOR TIPS

For proper installation of the tips,
please follow the instructions below.
1
Screw and secure the tip
clockwise on the hand
piece with your fingers
CAUTION: Do not 'rock' the torque wrench while installing the tip!
Lateral movement can result in a broken tip and hand piece, which
is not covered under warranty. Always be sure to thread the tip
carefully prior to using the wrench to avoid cross-threading.
P6/P6 LED PIEZO ULTRASONIC SCALER
2
Do Not Bend
2
Insert the attached tip
into the torque wrench
opening
3
Do Not Twist.
WARNING: DO NOT reinsert the hand piece
into the cable until the contacts have fully
dried. Wet sockets or plugs will result in an
electrical short and non-warranty damage!
3
Ensure that the root of the
tip is in the opening of the
torque wrench.
8 � EN
4
Do Not Bundle
4
Rotate the torque wrench
clockwise until it is tight;
proceed to rotate the wrench
clockwise for 3 more turns.
The tip is now secured.
