USER'S MANUAL

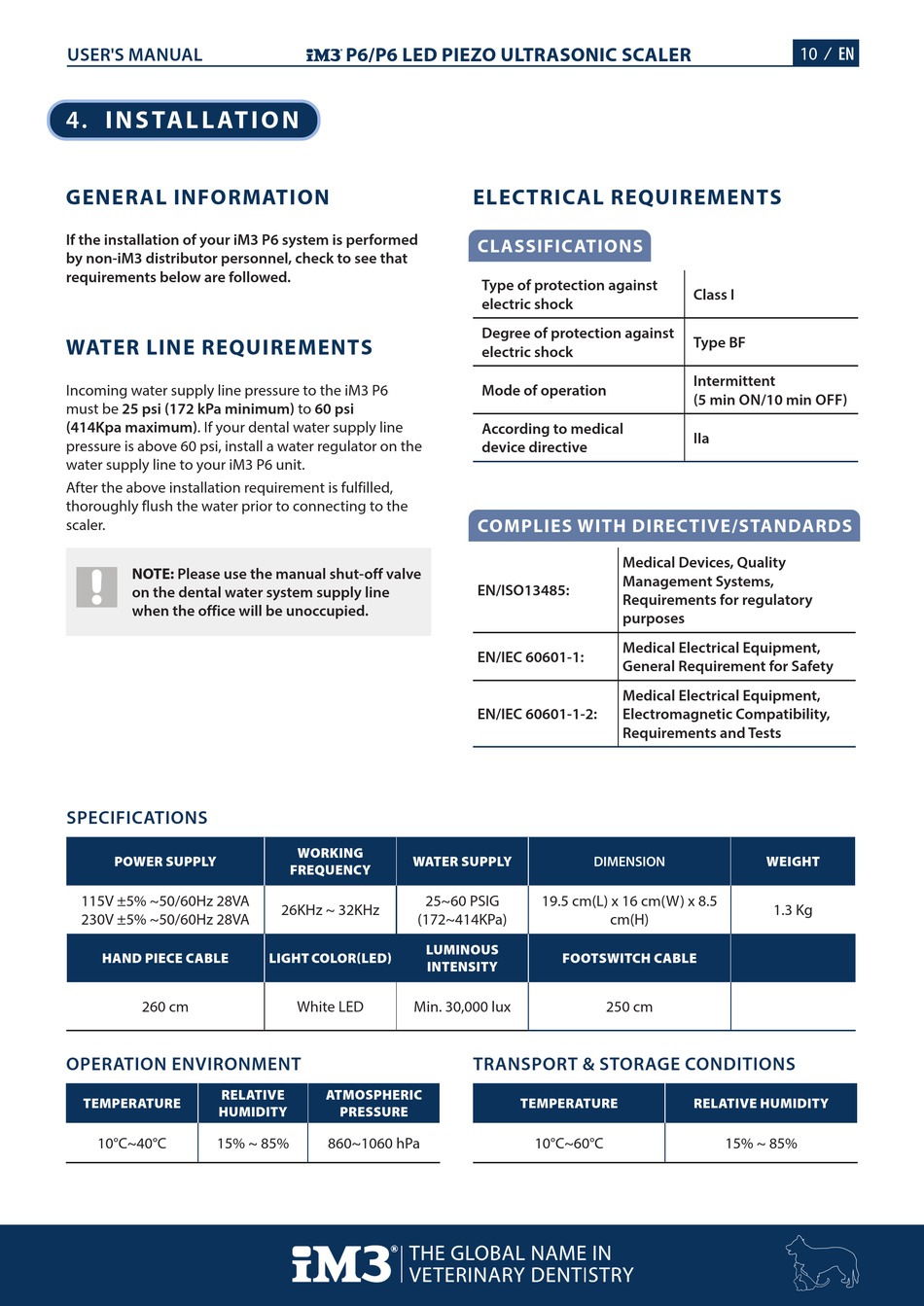

4. I N S TA L L AT I O N

GENERAL INFORMATION

If the installation of your iM3 P6 system is performed
by non-iM3 distributor personnel, check to see that
requirements below are followed.

WATER LINE REQUIREMENTS

Incoming water supply line pressure to the iM3 P6
must be 25 psi (172 kPa minimum) to 60 psi
(414Kpa maximum). If your dental water supply line
pressure is above 60 psi, install a water regulator on the
water supply line to your iM3 P6 unit.
After the above installation requirement is fulfilled,
thoroughly flush the water prior to connecting to the
scaler.
NOTE: Please use the manual shut-off valve
on the dental water system supply line
when the office will be unoccupied.
SPECIFICATIONS
POWER SUPPLY
115V ±5% ~50/60Hz 28VA
230V ±5% ~50/60Hz 28VA
HAND PIECE CABLE
260 cm
OPERATION ENVIRONMENT
RELATIVE
TEMPERATURE
HUMIDITY
10°C~40°C 15% ~ 85%
P6/P6 LED PIEZO ULTRASONIC SCALER
WORKING
WATER SUPPLY
FREQUENCY
25~60 PSIG
26KHz ~ 32KHz
(172~414KPa)
LUMINOUS
LIGHT COLOR(LED)
INTENSITY
White LED Min. 30,000 lux
ATMOSPHERIC
PRESSURE
860~1060 hPa

ELECTRICAL REQUIREMENTS

CLASSIFICATIONS

Type of protection against
electric shock
Degree of protection against
electric shock
Mode of operation
According to medical
device directive

COMPLIES WITH DIRECTIVE/STANDARDS

Medical Devices, Quality
Management Systems,
EN/ISO13485:
Requirements for regulatory
purposes
Medical Electrical Equipment,
EN/IEC 60601-1:
General Requirement for Safety
Medical Electrical Equipment,
EN/IEC 60601-1-2: Electromagnetic Compatibility,
Requirements and Tests
DIMENSION
19.5 cm(L) x 16 cm(W) x 8.5
cm(H)
FOOTSWITCH CABLE
250 cm
TRANSPORT & STORAGE CONDITIONS
TEMPERATURE
10°C~60°C
10 � EN
Class I
Type BF
Intermittent
(5 min ON/10 min OFF)
IIa
WEIGHT
1.3 Kg
RELATIVE HUMIDITY
15% ~ 85%
