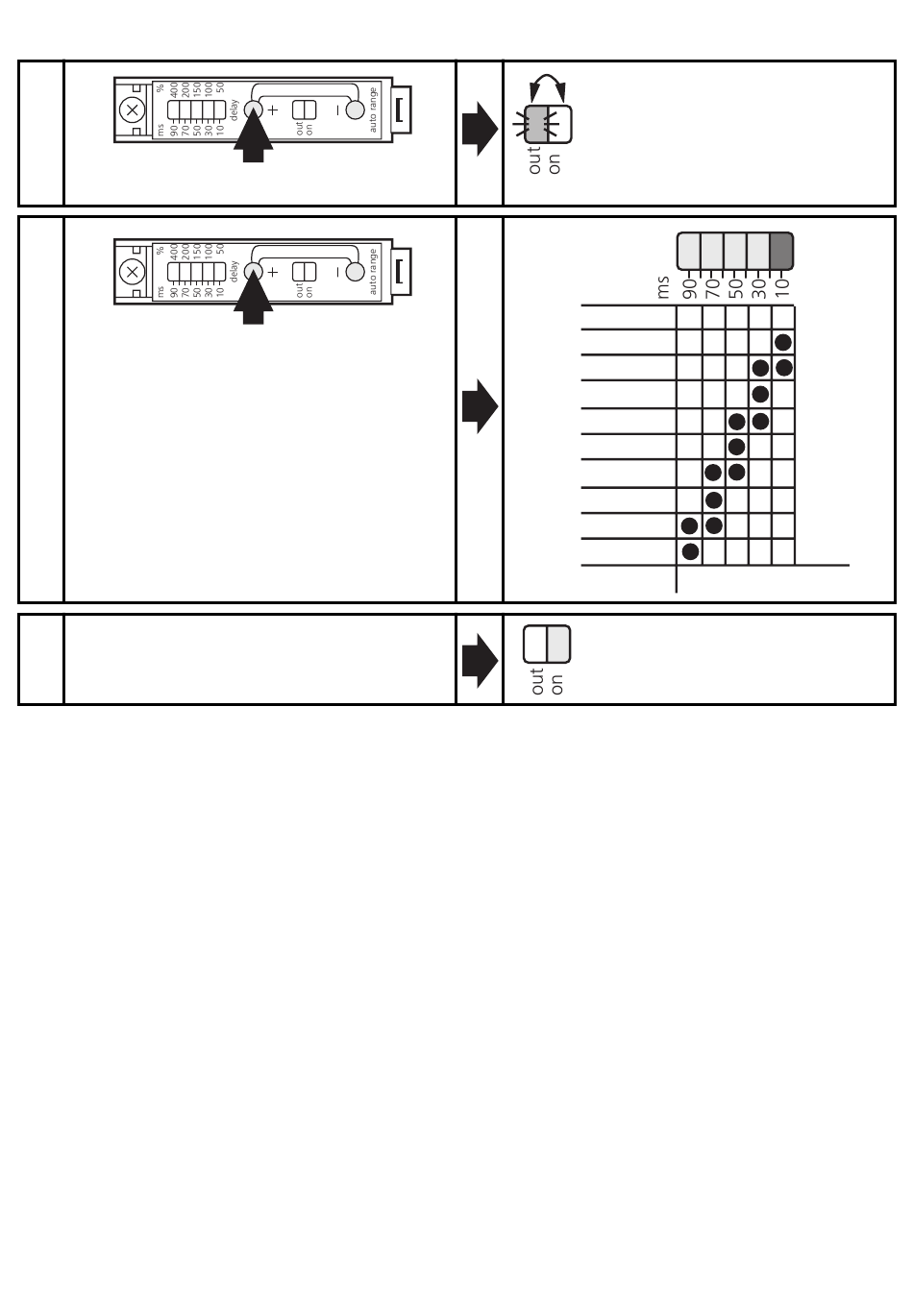

Adjust of the pulse stretching
1
Press until the row of LEDs flashes.
Press the "+" or "-" button to set
the desired delay time
2
(here: increasing delay time).
1 x = about 1ms;
hold the button pressed for fast
3
Wait for approx. 10s.
Operation
Only open the cover to make adjustments. Close it after the adjust-
ment has been made in order to maintain the protection IP65.
Check whether the unit functions properly. Indication by LEDs and by
the function check output:
• Red LED lights: wrong sensing of the object (maladjustment, soiling
of the lens).
• Row of LEDs flashes qickly: output short-circuited / slowly: internal
malfunction.
The function check output switches in the case of
• wrong sensing of the object (maladjustment, soiling of the lens),
reset after the object has been sensed again properly;
• a short circuit of the switching output, reset about 4s after the fault
has been eliminated.
16
manual range
manual range
setting.
Yellow and green LEDs
flash alternately
(= unit is in the
programming mode).
0
2 - 10
11 - 20
21 - 30
31 - 40
41 - 50
51 - 60
61 - 70
71 - 80
81 - 90
time (ms) lit LEDs
Green LED lights
(= unit is in the
operating mode).
