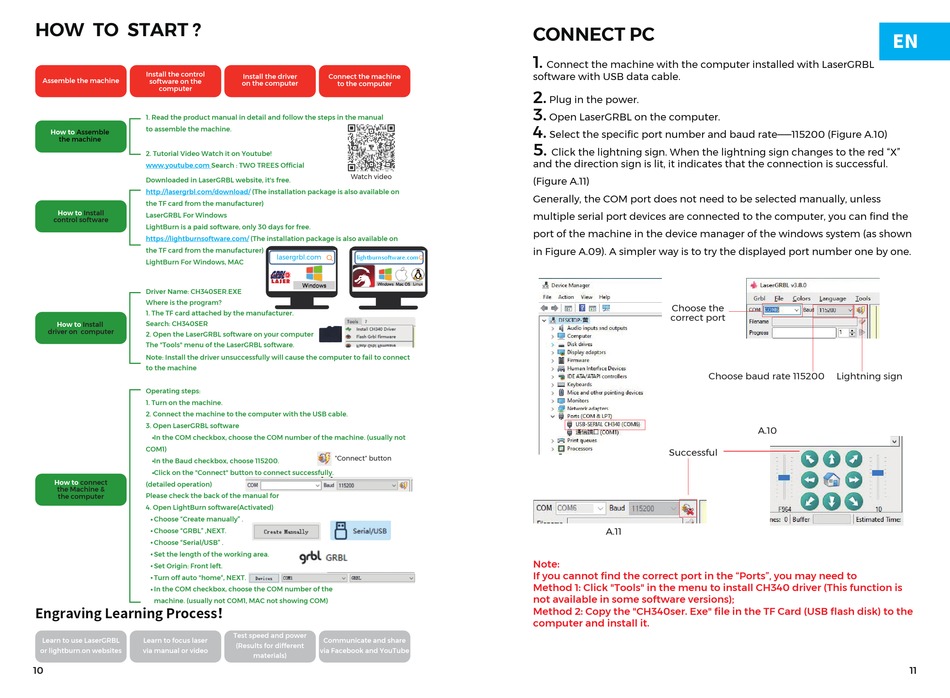

HOW TO START ?
Install the control
Assemble the machine
software on the
computer
1. Read the product manual in detail and follow the steps in the manual
to assemble the machine.
How to Assemble
the machine
2. Tutorial Video Watch it on Youtube!
www.youtube.com Search : TWO TREES Official
Downloaded in LaserGRBL website, it's free.
http://lasergrbl.com/download/
the TF card from the manufacturer)
How to Install
LaserGRBL For Windows
control software
LightBurn is a paid software, only 30 days for free.
https://lightburnsoftware.com/
the TF card from the manufacturer)
LightBurn For Windows, MAC
Driver Name: CH340SER.EXE
Where is the program?
1. The TF card attached by the manufacturer.
Search: CH340SER
How to Install
driver on computer
2. Open the LaserGRBL software on your computer
The "Tools" menu of the LaserGRBL software.
Note: Install the driver unsuccessfully will cause the computer to fail to connect
to the machine
Operating steps:
1. Turn on the machine.
2. Connect the machine to the computer with the USB cable.
3. Open LaserGRBL software
In the COM checkbox, choose the COM number of the machine. (usually not
COM1)
In the Baud checkbox, choose 115200.
Click on the "Connect" button to connect successfully.
How to connect
(detailed operation)
the Machine &
Please check the back of the manual for
the computer
4. Open LightBurn software(Activated)
Choose "Create manually" .
Choose "GRBL" ,NEXT.
Choose "Serial/USB" .
Set the length of the working area.
Set Origin: Front left.
Turn off auto "home", NEXT.
In the COM checkbox, choose the COM number of the
Engraving Learning Process！
machine. (usually not COM1, MAC not showing COM)
Learn to use LaserGRBL Learn to focus laser
or lightburn.on websites via manual or video
10
Install the driver Connect the machine
on the computer to the computer
Watch video
(The installation package is also available on
(The installation package is also available on
lasergrbl.com lightburnso�ware.com
"Connect" button
Test speed and power
Communicate and share
(Results for different
via Facebook and YouTube
materials)
CONNECT PC
1.
Connect the machine with the computer installed with LaserGRBL
software with USB data cable.
2.
Plug in the power.
3.
Open LaserGRBL on the computer.
4.
Select the specific port number and baud rate——115200 (Figure A.10)
5.
Click the lightning sign. When the lightning sign changes to the red "X"
and the direction sign is lit, it indicates that the connection is successful.
(Figure A.11)
Generally, the COM port does not need to be selected manually, unless
multiple serial port devices are connected to the computer, you can find the
port of the machine in the device manager of the windows system (as shown
in Figure A.09). A simpler way is to try the displayed port number one by one.
Choose the
correct port
Choose baud rate 115200
Successful
A.11
Note:
If you cannot find the correct port in the "Ports", you may need to
Method 1: Click "Tools" in the menu to install CH340 driver (This function is
not available in some software versions);
Method 2: Copy the "CH340ser. Exe" file in the TF Card (USB flash disk) to the
computer and install it.
EN
Lightning sign
A.10
