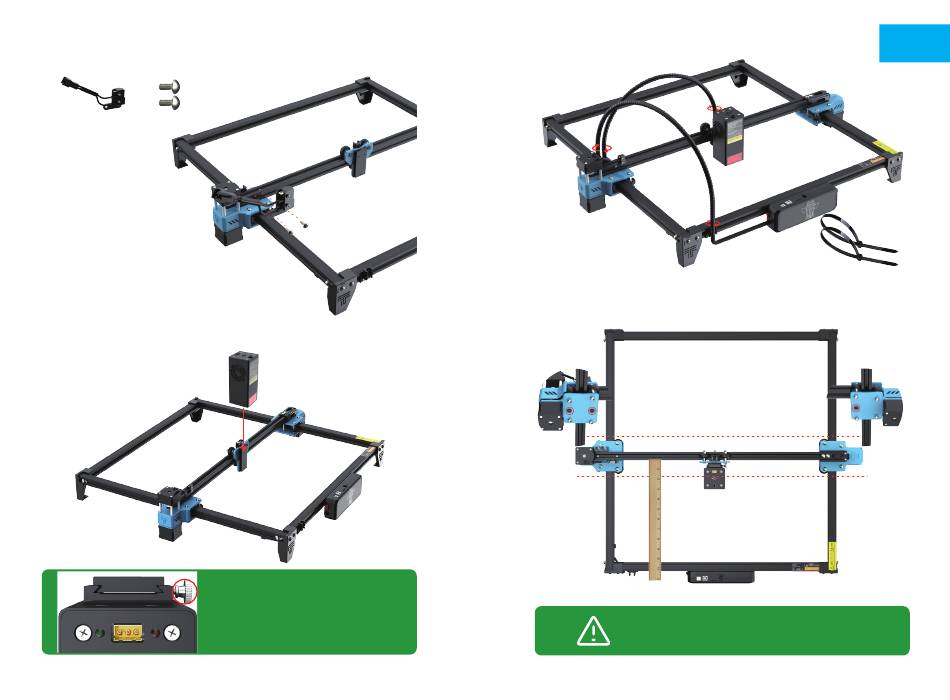

ASSEMBLING THE MACHINE
Installation of X-axis End Stop
X-axis End Stop M3 X 6
Installation Laser Modul
Push into the groove according to the shape of
the slider. If you cannot push in the slider,please
adjust the hand screw.
04
Laser Module
SET UP TTS-20 PRO
Bellows fixing
Secure the bellows to the seat, which can be fixed with a tie.
Adjustment of X-axis parallelism
The package does
not include the ruler.
Adjustment by loosening the screw at the bottom.
The X-axis beam needs to be guaranteed to be parallel,
otherwise it will not engrave properly.
EN
Behind the
laser module
"Cable tie (in the kit)"
05
