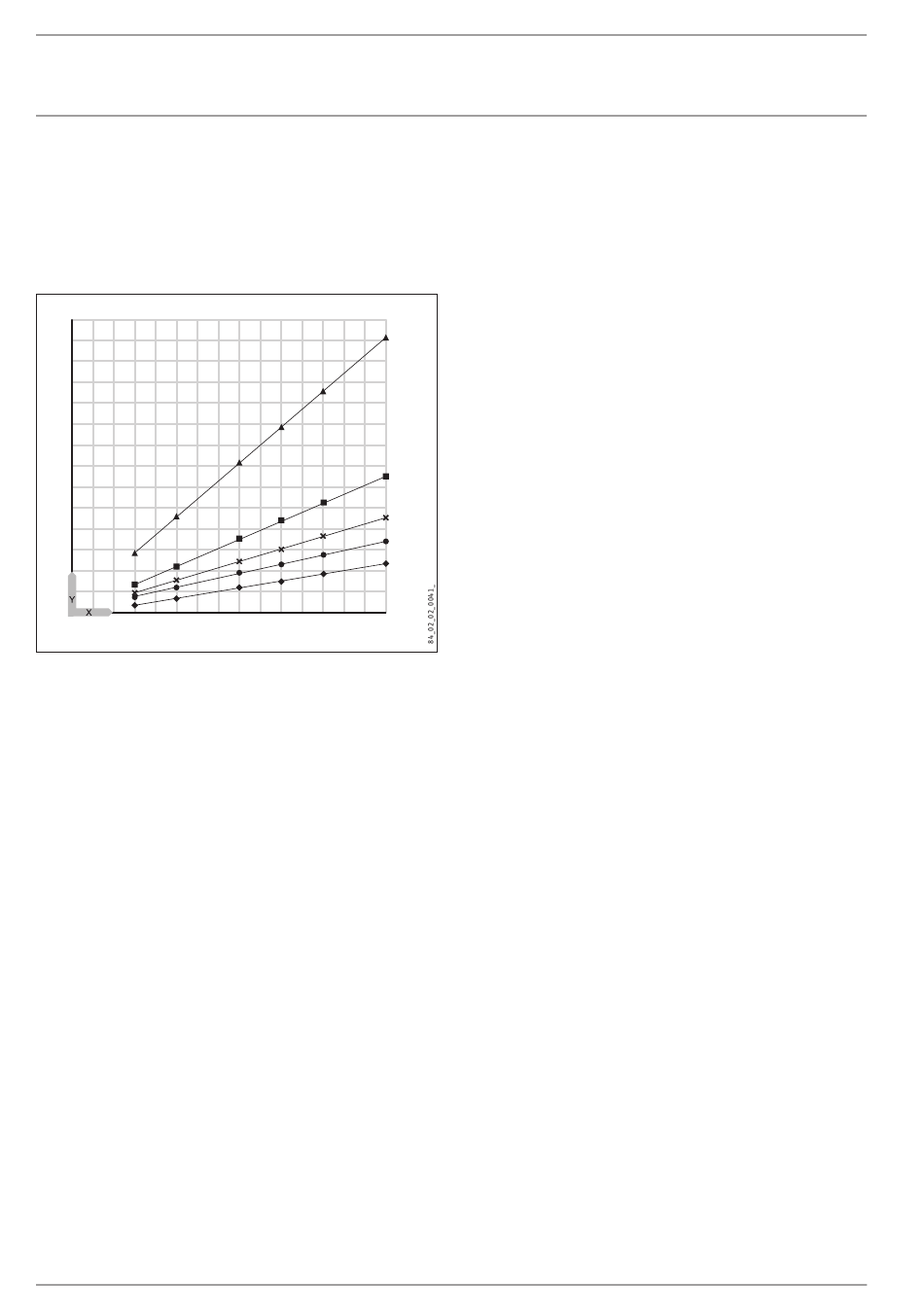

16.3 Heat-up diagram
The heat-up time depends on the cylinder capacity, cold water
inlet temperature and heating output.
Diagram with 15 °C cold water temperature:
set temperature setting 82 °c
14
12
10
8
6
4
2
30 50
X Nominal capacity [I]
Y Duration [h]
1 1 kW
2 2 kW
3 3 kW
4 4 kW
5 6 kW
16.4 Fault conditions
In the event of a fault, temperatures of up to 95 °C at 0.6 MPa
can occur.
