2
1
1. Programming
2. Select 'value'
3. Select 'digit'
4. Store value

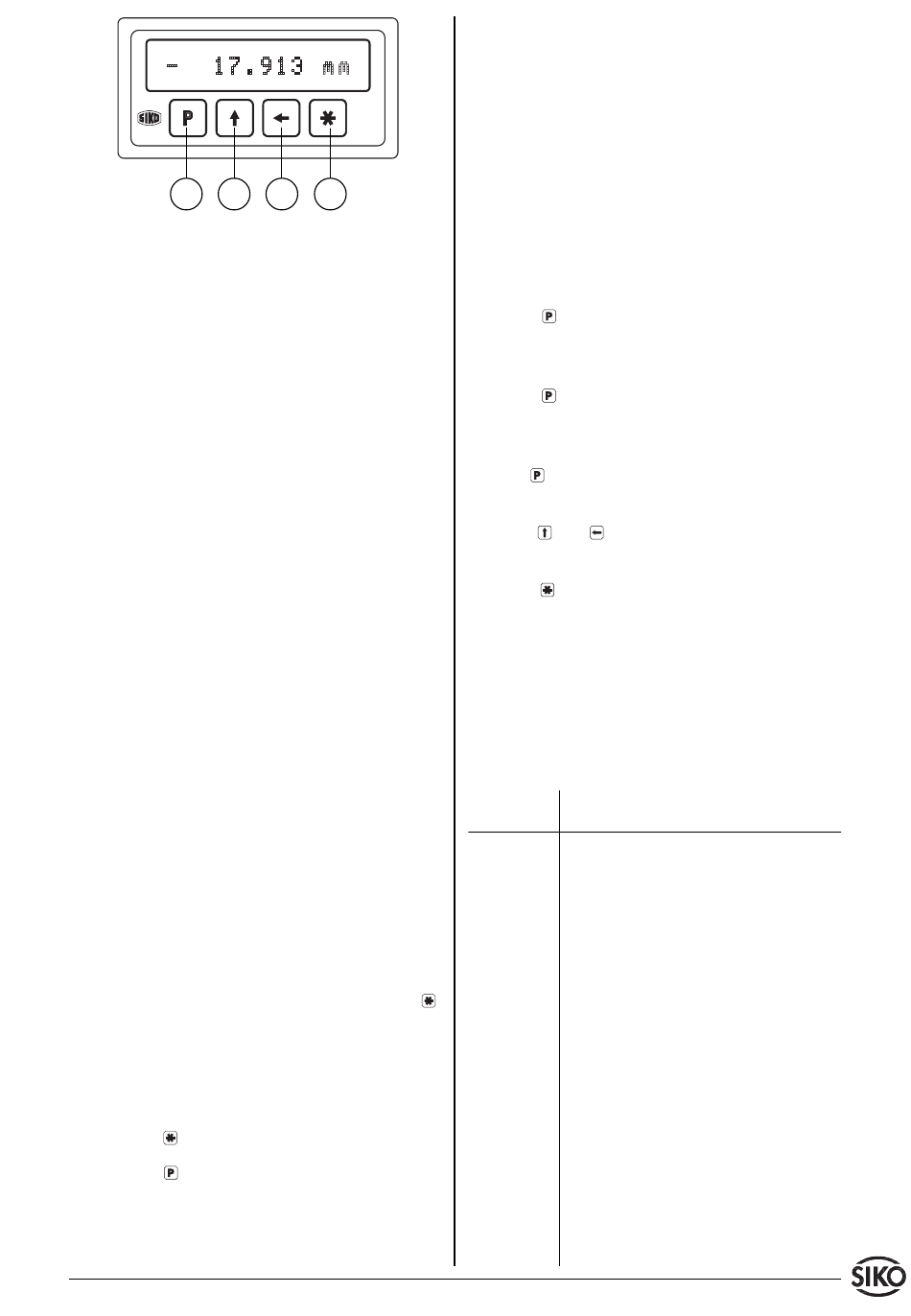

Fig. 4: Key functions
When switched on
and correctly connected:
• the device name is displayed (for approx.1,5 s)
• the software version (eg. 1.00) is displayed
Subsequently the specific parameters of the machi-
ne can be programmed.
Operating modes
There are two operating modes accessible via the
keyboard:
1. Programming mode: to program the display at
initial installation.
2. Input mode: to enter parameters/select functions
used during standard operation.
6. Sensor Calibration
In order to minimize possible offset errors within
the sensor system, the sensor must be calibrated
before the first use of the system or if one system
component (display, sensor, magnetic strip) is
exchanged.
For calibration, please proceed as follows:
1. Menu point "CALIBR.:" in the programming menu
must be set to "ON" and then confirmed by the -
key.
2. Move sensor slowly (max. 10mm/s) over at least
10mm in one direction. The displayed values (eg.
"OC-001 +004") will then not change anymore.
3. Press key
for storing.
4. Press key
to finish / leave calibration.
MA100/1
Datum 31.03.2003
4
3
Art.Nr. 79918
7. Programming mode
The MA100/1 is either pre-programmed to standard
values at our works or, if the order defines custo-
mer-specific parameters, these will be pre-program-
med at SIKO. Enter programming mode for parame-
ter modification / programming. Normally pro-
gramming is only necessary at initial installation.
Parameters can be modified and checked at any
time. They are stored in a non-volatile memory.
Each parameter's designation, function and value
range is shown in tables on the following pages.
To enter into programming mode:
Press key
for at least 1...30 s, depending on
key programming (see below).
To leave programming mode:
Press key
until the end of the parameter list is
reached.
To scroll parameter information:
Use key
To change parameters:
Use keys
and
To store modified parameters:
Press key , then message "SAVING..." will be
briefly displayed.
8. Parameter description
At the end of this user information brochure you
will find a detailed parameter list showing all
programmable parameters and offering space for
customer-specific programming values .
Display
Designation / description
"choice"
RESOL:
Resolution: to determine the reso-
lution of the display. Display can be
made in [mm] or [inch]. Parameter
"FREE" allows the programming of a
calculating factor.
FAC:
Calculating factor: used to obtain
for example an angle display. Basis
is the maximal possible resolution
of 1/1000 mm. The calculation fac-
tor which has to be programmed =
measuring range to be displayed /
total working range [1/1000 mm].
Example: angle measurement on a
circular disk with a display range of
0 to180°; display in 1/100°; cir-
cumference of the circular disk
942,48 mm; hence total working
range 471,240 mm;
FAC = 18000 / 471240 = 0,03820
Z.Nr. 8664079
Änd.Stand 118/03
9
