8.3 CAB 2030

B
C1
D
C2
A

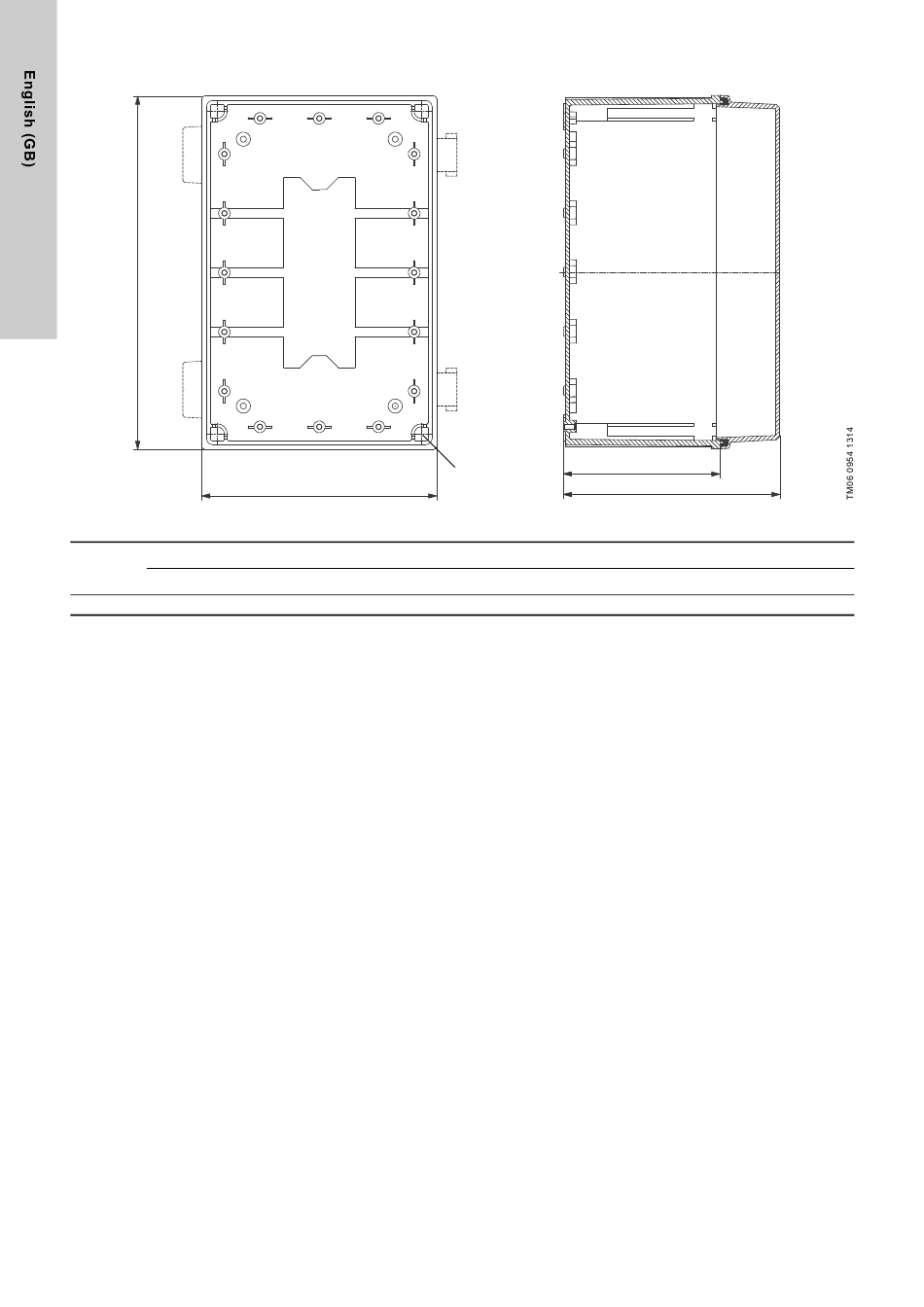

Fig. 3 CAB 2030 enclosure
A* B C1 C2 D Mounting holes IP class
CAB 2030
[mm] [mm] [mm] [mm] [mm] [mm] -
∅4.5
200 300 132 182 172 x 272 IP66 / IP67
* Maximum width (A) including sockets at 231 mm.
