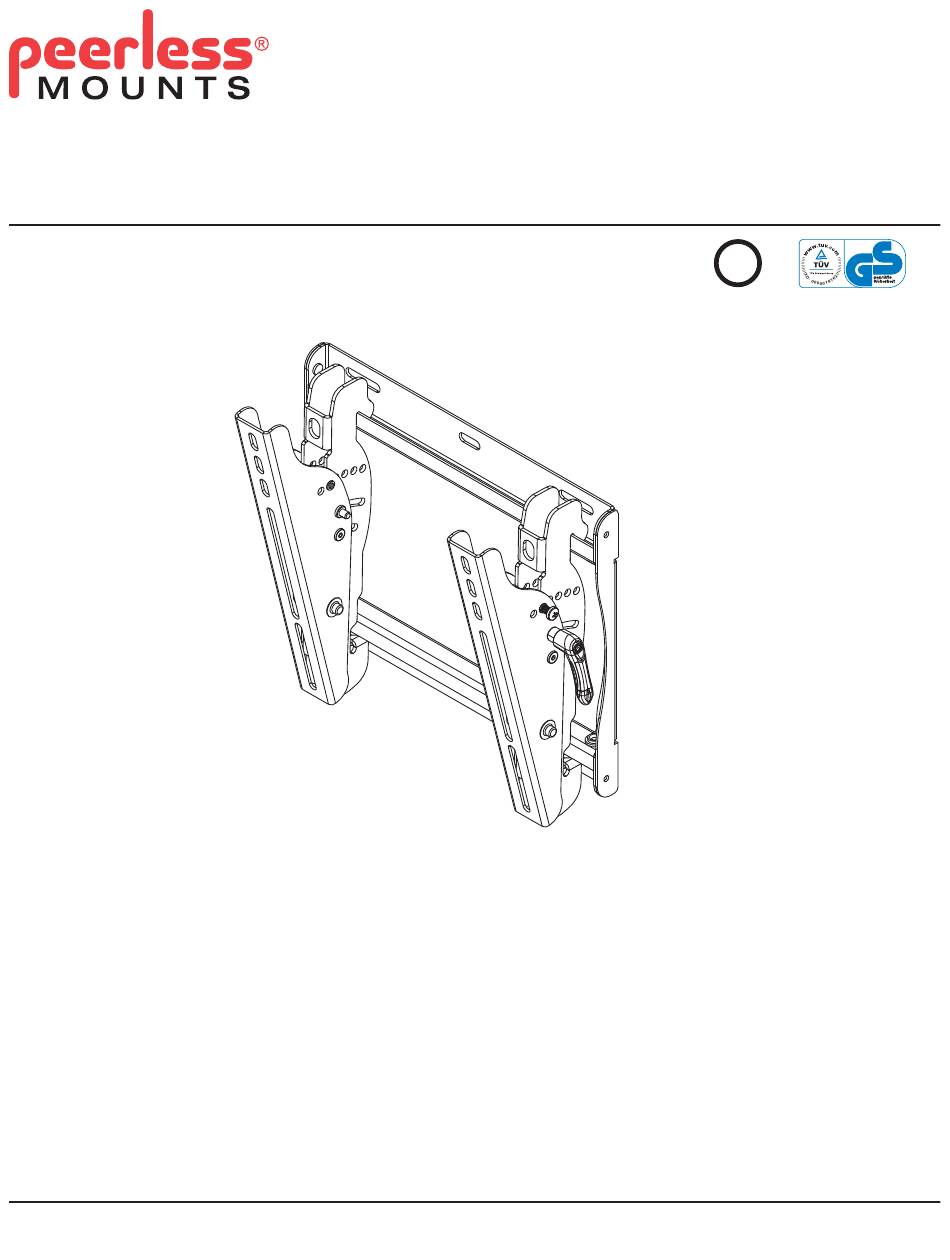

PEERLESS SmartMount ST635 Anbringung Und Zusammenbau

Installation and Assembly:
®
SmartMount Universal Tilt Wall Mount for 13" - 37"
(33 - 94 cm) Flat Panel Displays
Models: ST635, ST635-S, ST635P, ST635P-S
U L
C US
©
Max UL Load Capacity: 125 lb (57 kg)
Features:
• For virtually all 13" - 37" (33 - 94 cm) fl at panel displays
• Universal mount fi ts displays with mounting hole patterns up to 245 x 240mm (9.65" W x 9.48" H)
• Display held only 2.65" (67mm) from wall for a discreet installation
• Open wall plate design allows for greater wall and an array of cable management options
• Universal tilt brackets easily hook onto the wall plate for fast installation
• Adjustable up to 15° of forward tilt and up to -5° backward tilt for optimal viewing angle
• Easy locking handle locks the display position into place without the use of tools
• Optional IncreLok™ feature offers fi xed tilts at -5°, 0°, 5°, 10° and 15° increments
• Includes Sorted-For-You™ fastener packs for installation to wood studs, concrete and cinder block
• Optional horizontal adjustment of up to 8" (203mm) (depending on display model) for perfect display
placement
• Available in Black or Silver
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 02-18-08 SHEET #: 202-9249-6 04-05-11
