Fujitsu D3003-S1x Handbuch Seite 5

D3003-A/B
DC Plug
COM 1
DVI-I
COM 2
Display Port
2x USB
Mouse
Keyboard
Line IN
Line OUT
External connectors rear
USB - dual channel
1 = VCC C
2 = VCC D
3 = Dat a negativ C
4 = Dat a negative D
5 = Dat a positive C
FANLESS SILEN T DRI VES M UL TIBOOT
Fujitsu Technology Solutions
LAN
2x USB
Speaker
PoE
1
2
6 = Dat a positive D
7 = GND
8 = GND
9 = Key
10 = Not connected
RECOVERY BI O S
Memory Socket
Processor
mSATA
FCH Hudon E1
Buzzer
Battery
PCI

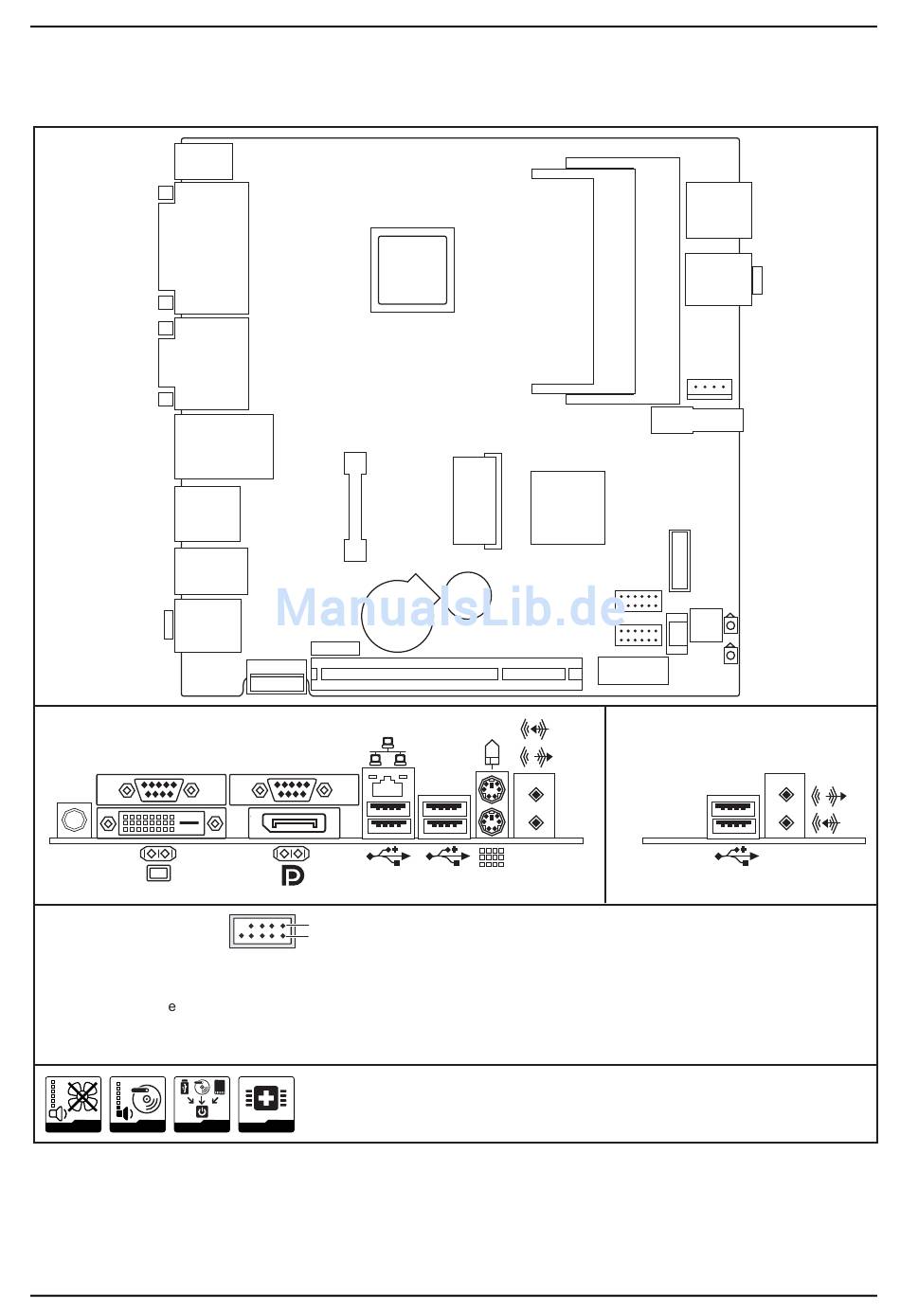

Internal connectors and slots
2x USB
Head OUT
Mic IN
Drive
Power
Intrusion
(A55E)
SATA
Power
USB
Button
RCV
USB
PCIe X1
External connectors front
A26361-D3003-Z330-1-8N19
LED Power
LED HDD
