dirna Bergstrom TRP Dynamic Montageanweisungen Seite 38

TRP Dynamic
EN ES

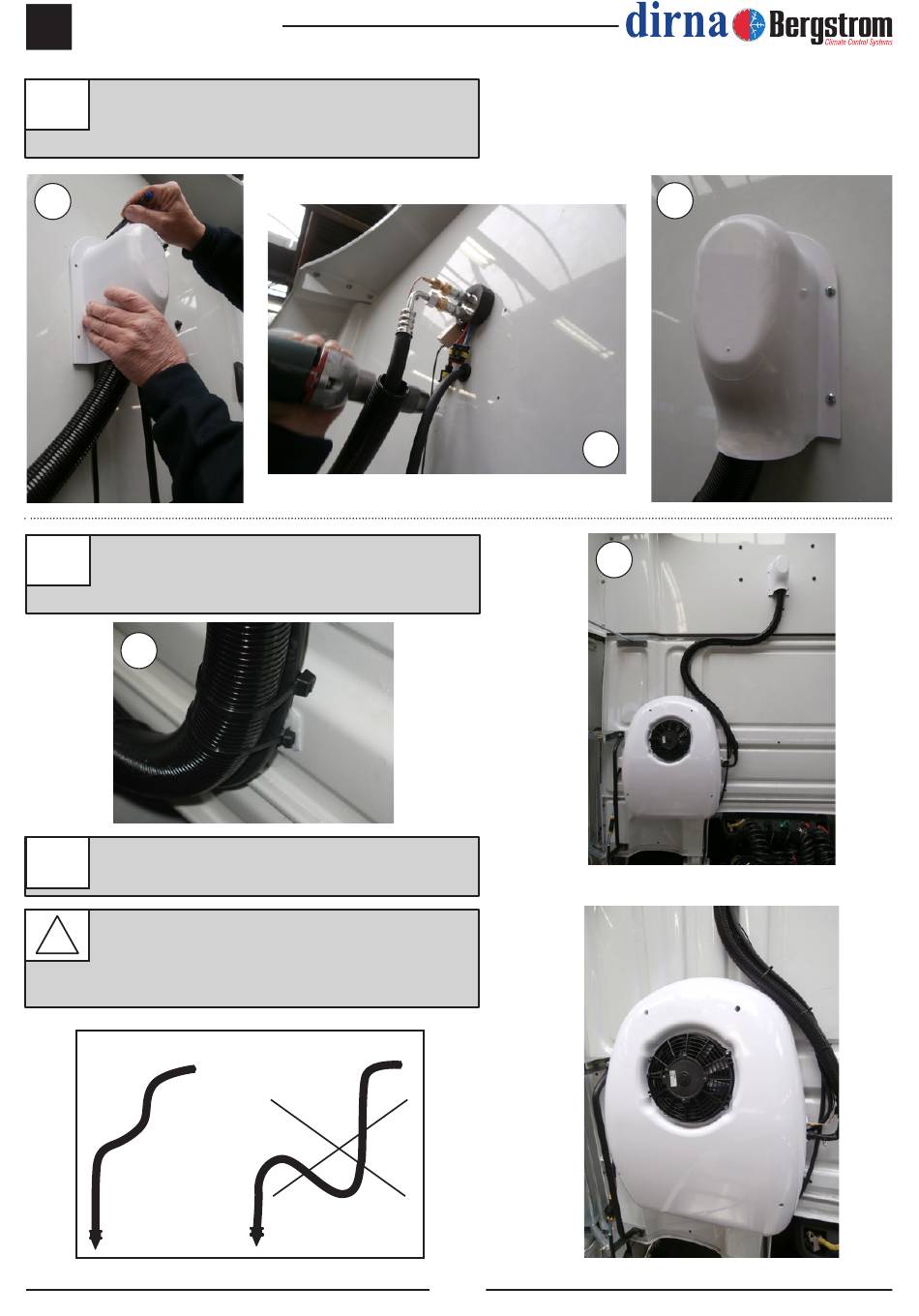

Position the pipe protector with seal; mark
7
and bore at Ø4. Secure with (5) 4.8 x 19
screws.
7
Stick the plastic supports and secure the
8
pipe, cabling and wastewater pipe (clean the
assembly area).
8
Position the drainage valve.
9
IMPORTANT: The wastewater pipe must
!
not be twisted and must be sloped to allow
the correct discharge of the condensation
water.
POSITIONING THE WASTEWATER PIPE
YES NO
38
Air conditioning for vehicles
7
7
8
