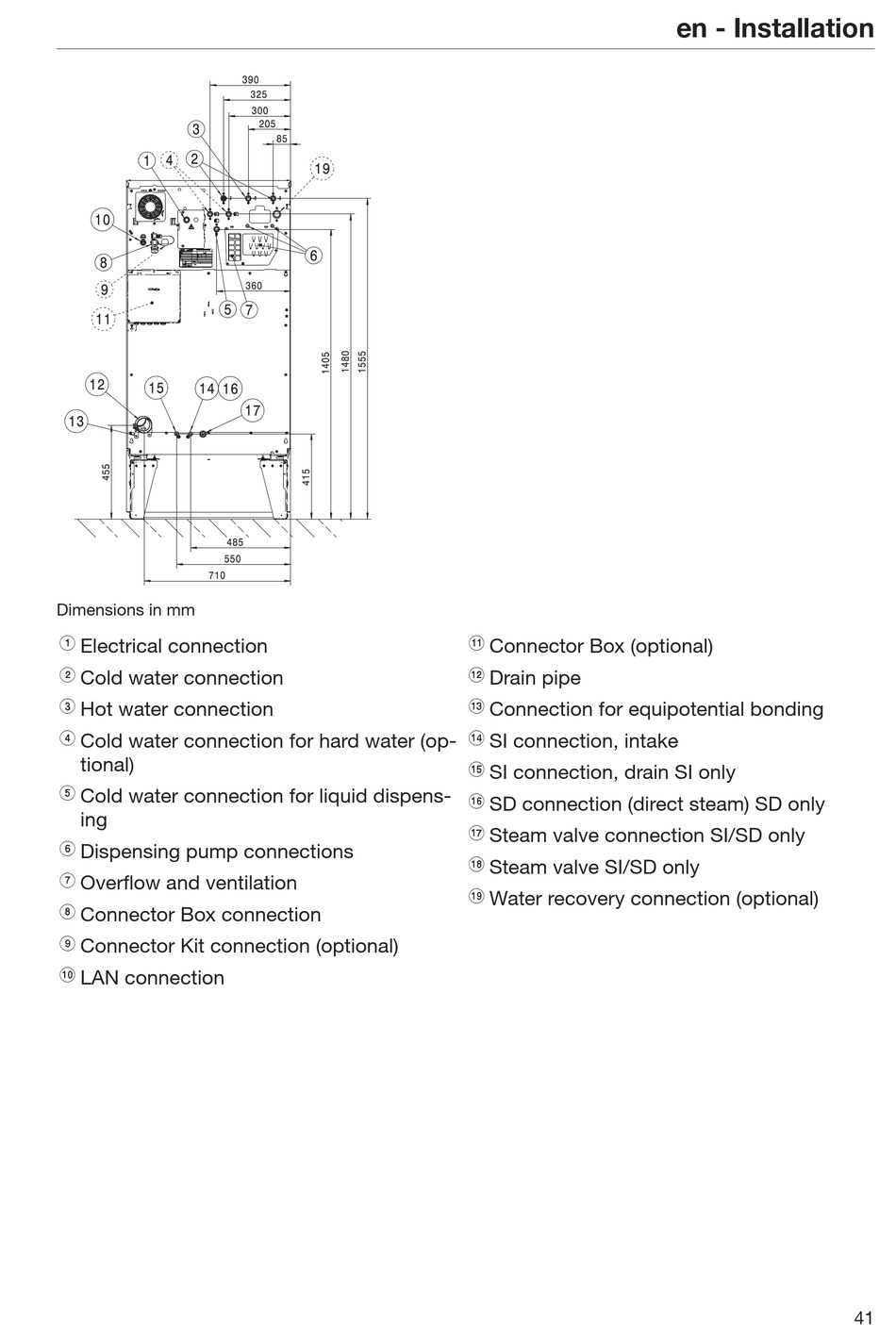

Miele PWM 912 SI Installationsplan Seite 41

Dimensions in mm
a
Electrical connection
b
Cold water connection
c
Hot water connection
d
Cold water connection for hard water (op-
tional)
e
Cold water connection for liquid dispens-
ing
f
Dispensing pump connections
g
Overflow and ventilation
h
Connector Box connection
i
Connector Kit connection (optional)
j
LAN connection
k
Connector Box (optional)
l
Drain pipe
m
Connection for equipotential bonding
n
SI connection, intake
o
SI connection, drain SI only
p
SD connection (direct steam) SD only
q
Steam valve connection SI/SD only
r
Steam valve SI/SD only
s
Water recovery connection (optional)
