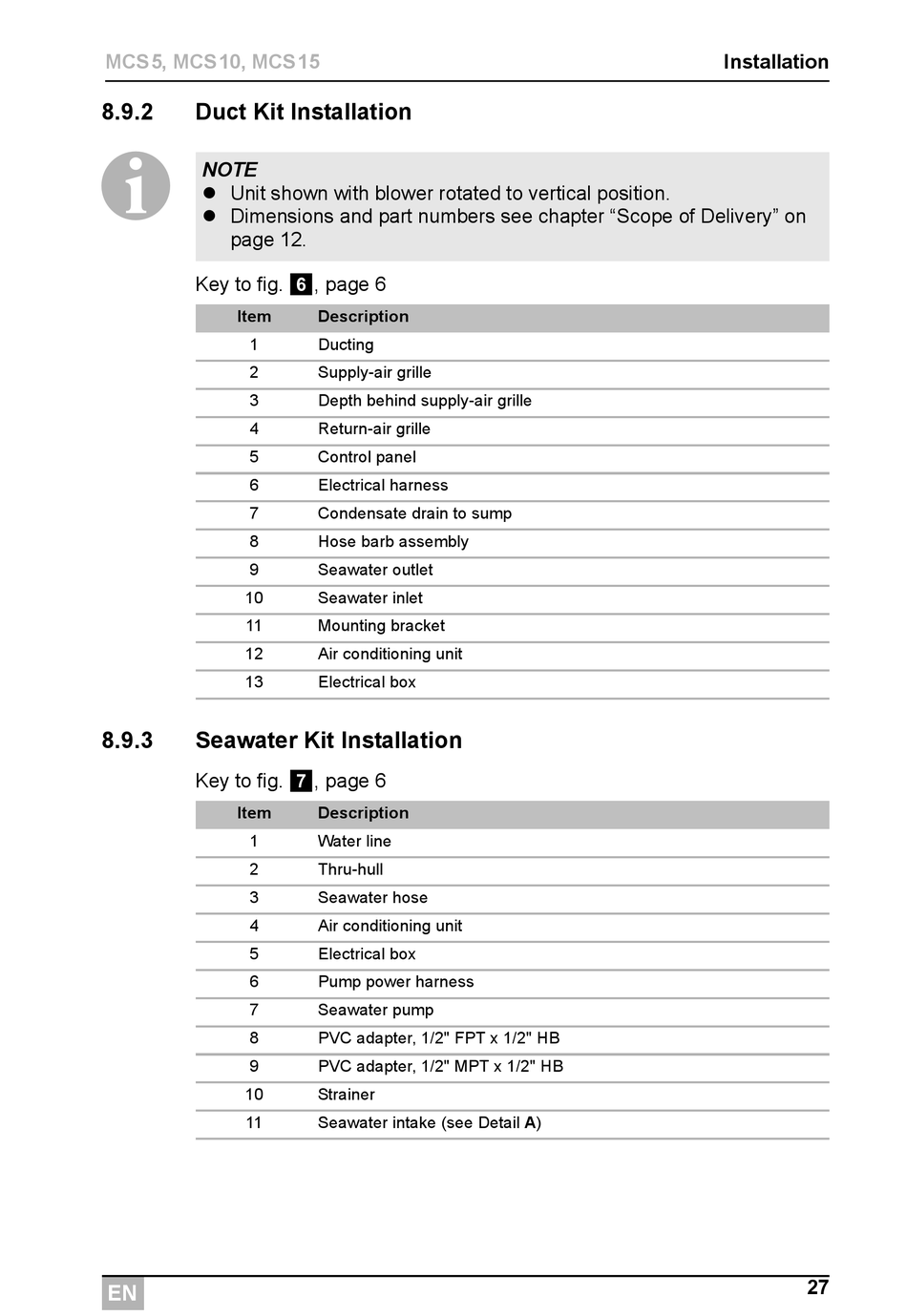

Dometic MCS5 Montageanleitung Seite 27

MCS5, MCS10, MCS15
8.9.2 Duct Kit Installation
I
NOTE
 Unit shown with blower rotated to vertical position.
 Dimensions and part numbers see chapter "Scope of Delivery" on
page 12.
Key to fig. 6, page 6
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
8.9.3 Seawater Kit Installation
Key to fig. 7, page 6
Item
1
2
3
4
5
6
7
8
9
10
11
EN
Description
Ducting
Supply-air grille
Depth behind supply-air grille
Return-air grille
Control panel
Electrical harness
Condensate drain to sump
Hose barb assembly
Seawater outlet
Seawater inlet
Mounting bracket
Air conditioning unit
Electrical box
Description
Water line
Thru-hull
Seawater hose
Air conditioning unit
Electrical box
Pump power harness
Seawater pump
PVC adapter, 1/2" FPT x 1/2" HB
PVC adapter, 1/2" MPT x 1/2" HB
Strainer
Seawater intake (see Detail A)
Installation
