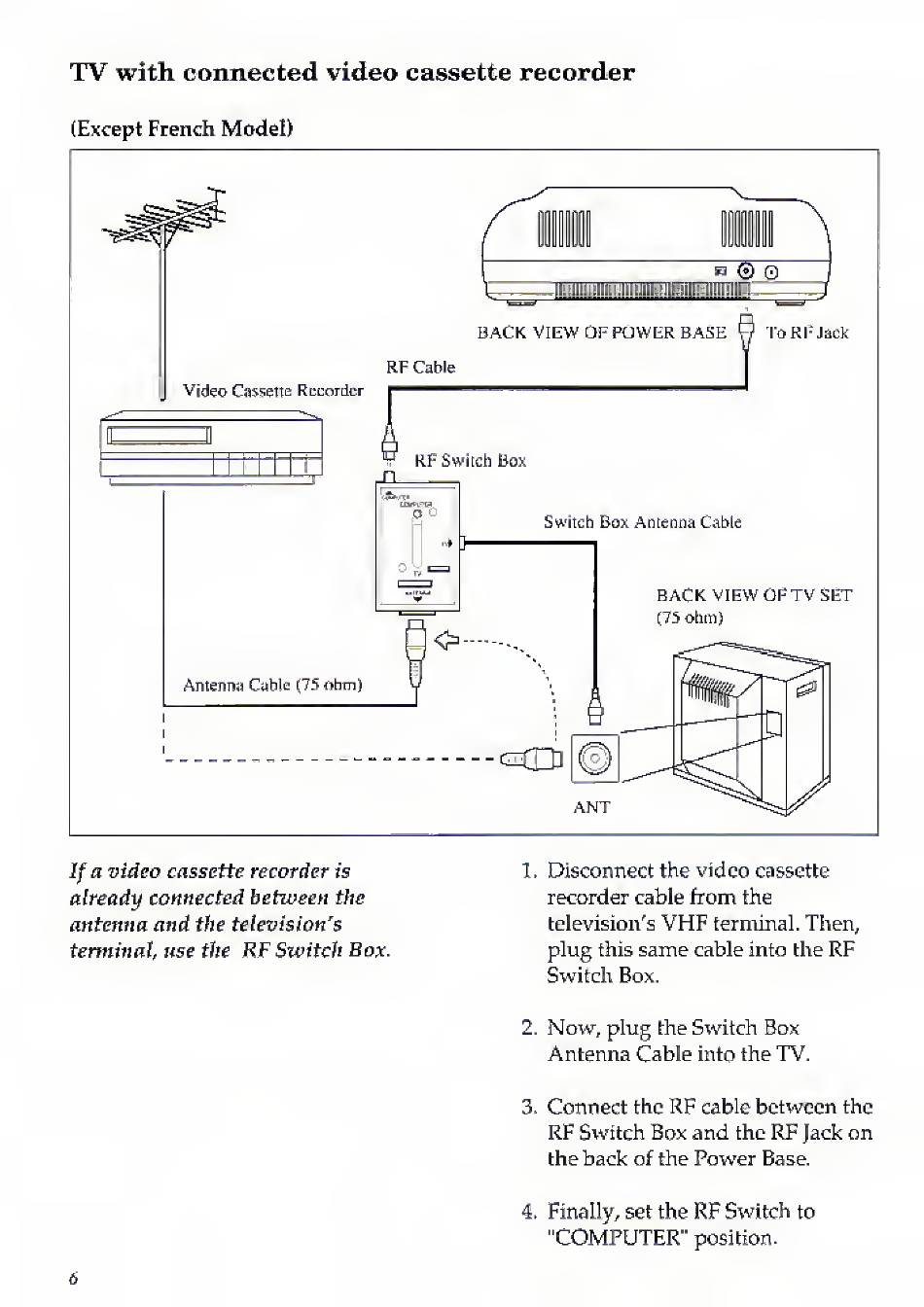

TV
with connected video
cassette
recorder
(Except
French
Model)
"mr::::::
MP
*1
®
BACK VIEW OF
POWER
BASE
\]
To
RF
Jack
RF
Cable
Video
Cassette
Recorder
RF
Switch
Box
•
Switch Box Antenna
Cable
Antenna Cable
(75
ohm)
BACK VIEW OF TV
SET
(75
ohm)
ANT
If
a
video
cassette recorder
is
already connected
between
the
antenna
and
the television's
terminal,
use
the
RF
Switch
Box.
L
Disconnect the video
cassette
recorder cable
from
the
television's
VHF
terminal.
Then,
plug
this
same
cable into the
RF
Switch
Box.
2.
Now,
plug
the
Switch
Box
Antenna
Cable into the
TV.
3.
Connect
the
RF
cable
between
the
RF
Switch
Box and
the
RF
Jack
on
the
back
of the
Power
Base.
4,
Finally/ set
the
RF
Switch
to
"COMPUTER"
position.
